2000 Gal Bendel Pressure Vessel
Other Views - click image for larger view
2000 Gal Bendel Pressure Vessel 2000 Gal Bendel Pressure Vessel 2000 Gal Bendel Pressure Vessel

2000 gal bendel pressure vessel

Stock # 11358
Capacity 2000 Gal

Overview

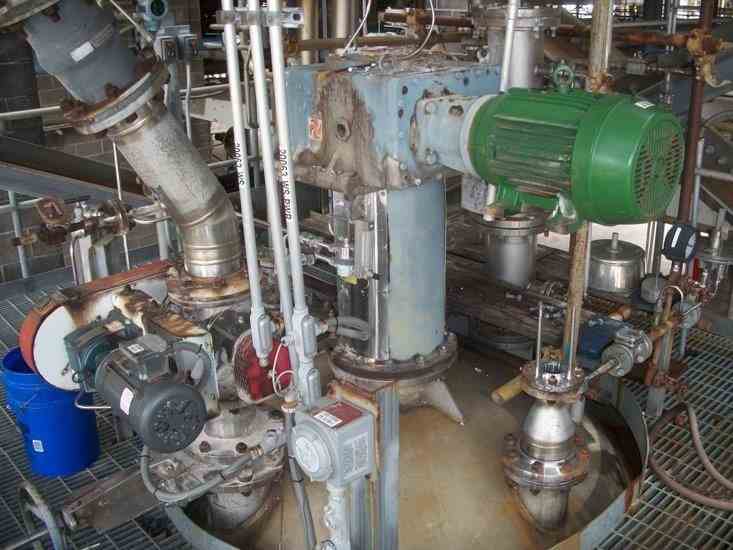

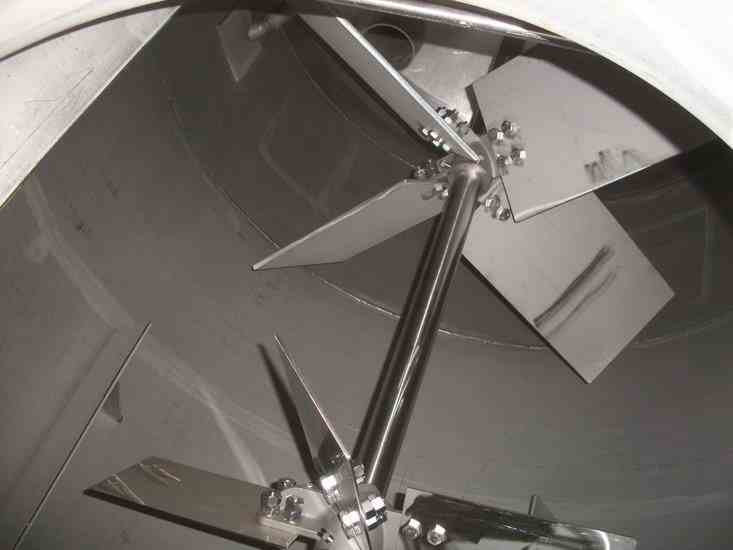

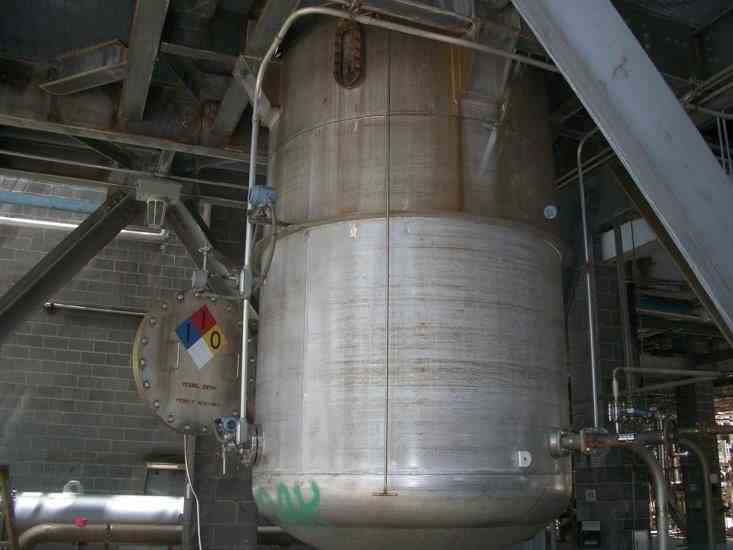

Used Bendel approximately 2,000 gallon 304 stainless steel vertical mix tank. 72” diameter X 106” high straight side. Internal rated 15 PSI @ -20 to 200 degrees F. Welded dished heads. Has middle stiffener ring. National Board# 547, S/N 11920-1/6. Equipped with 3 tier (4) blade each stainless steel agitator powered by 15 HP 3/60/208-230 /460 volt motor. thru Philadelphia model 3855M, 1800 Input / 56 Output, 31.4:1 ratio gearbox. Has (4) internal baffles. (2) 2” and (2) 4” side bottom outlets. 2” center bottom drain. 24” side bottom manway. Top Fittings: (2) 8”, (1) 6”, (1) 4”, (1) 2”, and (1) 12”. Lug mounted. (NOTE: One 8" nozzle is damaged and needs repair to hold rated pressure)

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Bendel
Model
NA
Material
Unknown
Capacity
2000 Gal
Subcategory
