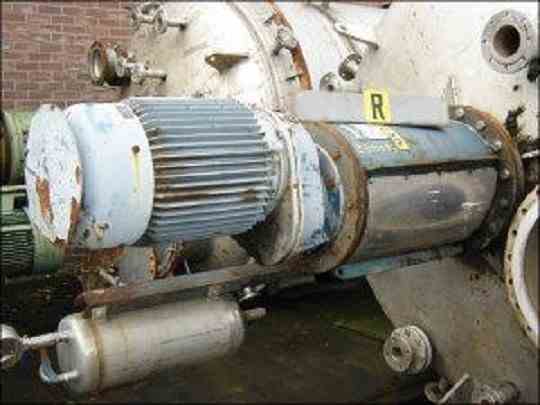

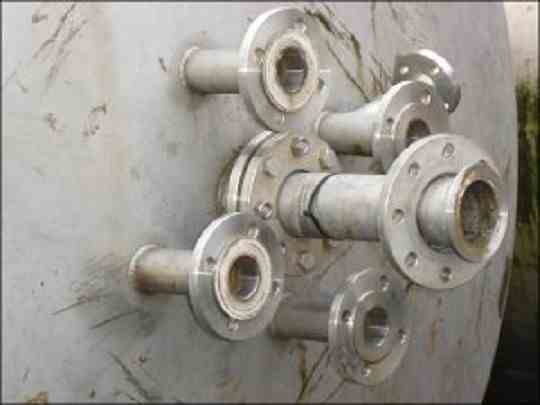

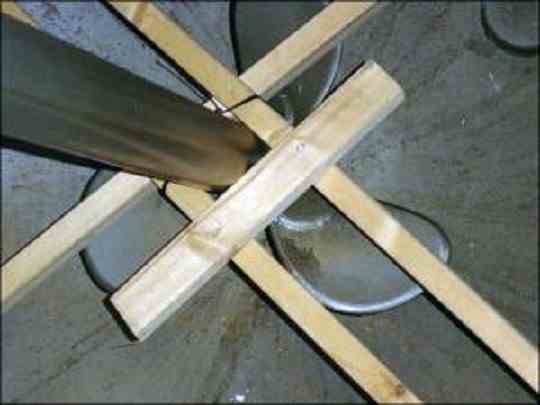

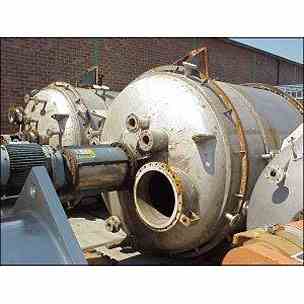

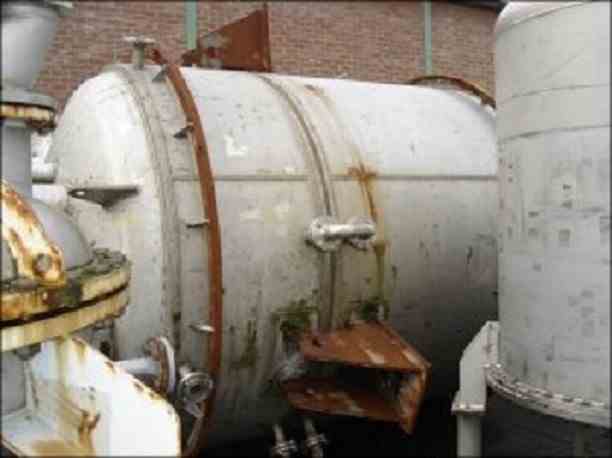

Used 10,900 Liter (2,880 Gallon) Reactor manufactured by Oostendorp, No. 3211-2, Built 1986, Stoomwezen 583799, Material stainless steel (1.4401-316SS). Dia. 2200 x 2800mm, (approx. 87" dia x 110 " straight side), Dished bottom, Dished top side, Manhole Dia. 565mm (22"), Top connections: (6)-50mm (2"), (2)-200mm (8"), (1)-105mm (4"), (1)-40mm (1-1/2"); Outlet: 80mm (3"), Working pressure Vacuum/8 Bar (120PSI), Test pressure 11,2 Bar (168PSI), With conventional jacket,1300 Ltr.(343 Gal), Working pressure 7 Bar (105PSI), Test pressure 11,2 Bar (168 PSI), Max. temperature 200°C., With propeller stirrer Dia. 600 mm (24") (Jongia, NM 90), Motor 18,5 Kw (25HP), 380 Volt, Speed mixing shaft 295 rpm, Floorspace Dia. 3,0 M, Total height 5,1 M.
