30 Cu Ft V-Blender
Other Views - click image for larger view
30 Cu Ft V-Blender

30 cu ft v-blender

Stock # 9380
Capacity 30 Cu Ft

Overview

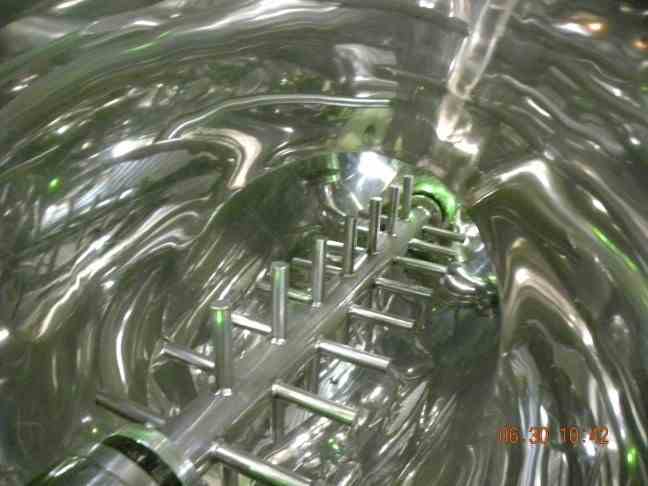

New 30 Cu Ft Working Capacity Stainless Steel Twin Shell Mixer with Intensifier Bar. The shell and frame are constructed of 304 Stainless Steel. Mirror polished 304 S/S mixing vessel & housing. Includes Safety Sensor Gates. Specifications: -Mixer Capacity: 1500 liters. -Total Mixing Volume: 900 Litres. -Maximum Mixing Weight: 630Kg. -Single rotation speed: 12 rpm. -10” Diameter Butterfly Discharge. -Weight: 725 Kg or 1,600 pounds. -Overall Dimensions: 126”L x 63”W x 118”H. -Electrics: Total Power is 5.5KW (mixing motor)+ 3KW (cone rotate power) = 8.5KW, 3Ph/60Hz/220V. -Includes Limited Warranty. Unit built in China. Delivery: 10-12 weeks from receipt of 65% deposit.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Unknown
Model
NA
Material
Unknown
Capacity
30 Cu Ft
