75 Cu Ft Patterson-Kelley SS V-Blender
Other Views - click image for larger view
75 Cu Ft Patterson-Kelley SS V-Blender 75 Cu Ft Patterson-Kelley SS V-Blender 75 Cu Ft Patterson-Kelley SS V-Blender 75 Cu Ft Patterson-Kelley SS V-Blender 75 Cu Ft Patterson-Kelley SS V-Blender

75 cu ft patterson-kelley ss v-blender

Stock # 15562
Capacity 75 Cu Ft

Overview

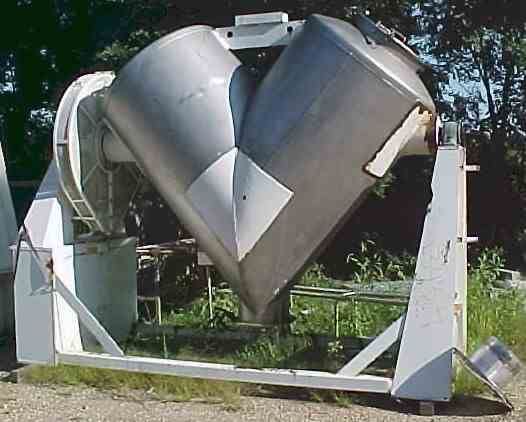

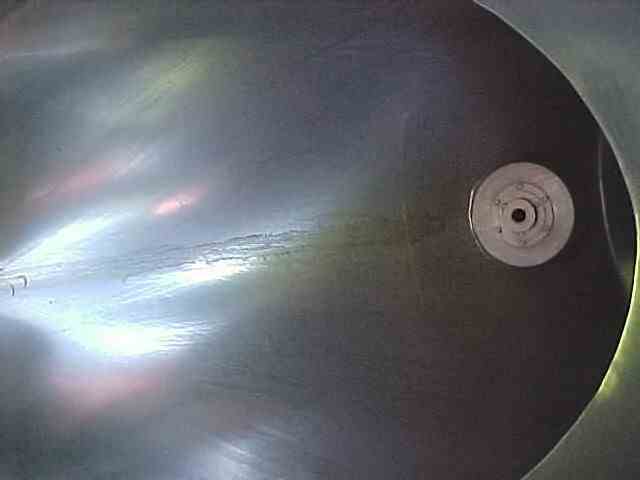

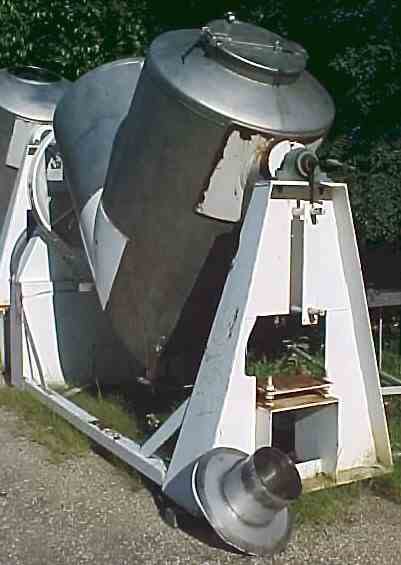

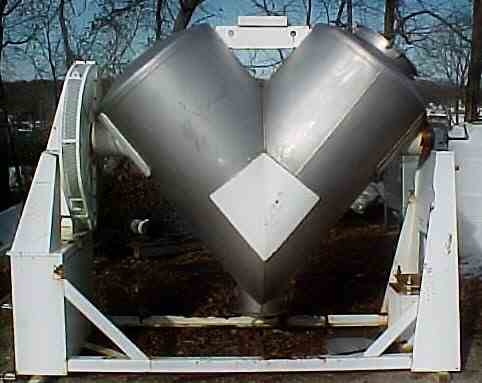

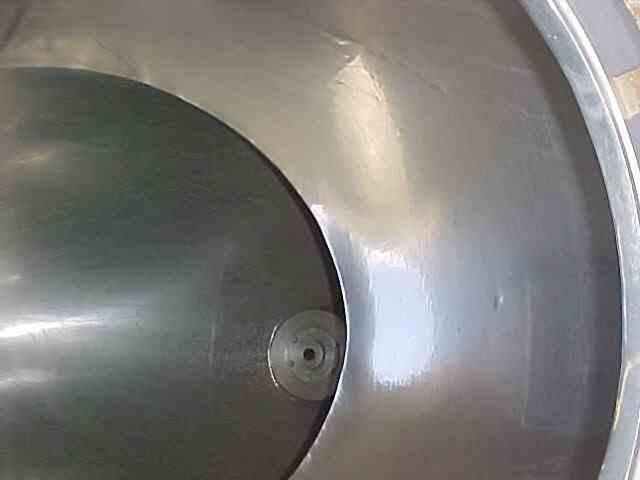

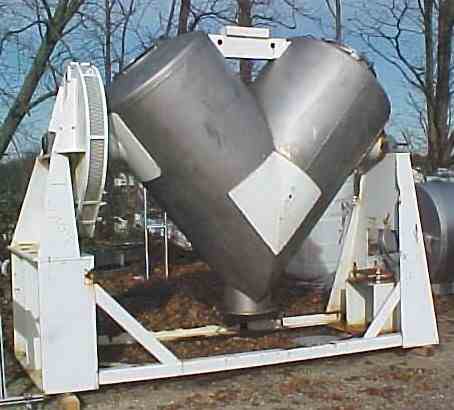

Used Patterson Kelly 75 cubic foot working capacity stainless steel twin shell blender, Serial #228425. Rated for maximum material density of 60 lbs. Per cubic foot, blender is designed to accept liquid solids dispersion bar (not included), internally polished pharmaceutical grade finish with external matt finish on blender shell, shell driven by 7.5 HP motor, 230/460/3 phase voltage, 11/22 amp @ 1750 rpm, motor directly coupled to in line helical 17. 1 to 1 gear reducer by foot bros yielding coshaft rpm of 102 and driving shell with standard bull and spur gear arrangement, drive equipped with warner electric brake, mounted in painted factory carbon steel stand, 16. 5" discharge and 17 and 24" charging ports. 12' wide x 60" x 9' high.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Patterson-Kelley
Model
NA
Material
SS
Capacity
75 Cu Ft
Category
