Used 4372 sq ft stainless steel shell and tube heat exchanger. Manufactured by Southern Heat Exchangers. (514) 430 Stainless steel tubes, 1 1/4” dia x 307” long, rated 160psi @450F. Carbon steel shell rated 305 psi @650F. 321 stainless steel single head. Openings shell (2) 12", (1) 10", (1) 4", tubes (1) 22-1/2". Saddle mounted. NB #12268, Serial #03-407. Built 2005. No Head. Previous use: nitric acid heat train.

USED TITANIUM LIMITED (CANADA) TITANIUM 3010 SQUARE FOOT HORIZONTAL ONE-PASS SHELL AND TUBE HEAT EXCHANGER. TUBES RATED 75 PSI @ 250°F. 3’6? DIAMETER X 20' LONG SHELL RATED 50 PSI @ 250°F. SHELL MATERIAL TI 265.2. TUBE MATERIAL TI 338.2. BUILT 1992. U-1 and U-2 available.

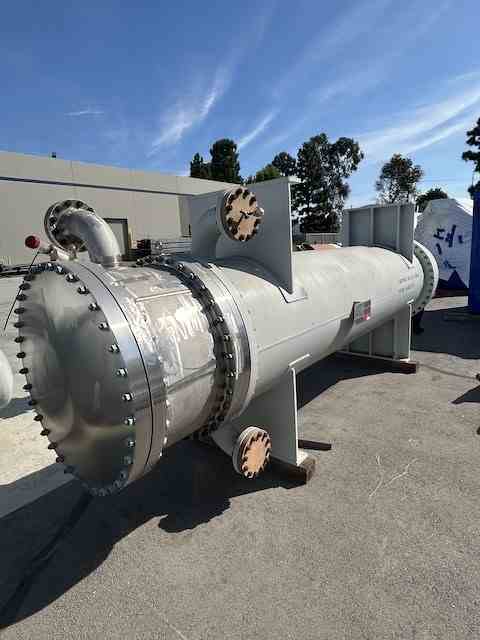

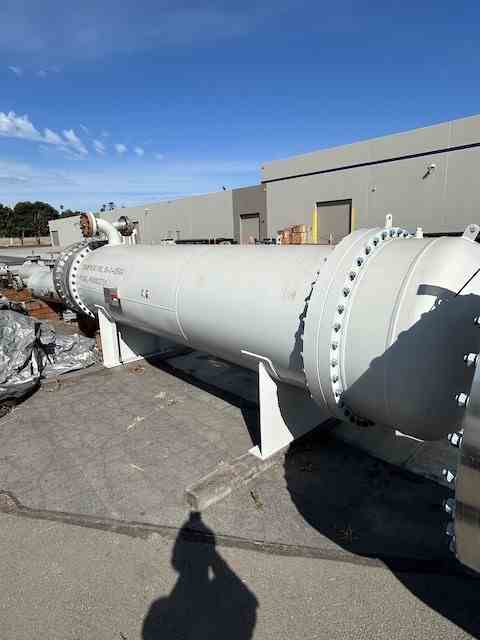

Unused 2836 sq. ft. 316L SS horizontal heat exchanger. Mfg. by Southern Heat Exchanger. 2.1 Design duty (MMBTU/Hr). Carbon Steel Shell:150FV psi @ 375 deg. F. 316L Stainless steel Tubes: 161FV psi @ 375 deg. F. 40" X 180". Serial #22-0251. National Board #16151. Built 2023. Anaerobic Reactor Heat Exchanger. Under Nitrogen Purge

Unused 2836 sq. ft. 316L SS horizontal heat exchanger. Mfg. by Southern Heat Exchanger. 2.1 Design duty (MMBTU/Hr). Carbon Steel Shell:150FV psi @ 375 deg. F. 316L Stainless steel Tubes: 161FV psi @ 375 deg. F. 40" X 180". Serial #22-0252. National Board #16152. Built 2023. Anaerobic Reactor Heat Exchanger. Under Nitrogen Purge

Used 2100 sq. ft. shell and tube heat exchanger. Titanium tubes rated 75 psi @ 225°F. 24" diameter X 25'long carbon steel shell rated 150 psi @ 400°F. Teflon lined heads. Built 1995. S/N 94-504A. NB 8277. Manufactured by Southern Heat Exchanger.

Used 1,000 sq ft Stainless Steel Shell and Tube Heat Exchanger. Manufactured by Southern Heat Exchanger Corp. Shell rated 75 psi @ 250°F, (102) 0.75" 316L tubes rated 75 psi @ 250°F. 16" dia. x 34'6" long. National Board #3540, Serial #82-115, Built 1982.

Used 561 Sq. Ft. Southern Heat Exchanger Corp. 304L Stainless Steel Horizontal Shell & Tube Heat Exchanger. Shell rated 100 PSI @ 200 deg F; Tube side rated 85 PSI @ 150 deg F. (143) .75" dia straight 304 L SS Tubes with 20' length; 14' x 22' 5.75", 3/16" shell. Serial # 78-117; National Board # 2721; Built 1978. Nozzles: Shell side: (2) - 3" Tube side: (2) - 3". Estimated Weight: 3,400 lbs. Note: Failed Hydro Test - needs repair.

Unused 327 sq. ft. 316L Stainless steel horizontal heat exchanger. 1.13 Design duty (MMBTU/Hr). Mfg. by Southern Heat Exchanger. CS Shell: 150FV psi @ 375 deg. F. 316L Stainless steel Tubes: 161 psi @ 375 deg. F. 20" X 180". Serial # 22-0249. National Board #16149. Built 2023. Aerobic Reactor Heat Exchanger. Under Nitrogen Purge

Unused 327 sq. ft. 316L Stainless steel horizontal heat exchanger. 1.13 Design duty (MMBTU/Hr). Mfg. by Southern Heat Exchanger. CS Shell: 150FV psi @ 375 deg. F. 316L Stainless steel Tubes: 161 psi @ 375 deg. F. 20" X 180". Serial # 22-0250. National Board #16150. Built 2023. Aerobic Reactor Heat Exchanger. Under Nitrogen Purge
