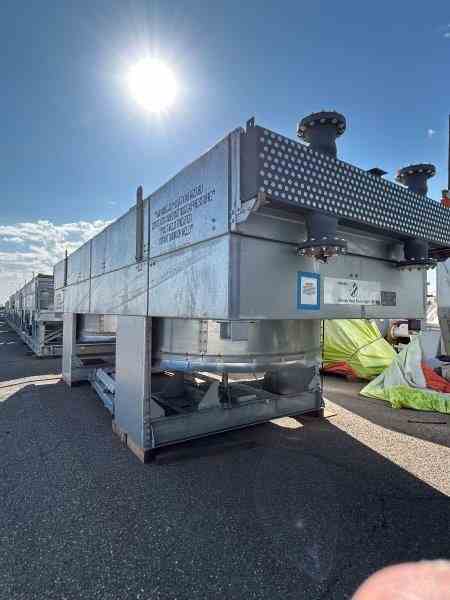

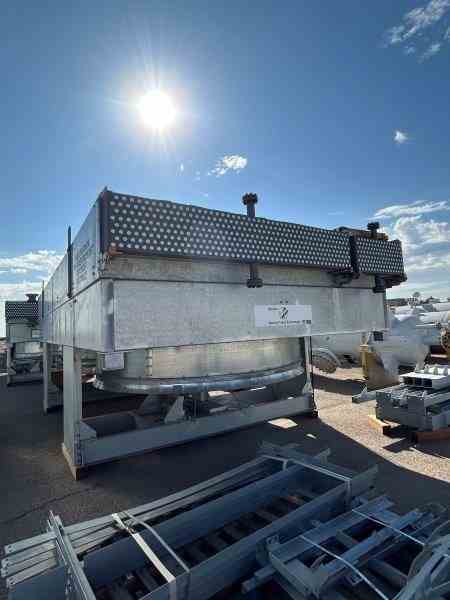

Unused 59407 sq ft finfan heat exchanger, two different bundles. Manufactured by Kelvion Thermal Solutions. Carbon Steel tubes and header. With combined 3871 Bare sq. ft. and 81214 Extended sq. ft. 2857 bare sq. ft. 59,407 extended sq. ft. 30'0" tube length. 125 FV Design Pressure @385 deg. F Design Temperature. With (2) 30 hp fans. (1) bundle,(8) rows, 2 passes. 372-1"od x .083"mw. (2)8" inlets and (2)8"outlets. Built 2023.

Unused 59407 sq ft finfan heat exchanger, two different bundles. Carbon steel tubes and header. Manufactured by Kelvion Thermal Solutions. With combined 3871 Bare sq. ft. and 81214 Extended sq. ft. 2857 bare sq. ft. 59,407 extended sq. ft. 30'0" tube length. 125 FV Design Pressure @385 deg. F Design Temperature. With (2) 30 hp fans. (1) bundle,(8) rows, 2 passes. 372-1"od x .083"mw. (2)8" inlets and (2)8"outlets. Built 2023.

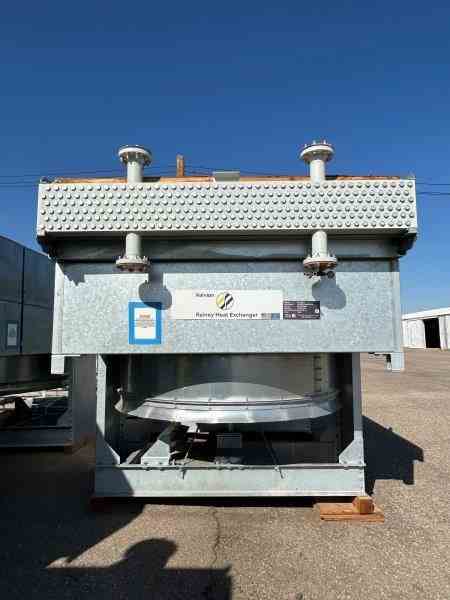

Unused 31917 sq ft finfan carbon steel heat exchanger. Manufactured by Kelvion Thermal Solutions. 1484 bare sq ft. 8.24 MMBTU/hr design duty. 22'0" tube length. Rated 200psi/FV @300F. (2) 15 hp fans. 264-1"od x .095"mw. Model #1-1022T096. (2)4" inlets and (2)4" outlets. Dimensions: 23'0" l x 9'6" w x 11'6" h, 22,200 lbs weight. Designed as HGU Condensate Air Cooler (for HGU Feed). Under Nitrogen Purge. Built 2023.

Unused 2976 sq ft (276m2) K°Flex 316Ti Stainless Steel Shell and Tube plate exchanger. Mfg Kelvion GmbH. 316Ti Stainless Steel Grade 1.4571. Tube side rated 1 bar @550 C (14.5 PSI@ 1022F), shell rated 7 bar @550 C (101PSI@1022F). Overall 4490mm x 400mm x 1840mm. Dry weight 8000 kg. Serial #654-15-001. Built 2018.

Unused 1280 sq ft (119m2) K°Flex 316Ti Stainless Steel Shell and Tube plate exchanger. Mfg Kelvion GmbH. Tube side rated 1 bar @550 C (14.5 PSI@ 1022F), shell rated 7 bar @550 C (101PSI@1022F). Overall 4490mm x 400mm x 980mm. Dry weight 4300 kg. Serial #654-15-002. Built 2018.

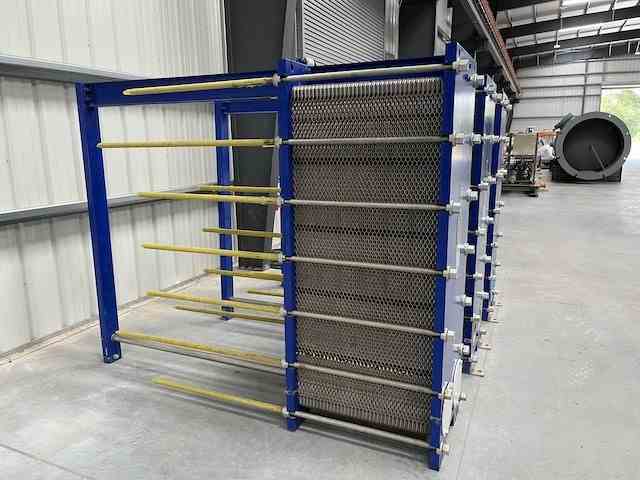

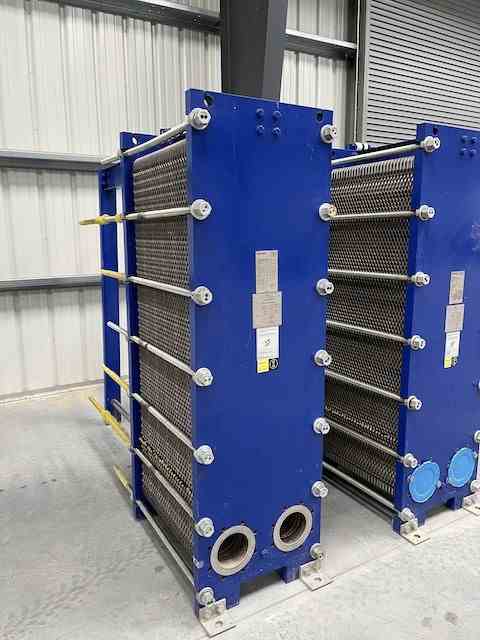

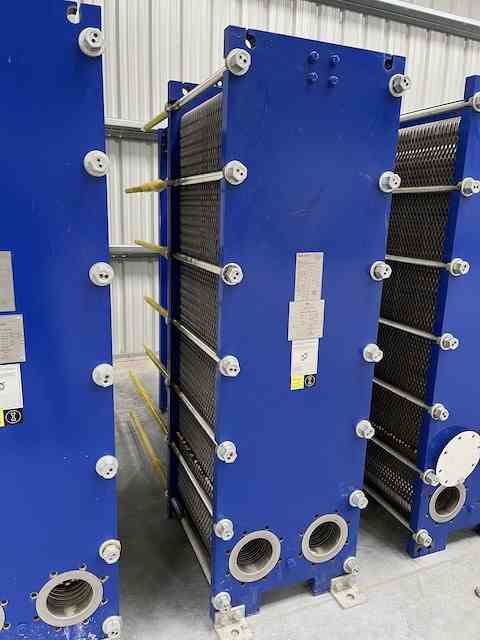

Used 596 sq ft 316L Stainless Steel Plate Heat Exchanger. Manufactured by Kelvion. Model #NF150L BYF-150. (73) 1mm thick plates MAWP 145 psi @ 230F. NBR gasket material. National Board #505. Serial #152/10111. Built 2022.

Used 495 sq ft 316L Stainless Steel Plate Heat Exchanger. Crafted by Kelvion. Model #NF150LBA150. (61) 1mm thick plates Rated 145 psig @ 230 F. NBR gasket material. Serial #152-10109. National Board #513. Built 2022

Used 411 sq ft 316L Stainless Steel Plate Heat Exchanger. Manufactured by Kelvion. Model #NF150LBA150. (51) 1mm thick plates MAWP 145 psig @ 230 F. NBR gasket material. Serial #152/10113. National Board #498. Built 2022

Used Kelvion Rainey air cooled heat exchanger. Manufactured by Kelvion. Serial #R-10720-1-A. Built 2017
