Inverting Filter Centrifuges for Sale

Phoenix Equipment is a global buyer and seller of new, used and refurbished Basket Centrifuges. Currently, Phoenix Equipment has a large inventory of Top Load and Bottom Load Basket Centrifuges from manufacturers such as: Western States, Tolhurst, Ametek, Sharples, Rousselet, Robatel, Tanabe, Ketema, and many others.

3 Results
Show:
Sort:

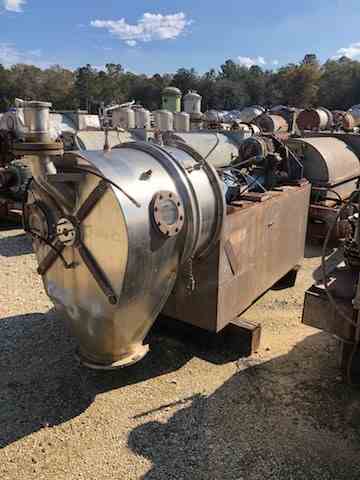

600 MM Heinkel HF600.1 Inverting Filter Centrifuge
600 MM Heinkel HF600.1 Inverting Filter Centrifuge
Stock # 21067 | Capacity 600 MM

Used Heinkel Type HF600.1 Stainless Steel Inverting Filter Basket Centrifuge. 600 mm Basket. Drum Speed Max 1940 RPM. Centrifugal Acceleration Max 1255 (g). Filling Quantity Max 521/65 kg. Allen Bradley Panelview Plus 1250 Control. BPE Burt Liquid Processing System with Control Panel & (4) Hayard PMS15 Valve Controllers. Serial #1308/11. Built 2003.

Add to Quote View details
300 MM Heinkel HF300 Inverting Filter Centrifuge
300 MM Heinkel HF300 Inverting Filter Centrifuge
Stock # 21856 | Capacity 300 MM

Used 300mm Dia 316 Stainless Steel Inverting Filter centrifuge. Manufactured by Heinkel. Model HF300. 300 mm (12") basket inside diameter. 2 cubic feet nominal basket volume. 1 sq ft basket area. Includes hydraulic pack. Serial #1031/12. Built in 1990.

Add to Quote View details
280 MM Heinkel HF-300 Inverting Filter Centrifuge
280 MM Heinkel HF-300 Inverting Filter Centrifuge
Stock # 8319 | Capacity 280 MM

Used Heinkel Hastelloy C4 Inverting Filter Centrifuge. Type HF-300. Serial# 1028/12. The inverting filter centrifuge is designed to dewater and dry in one process. This centrifuge uses a filter medium which catches the residual material. Then the filter is inverted to discharge the dried residual material through the end. A video link is available for process description. The bowl is driven by a 7.5 HP hydraulic motor and turns at 3460 rpm to provide 1500 xg of g force. The bowl diameter is 11.81". The filter area is 1.07 sq ft. The bowl is capable of handling 1.7 gallon of product. Overall dimensions of the unit 80"l x 36.5" w x 42" h. Requires 460 vac 3 ph electrical source. Shipping weight is 5000 lbs. Unit may be Unused.

Add to Quote View details
600 MM Heinkel HF600.1 Inverting Filter Centrifuge
600 MM Heinkel HF600.1 Inverting Filter Centrifuge
Stock # 21067
Capacity 600 MM

Used Heinkel Type HF600.1 Stainless Steel Inverting Filter Basket Centrifuge. 600 mm Basket. Drum Speed Max 1940 RPM. Centrifugal Acceleration Max 1255 (g). Filling Quantity Max 521/65 kg. Allen Bradley Panelview Plus 1250 Control. BPE Burt Liquid Processing System with Control Panel & (4) Hayard PMS15 Valve Controllers. Serial #1308/11. Built 2003.

Add to Quote View details
300 MM Heinkel HF300 Inverting Filter Centrifuge
300 MM Heinkel HF300 Inverting Filter Centrifuge
Stock # 21856
Capacity 300 MM

Used 300mm Dia 316 Stainless Steel Inverting Filter centrifuge. Manufactured by Heinkel. Model HF300. 300 mm (12") basket inside diameter. 2 cubic feet nominal basket volume. 1 sq ft basket area. Includes hydraulic pack. Serial #1031/12. Built in 1990.

Add to Quote View details
280 MM Heinkel HF-300 Inverting Filter Centrifuge
280 MM Heinkel HF-300 Inverting Filter Centrifuge
Stock # 8319
Capacity 280 MM

Used Heinkel Hastelloy C4 Inverting Filter Centrifuge. Type HF-300. Serial# 1028/12. The inverting filter centrifuge is designed to dewater and dry in one process. This centrifuge uses a filter medium which catches the residual material. Then the filter is inverted to discharge the dried residual material through the end. A video link is available for process description. The bowl is driven by a 7.5 HP hydraulic motor and turns at 3460 rpm to provide 1500 xg of g force. The bowl diameter is 11.81". The filter area is 1.07 sq ft. The bowl is capable of handling 1.7 gallon of product. Overall dimensions of the unit 80"l x 36.5" w x 42" h. Requires 460 vac 3 ph electrical source. Shipping weight is 5000 lbs. Unit may be Unused.

Add to Quote View details
3 Results
Show:
Sort:

Buying and Selling Unused, Used and Reconditioned Basket Centrifuges

Phoenix Equipment is your one-stop shop for top-of-the-line basket centrifuges. We offer a wide selection of top load and bottom load models from industry-leading manufacturers like Western States, Tolhurst, Ketema, Ametek, Tanabe, Sharples, and Rousselet/Robatel.



How Basket Centrifuges Work

Basket centrifuges utilize centrifugal force to separate liquids from solids. Here's a simplified breakdown of the process:

  1. Feed Introduction: The liquid mixture (slurry) is poured into the rotating basket.
  2. Separation by Centrifugal Force: As the basket spins at high speeds, centrifugal force pushes solids outward, collecting them on the basket's inner wall.
  3. Clarified Liquid Collection: The clarified liquid (without solids) accumulates inside the centrifuge and exits through a designated outlet.
  4. Solid Discharge: When the basket becomes full, solids can be emptied manually or automatically (depending on the model and the consistency of the solids).



Phoenix Equipment: Your Basket Centrifuge Experts

At Phoenix Equipment, we offer a diverse range of basket centrifuges to suit your specific needs. Our selection includes:

  • Durable Materials: 304 and 316L stainless steel for exceptional corrosion resistance.
  • Hastelloy Basket Centrifuges: For challenging applications requiring superior chemical resistance.



Get a Quote Today!

Let our specialists help you find the perfect basket centrifuge for your application. To get a free, no obligation quote, add all the equipment you want pricing for to your quote cart, and fill out our quick and easy quote form to get started.

Fill out our quick and easy quote form for more information about our Basket Centrifuges inventory.
