Paddle Mixers for Sale

Used 400 Cu Ft Jacketed carbon steel paddle mixer. Manufactured by BEPEX. Model CRUJ-400. Jacket MAWP 190SPI @385F. internal MAWP 15PSI@385F. 75HP motor with chain and sprocket drive. Leg Mounted. Serial #56000511C. Built 1986.

Used 200 Cu. Ft. Sanitary Stainless Steel Paddle Blender. Manufactured by Marion. Model SPY-144. Mixing Chamber: 144" L x 55-1/2" W x 80" Deep. 12" x 22" outlet with slide gate actuated closure. 75 HP Motor, 1770 RPM, 460 Volts, 3 Phase, into gear box. into gear box. Overall Dims. Approx. 186" L x 68" W x 107" H. Mounted on Stainless Legs. Serial #90077. Last used in Sanitary Food Plant.

Used 170 Cu Ft Stainless Steel jacketed paddle mixer. Manufactured by Mepaco. Model 170. Dual-shaft paddle agitators. Hydraulic Dual end discharges. Glycol Jacket. Control panel. (4) Leg mounted. Serial #R-1045-2.

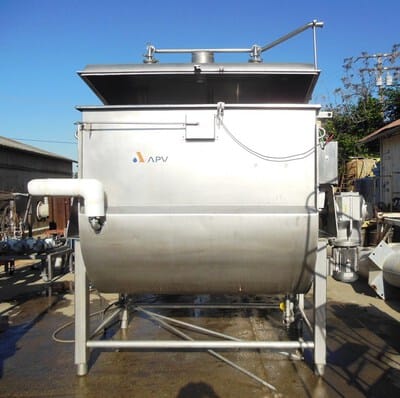

Used APV Crepaco Paddle Mixer, Model FB cooker/blender, approximately 120 cubic feet capacity, stainless steel construction. Unit has jacketed U-shape trough, measuring 78" long x 60" wide x 56" deep with one-piece lift cover. Jacket is rated for 70 PSI at 350 degrees Fahrenheit. Includes scrape surface blade agitation with flat bars on single 3.50" diameter shaft. Driven by 10 HP, 230/460 Volt, 1740 RPM drive. Mixing chamber includes 8" diameter top inlet and 4" diameter bottom side discharge. Manufactured in 1999, serial number K2535. Good condition. Last used in food operation.

Used John Lentz Co jacketed stainless steel 20-cubic foot paddle mixer. Chamber measures 38" long x 30" wide x 34" deep, paddles are mounted on common shaft, less motor and motor flange attachment, and stand.

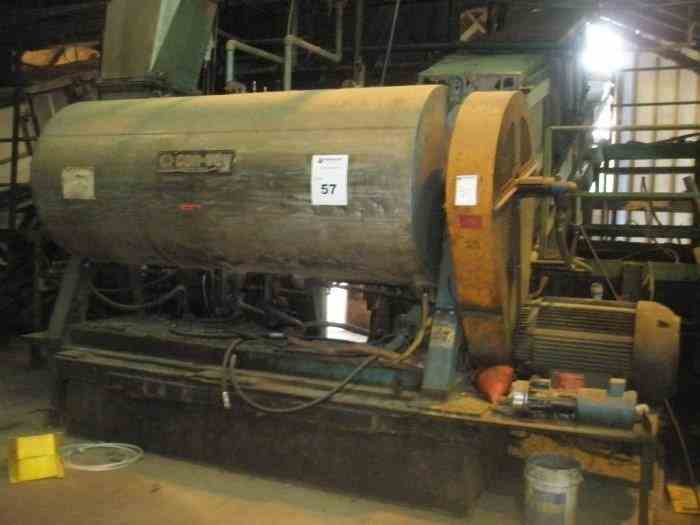

Used Continuous Paddle Mixer, approx. 100 cu. ft. capacity, jacketed chamber, measures 4' diameter x 9' long, stainless steel chamber with stainless steel paddles. Includes (4) rows paddles, (26) paddles total, 10" x 5" x 1-3/4" thick. Paddles are fixed to 6" diameter cored center shaft for heating, mild steel shaft. Driven by 125 HP, 1785 RPM, 230/460V, 3/60Hz motor thru V-belt drive. Includes rotary steam joint & hydraulic ram to open/close front section of mixing chamber. Manufactured by Con-Vey systems. Previously mixing wood fiber and resin together. Paddles rotate in counter clockwise rotation. Most paddles are at 40-45 degree angle to convey product towards end, end paddles are turned to 0-10 degree to push material out back on right hand side of blender. In good working condition when taken out of service. (Qty - 2 available)

Used 100 cu ft Littleford 316 Stainless Steel Paddle Mixer with High Speed Continuous Processor. 4’ Dia. x 10’ Length, 16" X 16" Bottom End Discharge, 21 1/2" X 21 1/2" Top Feed. Jacket rated for 50 PSIG @ 320F. Adjustable Mixing and Densification zones, 10” Dia. Shaft with Paddles and Pins. 350 HP motor. Model # CB100, Built 1993.

Used 2000 liter (70 Cu Ft) Jacketed Paddle Mixer. Manufactured by Draiswerke GmbH Mannheim (Germany). Model T-2000SM Powder Mixer. MAWP 6 bar @165C. 500mm x 400mm inspection hatch. 80mm Top inlet. 300mm bottom discharge. 16/24 kW motor. Includes Buchar filter with (2) filter cartridges, filter transport trolley. Serial #51989. Built 1985.

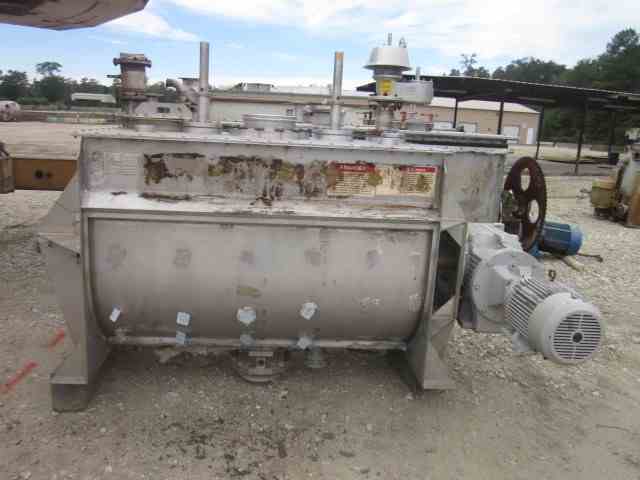

Used 60 Cu Ft 304L Stainless Steel Double Paddle Blender. Mfg by American Process (div. Eirich Machine). Sanitary Polished 304LSS. 20HP Motor. Twin Paddles. Bottom Discharge. Built 2009.

Used American Process Systems Paddle Blender model FZM-53 (53 Cu.Ft./1500 Liter) Twin Shaft Fluidized Zone Mixer/Paddle blender. 304 Stainless Steel. 30 HP 230/460 volt motor. Mixer paddles are 25 RPM. Includes Control Panel. Last used in a sanitary application in pharmaceutical plant. As per American Process Systems, Fluidized Zone Mixers, provide quick yet gentle blending, short cycles, low operating costs, minimal product degradation and one of the highest production capacities of any other mixer type. Unit can come with Drum Dumper and mezzanine structure for additional cost.

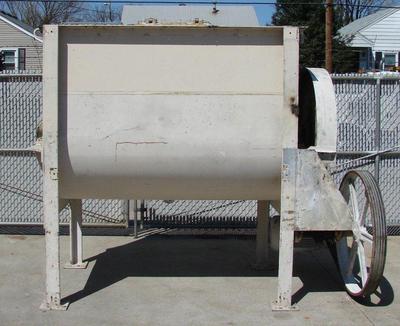

Used 50 cu ft carbon steel paddle blender. 20 HP drive through gear reducer. Closed top with 20" x 20" hinged hatch. Outer ribbon is 40" in diameter with a 3" diameter shaft. Mixing chamber is 72" long x 40" wide x 53" deep for a total volume of 80 cu ft. Overall Height with legs is 82". Has a 3.5" center discharge. Last mixing 4500 lbs of product. Requires 230/460V, 3 ph electrical supply.

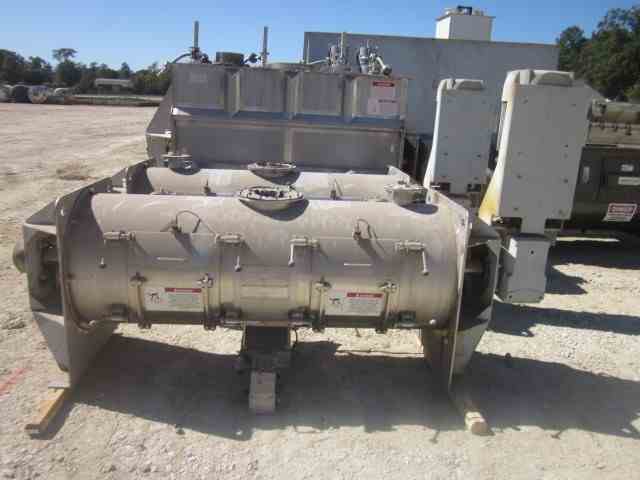

Used 50 Cu Ft Stainless Steel Double Paddle Blender. Mfg American Process. Sanitary Polished 304L Stainless Steel contact parts. ATM @212F. 20HP Motor. Loss of weight hopper. Built 2009. (2) Available.

Unused 1400L 316 Stainless Steel Paddle Mixer with choppers. Mfg Wamgroup. 100HP Main Motor with (4) 7.5HP chopper motors. Weight 2778 kg. Designed for Dog Feed and cosmetics. Serial #01WB110022927.

Used 44 Cu Ft American Process (div Eirich Machines) Jacketed Paddle Blender. CS Shell Rated 200PSI@400F. Jacket rated 125PSI/FV@400F. 50 HP Motor. Serial #8830-USA. National Board #98. Built 2009. (Qty 2 available)

Used American Process Systems Forberg Fluidized Zone Mixer, Model FZM-35, 35 Cubic Feet Working Capacity, 304 Stainless Steel. Non-jacketed chamber approximate 58" long x 67" wide. (2) 4" Diameter shafts with (16) paddles per shaft, paddles 11-9/16" wide x 3/8" thick welded to 1-1/2" diameter posts. Driven by 30 HP, 3/60/208-230/460 volt, 1760 rpm motor with 30.05:1 gearbox ratio. (2) 20" x 20" side access doors, (2) 9" x 57" Bombay door style outlets. Includes stainless steel stand, bag dump station. Serial# F1041. Built 1995. Last use: Cereal.

Used 30 Cu Ft Stainless Steel Paddle blender. Manufactured by Marion. Model SPS-3648. 10HP motor. Overall 8'2" x 4'3" x 4'4" with 8" Center bottom Outlet. Serial #11004. Last use Seasoning plant.

Used 26 Cu Ft American Process Fluidized Zone Twin Shaft Mixer. Model FZM26S. Stainless steel construction. 52" x 39.5" mixing chamber, dual shafts driven by approximately 15 hp motor. Serial# 4741. Built 1997.

Used 25 cu. ft. Process Engineering Paddle Blender, Model 1060245, stainless steel construction, 28" wide x 48" long trough, chain and sprocket driven with 2 HP 230/460 volt drive, (2) 3" diameter end discharges one on each end, with 2.5" Sine Pump, Model SPS-35.

Used 24 Cu Ft Stainless Paddle Mixer. Mfg American Process. Model TD24. 304 Stainless Steel Sanitary. 30"D x 84"L chamber. Top charge ports, (2) side access doors. 30 HP Motor. Built 1995.

Used 11 cu ft 316 Stainless Steel high speed paddle blender with bidirectional auger. Manufactured by Scott Equipment Co. Model HSB1696SS. 16"D x 96"L tube. 30HP motor 600RPM. 6" Solid Shaft with (60) beater blades. (3) 8" x 32" side doors. Serial #1607199.

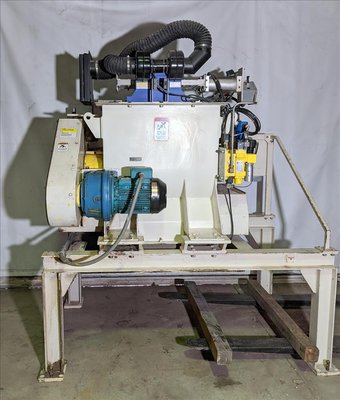

Used 4.2 cu ft Forberg Fluidized Zone Twin Shaft Mixer. Manufactured by A&J Mixing Specialist. Model F120C. Carbon Steel. Minimum volume 48 liters, maximum volume 168 liters. Trough 28-1/2"L x 33"W x 24" Deep. 3 hp, 3/60/230/460 volt, 1740 rpm motor thru Renold gearbox. 30" diameter discharge ring. 25" Discharge height. 6" Diameter top inlet with slide gate valve. Air operated bombay discharge doors. Includes Foremost top mounted receiver hopper. Serial # 91103.

Used 3 Cu ft Stainless Steel continuous paddle mixer. Manufactured by Marion Mixers. Model C1254. Trough 54"L x 12"W x 16"D. Stainless Steel Jacket rated 150PSIG@400F. (12) Bolt-on mixing paddles. 6" Discharge with operated gate. 2HP Motor. Past use polymer processing.

Used approx. 1 Cu.Ft Marion Type Paddle Mixer, Stainless steel. 12" wide X 14" long X 16" deep. Safety grate on top. Hinged top cover. 1/2 HP 3 phase 60 cycle 230/460 volt, 1700 rpm motor with Sew Eurodrive reducer. Center bottom discharge. Mounted with legs.
