Freeze concentration is an advanced technique used to concentrate liquids by freezing. It’s widely appreciated in industries where preserving the original quality of products is essential, such as in food processing, pharmaceuticals, and environmental management.

1. Freezing: The Starting Point

The process begins by cooling the liquid mixture below its freezing point, leading to the formation of ice crystals. These ice crystals are primarily composed of pure water, while the solutes remain in the liquid phase. The freezing step is meticulously controlled to ensure the formation of appropriately sized ice crystals, which is vital for the efficiency of the following separation stage.

2. Ice Crystal Separation: Enhancing Purity

After freezing, the ice crystals are separated from the concentrated liquid using various methods:

Filtration: A straightforward method, effective for separating larger ice crystals.

Centrifugation: A faster technique, particularly suited for fine or small crystals.

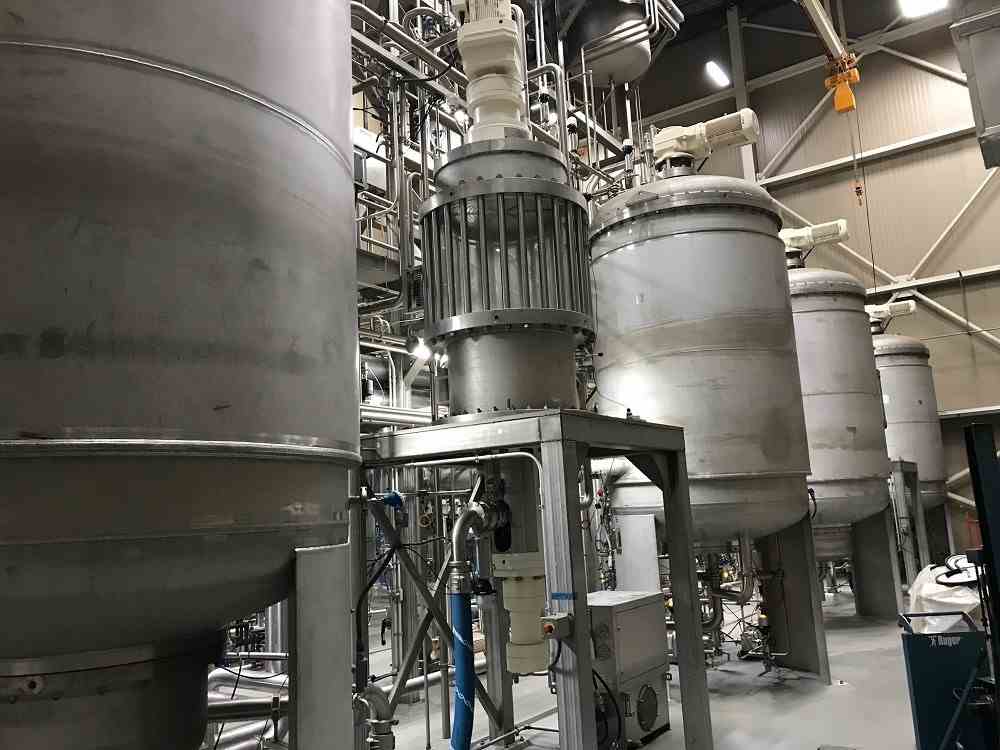

Wash Columns: Advanced systems may employ wash columns, where ice crystals are washed to remove trapped solutes, enhancing the purity of both the ice and the concentrate.

This separation step is key to achieving a high-quality final product, as it determines the concentration and purity of the liquid.

3. Melting or Removing Ice: Finalizing the Process

In the final stage, the ice crystals are either melted or removed, depending on the desired outcome. If pure water is required, the ice is melted to retrieve clean water, which can be reused or repurposed. Alternatively, the ice can be discarded, leaving behind a highly concentrated liquid.

Applications and Advantages of Freeze Concentration

This technique is particularly beneficial in the food and beverage industry, where it’s used to produce high-quality fruit juices, coffee extracts, and dairy products without compromising flavor, aroma, or nutritional content. In the pharmaceutical industry, freeze concentration is essential for preserving the integrity of heat-sensitive compounds, making it a valuable tool for producing concentrated drugs and biological substances. Environmental applications include wastewater treatment, where freeze concentration reduces the volume of waste, making disposal more efficient and environmentally friendly. Advantages of freeze concentration include:

•          Preservation of Quality: Unlike thermal concentration methods, freeze concentration avoids high temperatures, ensuring the original properties of the product remain intact.
•          Energy Efficiency: While initial setup costs can be significant, the process itself is energy-efficient, especially when the latent heat of fusion is effectively managed.
•          High Purity: With the use of wash columns and precise control, freeze concentration can achieve exceptional levels of purity in both the concentrated liquid and the recovered ice.
