Oil Seed Extraction Plants for Sale

Phoenix Equipment is a global buyer and seller of used Seed Oil Extraction Plants.

4 Results
Show:
Sort:

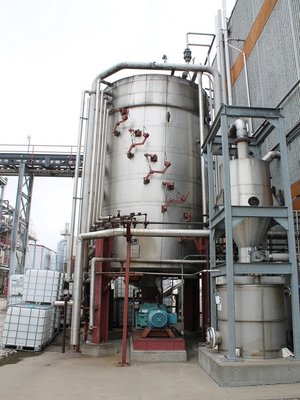

DESOLVENTIZER AND TOASTER - 65 TPD
DESOLVENTIZER AND TOASTER - 65 TPD
Stock # 538
Capacity 65 TPD

Used 65 TPD Desolventizer and Toaster. Manufactured by Crown Iron Works. Previously used to make cornmeal. Plant serial #18614-02. Sales package includes: Interior Main Shaft with (6) Sweep Arms, DT Feed Rotary Valve with TEXP 1800 RPM Motor, Bottom Rotary Valve, Mounted on Mild Steel Stand with Legs; Hansen QVRG4-CUN-112 Gear Drive, SN UUM002061-1A, Weg 75-HP Electric Motor, Frame 36415T; Includes 4" Stainless Cylinder and All 6" Ductwork and Manifolds, Steel Ladder and Work Platform. Built 2014.

Add to Quote View details

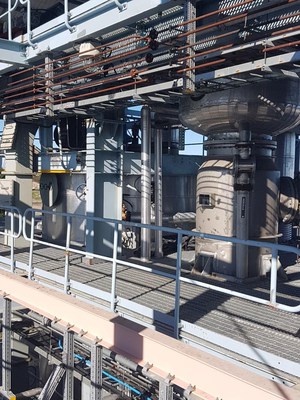

Solvent Extraction Plant - 500 TPD
Stock # 451
Capacity 500 TPD

Used 500 TPD Solvent Extraction Plant. The plant is to use Hexane as solvent to extract oil and other chemical compositions from wood stumps and vegetable seeds. The plant includes a preparation unit which chips feed material into small size to enhance extraction efficiency. Depending on feed material, the counter-current extraction process may vary from 60 to 160 minutes. Hexane solvent is sprayed over the moving bed of material and the oil compositions are removed from the material. The mixture of oil and solvent forms miscella which is sent to distillation unit. Extracted material is fed to desolventiser. Miscella is heated and flashed/stripped gradually to separate hexane and oil components. This process is under vacuum to reduce hexane losses and minimize steam consumption. Uncondensed vapor from distillation is trapped in mineral oil and recovered in the recovery section.

View details

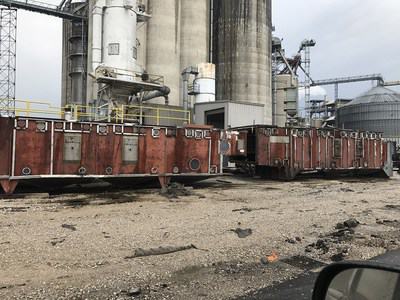

Oil Seed Extractor - 3000 TPD
Stock # 508
Capacity 3000 TPD

Used 3000 TPD Oil Seed Extractor manufactured by Crown Iron. Previously used to make soybean oil. Sales package includes: - Extractor; - Extractor chain, spare chain, chain guide bars; - Most of Extractor pumps, Extractor two main gearboxes and two new Extractor spare gearboxes; - Inlet hopper; - New spare floor bars, spare paddles; - Hydrocyclones. Decks 164" dia, 2 deck Cooler 180" dia. Originally built in 1997; revamped in 2010; Chain, weir bars replaced new in 2015.

View details

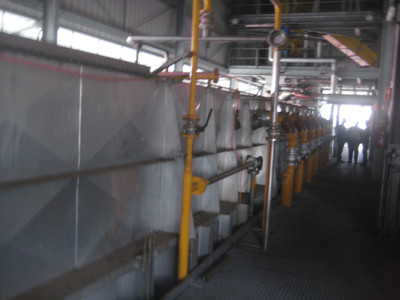

Seed Oil Extraction Plant - 1,200 TPD
Stock # 300
Capacity 1,200 TPD

Phoenix Equipment Corporation has this used 1,200 TPD Seed Oil Extraction Plant immediately available. The plant can work with various seeds such as soya, sunflower, palm, canola, etc, to produce vegetable oil. The plant consists of the processes of seed dehulling, cracking, flaking, Cooking / Conditioning, expanding, solvent extraction, distillation and solvent recovery.

View details
4 Results
Show:
Sort:

Learn More About Seed Oil Extraction Plants

Extraction is the first step in the refining process. Oils and fats are extracted from their original source (the seeds, fruits or other oil-bearing raw materials) using a variety of different methods. In some cases, the oil is extracted directly from the fruit by means of a simple mechanical press and used without the need for any further processing. This process is known as cold pressing. For most oils however, the process is more complex. Modern oil mills extract oil using a combination of pressing, cooking and solvent extraction.

The seed/bean is cleaned and dried and foreign material is removed. Crushing used to be done between mill stones that later became steel rolls. The oil bearing material is fed into one end of a cylinder where a power-driven worm conveyor forces the material to the other end of the cylinder and out against resistance. The pressure exerted in the process squeezes out the oil. Solvent extraction is used to separate oil from seeds/beans. The pre-processed seeds/beans are treated in a multistage counter current process with solvent until the remaining oil content is reduced to the lowest possible level. The mixture of oil and solvent is separated by distillation and the solvent is recycled into the extraction process and the crude oil is stored ready for refining.
