Ammonia Plants for sale

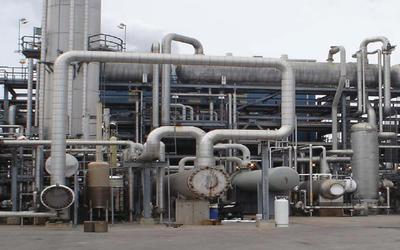

Used 1,000 TPD Ammonia Plant built in 1980. Has three process sections. (1) Syngas generation. In this section, natural gas goes through compression and desulphurization, and then enters medium pressure primary reformer and secondary catalytic reformer. Carbon monoxide catalytic conversion occurs in two temperature stages. (2) Syngas purification. Benfield system is used to remove carbon dioxide from raw syngas. CO2 is converted into methane. (3) Ammonia synthesis and refrigeration. A centrifugal compressor powered by steam turbine compresses purified syngas, which is then sent to ammonia synthesis reactor. Product ammonia is chilled by a refrigeration system and then delivered to storage tanks. This plant had several major upgrades after 1990, including: (a) synthesis column upgrade in 1996, (b) new technology for nitrogen recovery from purged gases in 1994, (c) new monitor system for the ammonia synthesis compressor and the refrigeration compressor in 1996, (d) replacement of tubes in the primary reformer in 2008, (e) new secondary reformer burner in 2014. (This plant is compatible with Urea Plant #434).

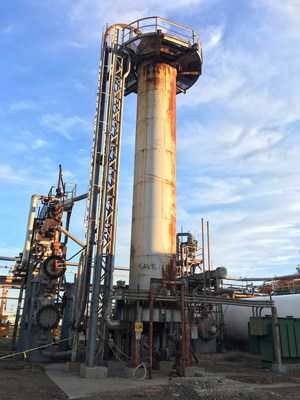

Used 64" ID Ammonia Plant Ammonia Synthesis Converter built in 1965. Manufactured By Victoria Machinery Depot Co. Ltd. Dimension: 64.125" ID x 50' 4.875” Height. Shell thickness 7.5", head thickness 7.625". Design pressure 4625 psig, design temperature -20 to 430 F, tensile strength 80,000. Canadian Registration # A-515.4. Board #123. Manufacturer Serial # 393. Built 1966. Previously used for 200 TPD ammonia production.

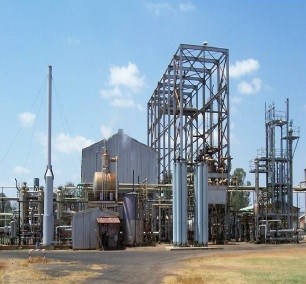

Used 235 TPD Ammonia Synthesis Plant built in 1972. Uses high pressure process designed by La Grande Paroisse of France. The plant directly introduced hydrogen and nitrogen as feedstocks into ammonia synthesis converter. The plant does not have a steam methane reformer (SMR). Design capacity 220 TPD, current operating capacity 235 TPD. Process pressure 350 bar, power requirement 4.36 MW. An air separation unit is available. It generates 7,300 Nm3/hr of nitrogen at 99.99% purity and 3,970 Nm3/hr of oxygen 99.99%. Power requirement of the ASU is 4.64 MW.

Used ammonia of maximum proven capacity of 1,160 TPD. The plant is still in operation. Products: 70% gaseous ammonia, 29% liquid ammonia and 1% ammonia water. The last major turnaround in 2021 replaced reformer tubes, syngas line, catalyst and overhauled turbines and compressors. Siemans DCS migration on the user interface in 2019. Feedstock: natural gas 50 bar, specific consumption 620 - 640 m³/t. The plant at full capacity exports 4 bar steam 2.0 to 2.1 T/T ammonia and 16 bar steam 0.1 to 0.2 T/T ammonia. CO2 emission 2.0-2.1 t/t. This plant includes the complete production sections of natural gas desulphurization, primary reformer, secondary reformer, high and low temperature shift converters, CO2 removal, syngas compressor, air compressor, ammonia synthesis, and ammonia evaporation. Primary reformer operates at 790°C and 30 bar with the secondary reformer at 950 °C. Ammonia synthesis operates at 270 bar. A 500 TPD Linde designed methanol synthesis loop for green methanol production project is integrated in this ammonia plant.

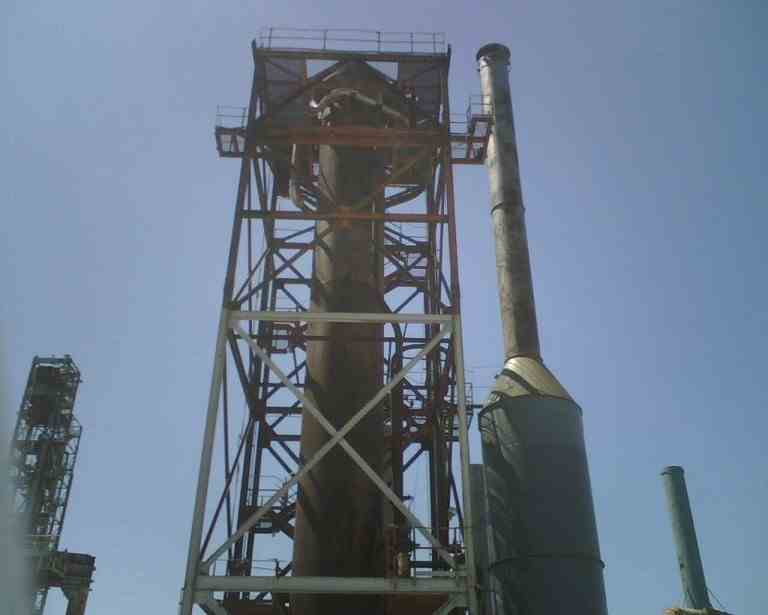

Used Ammonia Converter from a 1,100 TPD Ammonia Plant, built by Chicago Bridge and Iron in 1973, Casale basket, 77" ID X 51'8.25" SM/TL (62'2" O.A.L.), 410 Stainless Steel internal later, 7900 PSIG @ 500° F EXCEPT BTM HEAD 700 ° F, 11.10” (5/8” liner) wall thickness, estimate shell weight 646,000 lbs, estimated basket weight 71,442 lbs.

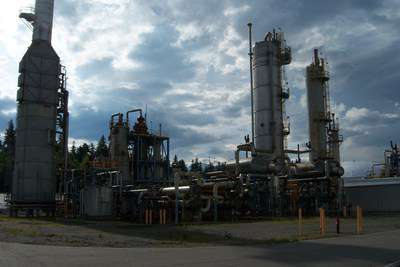

Used 1,000 TPD Ammonia Plant built in 1984. Haldor Topsoe process. Major equipment replacement, overhaul and upgrades in 2014. Last turnaround in 2015. Use natural gas as feedstock. Gas efficiency better than 36.85 MBTU/MT of ammonia. NOx emission less than 75 ppm. Complete technical documents and spare parts available. A matching urea plant of 1,800 MTPD also available.

Used Ammonia Converter from a 1000 STPD Ammonia Plant with Haldor Topsoe basket built in 1997. The ammonia converter had a complete Halder Topsoe retrofit in 1997 and only operated for about 5 years after this upgrade. Built by Struther Wells, 2600 PSI DESIGN @ 475 DEG. F., 84.125" INSIDE DIAMETER x 75'2.8125" OAL; 4.125" shell thickness; 3.125" head thickness; 19,135 gallon water capacity.

Used 635 TPD Ammonia Plant built in 1997, dismantled and stored for resale. The plant directly introduced hydrogen and nitrogen as feed-stocks into ammonia synthesis converter. There is no reforming section. This plant is ideal for a company which is short of natural gas supply but would like to set up ammonia production close to an air separation unit, a chlorine plant or other plants which generate hydrogen.

Used 100 TPD Ammonia Plant built in 1966. Skid-mounted, designed by N-Ren (Amopak process) immediately available for quick loading and shipment. All the equipment has been dismantled. The plant includes the process sections of (a) Natural gas desulfurization (b) Catalytic steam reforming (c) Carbon monoxide shift (d) Carbon dioxide removal (e) Methanation (f) Ammonia synthesis (g) Purification. The plant has (3) Worthington, multi-purpose and multi-stage electric motor driven reciprocating compressors (now only 2 such compressors available, A & B). Each compressor consists of (4) stages for syngas, (3) stages for process air and (1) stage for ammonia refrigeration. The plant also has (2) Worthington reciprocating electric motor driven compressors to recirculate the syngas back to the synthesis loop. The loop operates at 4,500 psig pressure. The primary reformer was rebuilt in 2011 and has not been used since then. There are 64 catalyst tubes in the reformer with tube material of HP modified, 25-35 with Niobium. Operation pressure of reforming and purification section: 240 psig; synthesis loop: 4850 psig, maximum 5150 psig. ----- The sales package excludes a few equipment items: Worthington compressor C and related components (9 cylinders, 1 air distance piece, crankcase, lube oil pumps), skid containing secondary ammonia condenser and refridge ammonia condenser, gas filter, amine heat exchanger and process gas cooler. ----- The sales package includes some equipment items from another N-Ren Amopak plant of the same capacity. Key equipment includes methanator, CO2 absorber, converter heat exchanger, condensate separator, amine reboiler, amine heat exchangers, cartridge filter, acid gas cooler, regenerator, let-down drum, vent condenser receiver, primary condenser, primary and secondary separators, ammonia converter. ------ Consumption data per ton of ammonia product: 38000 SCF natural gas, 3500 Lbs steam, 6940 Lbs treated boiler feed water, 75000 gallons cooling water, 740 KWH electricity.

Used 1,140 TPD Ammonia Plant built in 1973. Gas enters the synthesis section at a ratio of approximately three parts hydrogen to one part nitrogen. This ratio is maintained with only small variances to enhance catalyst reaction during ammonia conversion. Compression raises the process gas stream to the higher pressure as coolers and chillers, utilized between compressor stages, maintain temperature. Following process gas to ammonia conversion over a high temperature catalyst bed, the process stream is cooled. Exchangers, coolers, and chillers are utilized to reduce the gas stream temperature with either water, ammonia or a cooler gas stream to drop out the liquid ammonia for storage. This plant is a part of an ammonia and urea production facility. Review Plant # 206 for the information of the 1,350 TPY urea plant.
