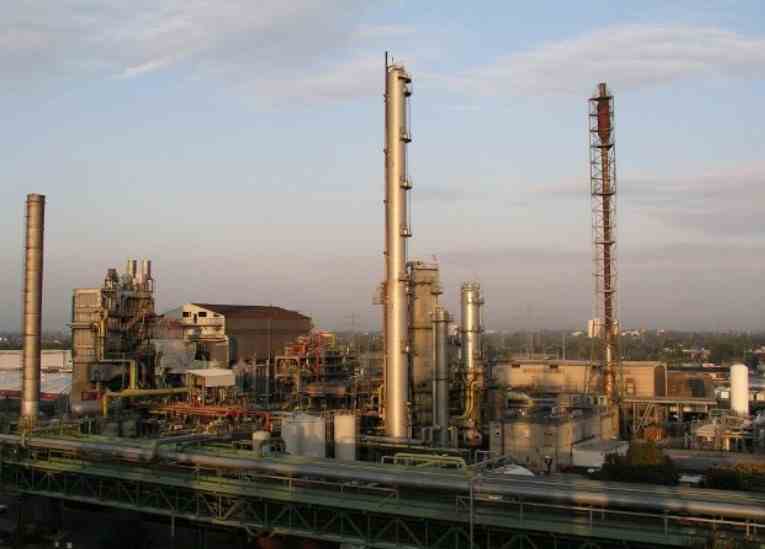

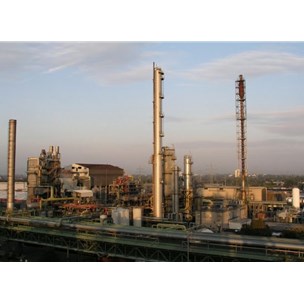

Ammonia (NH3) Plant - 1160 TPD

Stock # 579
Capacity 1,160 TPD (400,000 TPY)
Products Liquid and Gaseous Ammonia

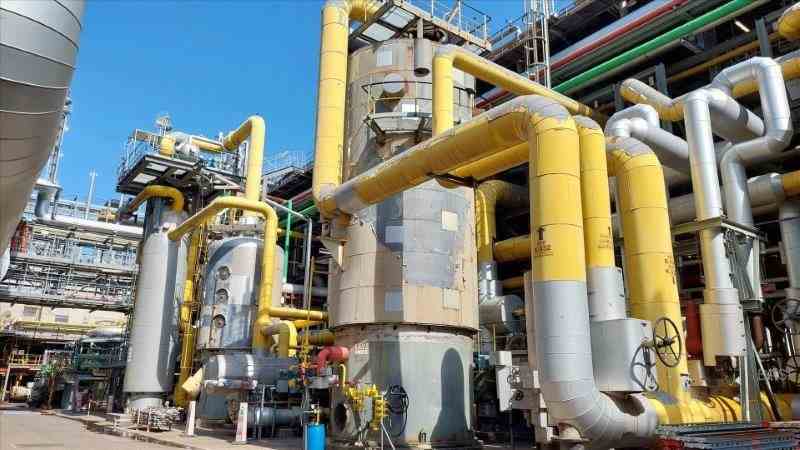

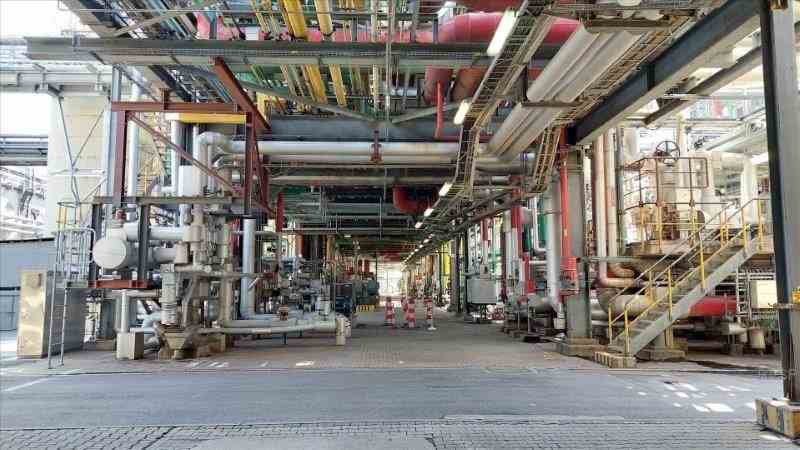

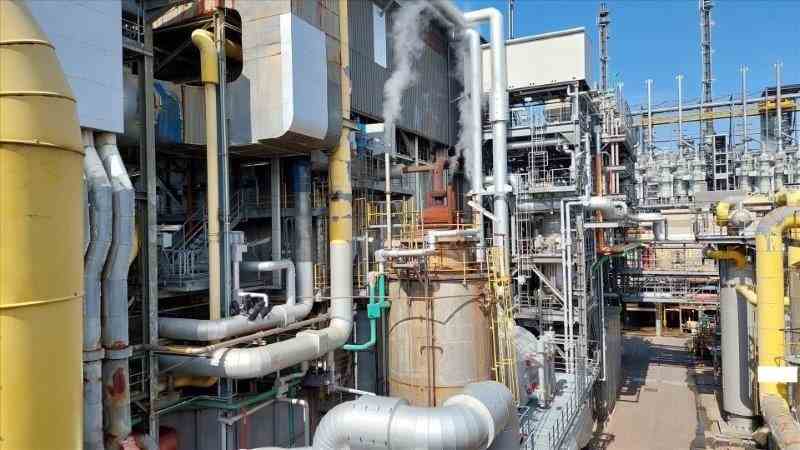

Overview

Used ammonia of maximum proven capacity of 1,160 TPD. The plant is still in operation. Products: 70% gaseous ammonia, 29% liquid ammonia and 1% ammonia water. The last major turnaround in 2021 replaced reformer tubes, syngas line, catalyst and overhauled turbines and compressors. Siemans DCS migration on the user interface in 2019. Feedstock: natural gas 50 bar, specific consumption 620 - 640 m³/t. The plant at full capacity exports 4 bar steam 2.0 to 2.1 T/T ammonia and 16 bar steam 0.1 to 0.2 T/T ammonia. CO2 emission 2.0-2.1 t/t. This plant includes the complete production sections of natural gas desulphurization, primary reformer, secondary reformer, high and low temperature shift converters, CO2 removal, syngas compressor, air compressor, ammonia synthesis, and ammonia evaporation. Primary reformer operates at 790°C and 30 bar with the secondary reformer at 950 °C. Ammonia synthesis operates at 270 bar. A 500 TPD Linde designed methanol synthesis loop for green methanol production project is integrated in this ammonia plant.

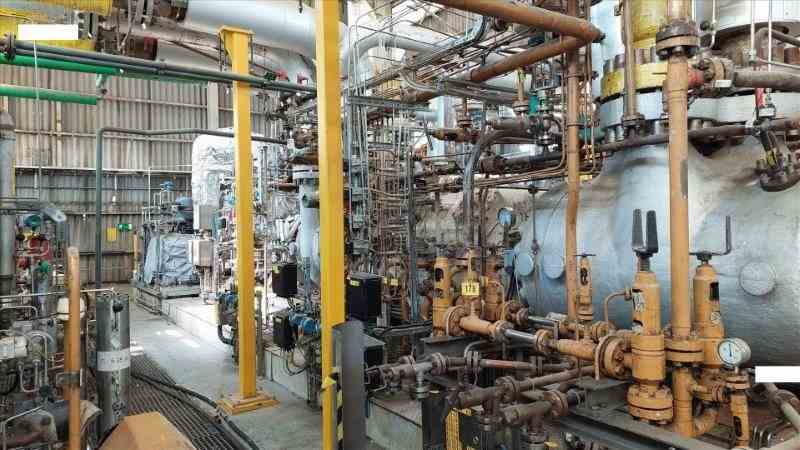

Major Equipment

• Hydrogenation reactor 17m3, 44 bar, 420 °C
• Desulphurization vessel 28m3, 44 bar, 420 °C
• Air compressor 35,000 Nm3/hr

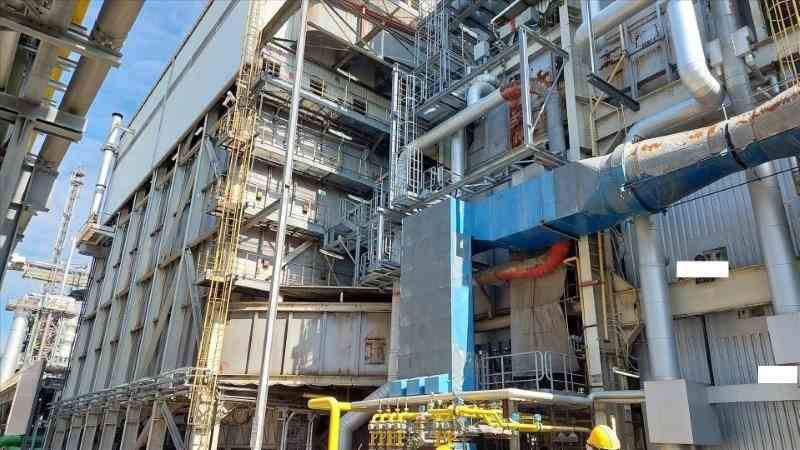

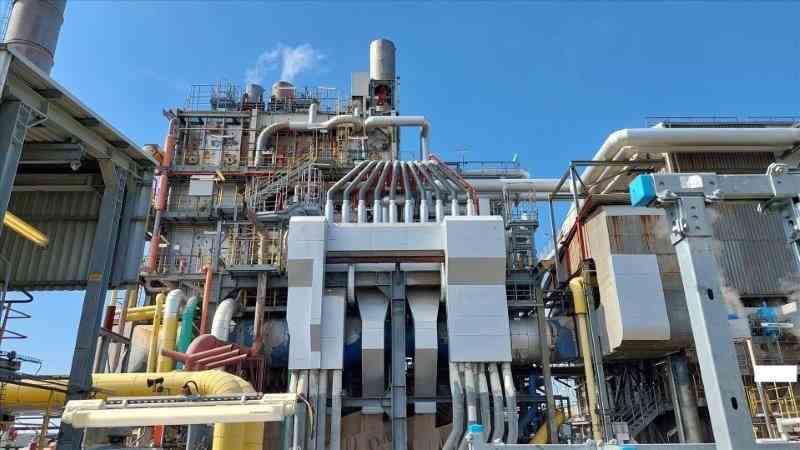

• Primary Reformer (342 tubes, new 2021), 14.45 m L x 124 mm dia. X 14 mm wall thickness 1.4848 (austenitic heat resistant steel)
• High temp converter 84 m3, 34.5 bar, 480 °C
• Low temp converter 114.5 m3, 33 bar, 300 °C
• Primary waste heat boiler 440 m2, 120/34 bar
• Secondary waste heat boiler 260 m2, 120/34 bar

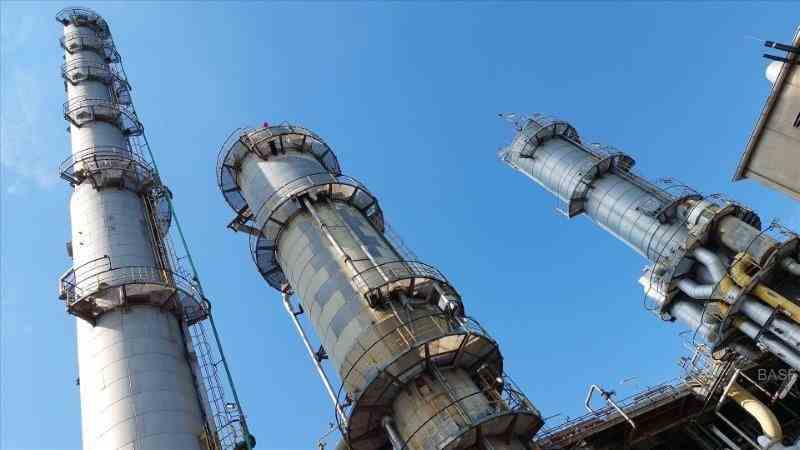

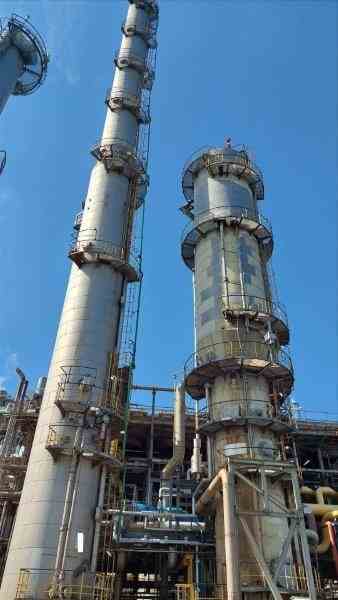

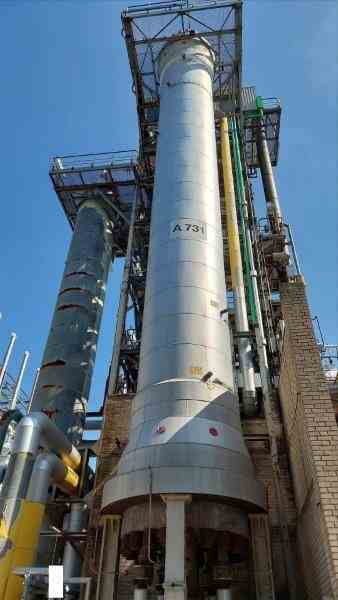

• CO2 scrubber (coarse) 347 m3, 35 m tall
• CO2 scrubber (fine) 287 m3, 39.6 m tall
• (2) Desorbers 109 m3 / 392 m3
• Stripper column 180 m3, 20 m tall
• Synthesis reactor 69 m3, 350 bar, 300 °C

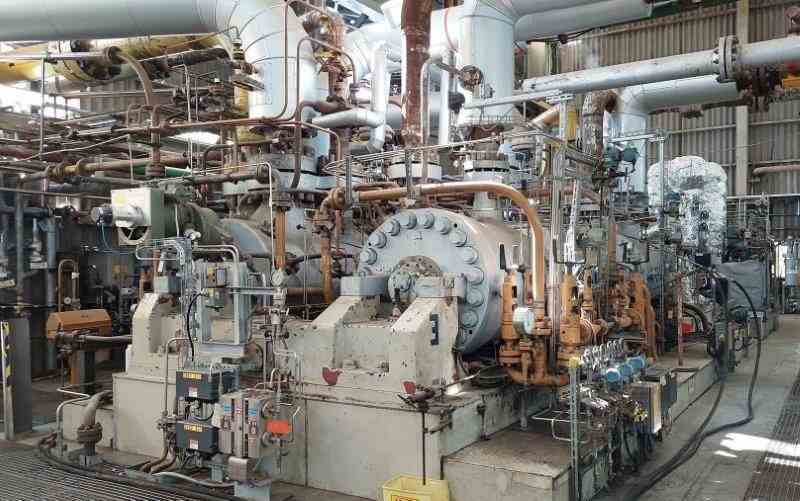

• Ammonia compressor 350 bar
• Methanol synthesis loop
Share
SPECIFICATIONS RESOURCES
Year Built
1971
Year Shut
Capacity
1,160 TPD (400,000 TPY)
