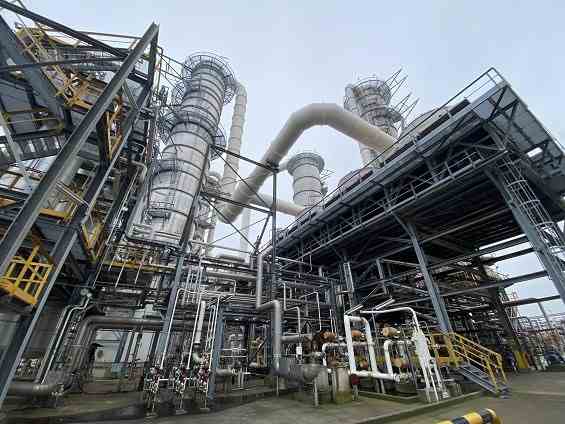

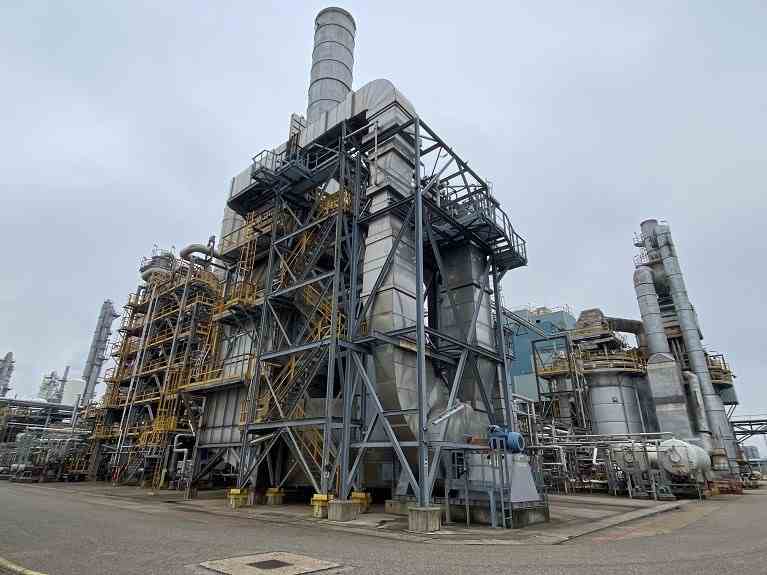

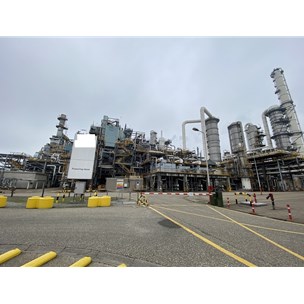

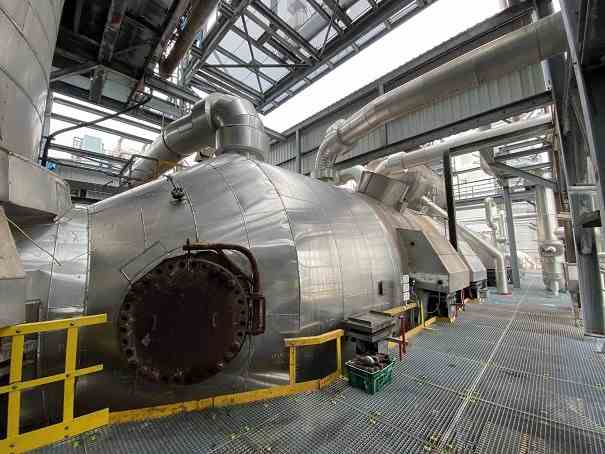

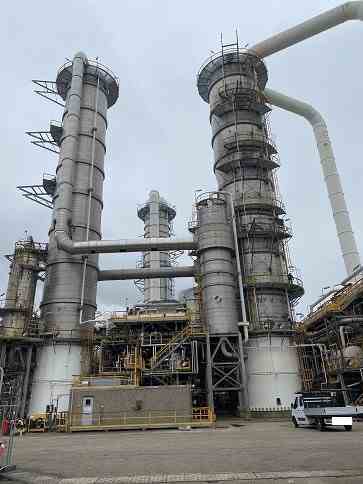

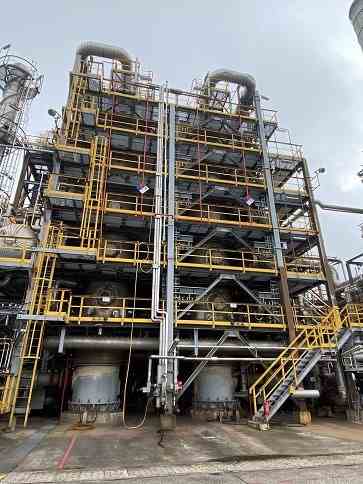

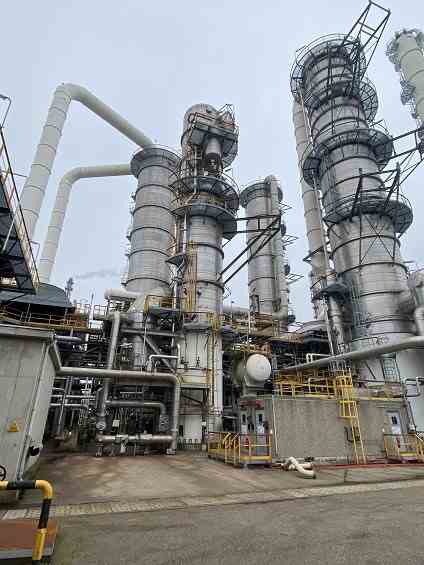

Styrene Monomer Plant - 530,000 TPY
Other Views - click image for larger view
Styrene Monomer Plant - 530,000 TPY Styrene Monomer Plant - 530,000 TPY Styrene Monomer Plant - 530,000 TPY Styrene Monomer Plant - 530,000 TPY Styrene Monomer Plant - 530,000 TPY Styrene Monomer Plant - 530,000 TPY

Styrene Monomer Plant - 530,000 TPY

Stock # 571
Capacity 530,000 TPY
Products Styrene Monomer

Overview

Used styrene plant consisting of 610,000 TPY ethylbenzene (EB) production unit and 530,000 TPY styrene monomer (SM) production unit. The first process section in the SM unit is cracking where EB is in two catalyst filled reactors converted with steam into SM and hydrogen through dehydrogenation. The process operated at high temperature. The second process section in the SM unit is finishing which purifies the SM and recycles unused EB to the feed of the cracking section.

Major Equipment

Alkylation Reactor
Benzene Tower
Ethylbenzene Tower
Poly-Ethylbenzene Tower
Absorption Tower
Preheating Furnace
Cracking Reactor
Oil-Water Separator
Condensate Stripper
Heat / Quench Train
Styrene Monomer Finishing Tower
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
1991
Year Shut
Capacity
530,000 TPY
