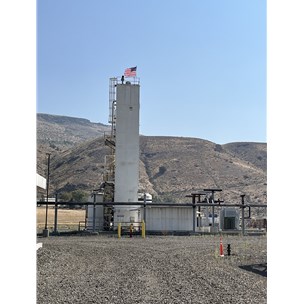

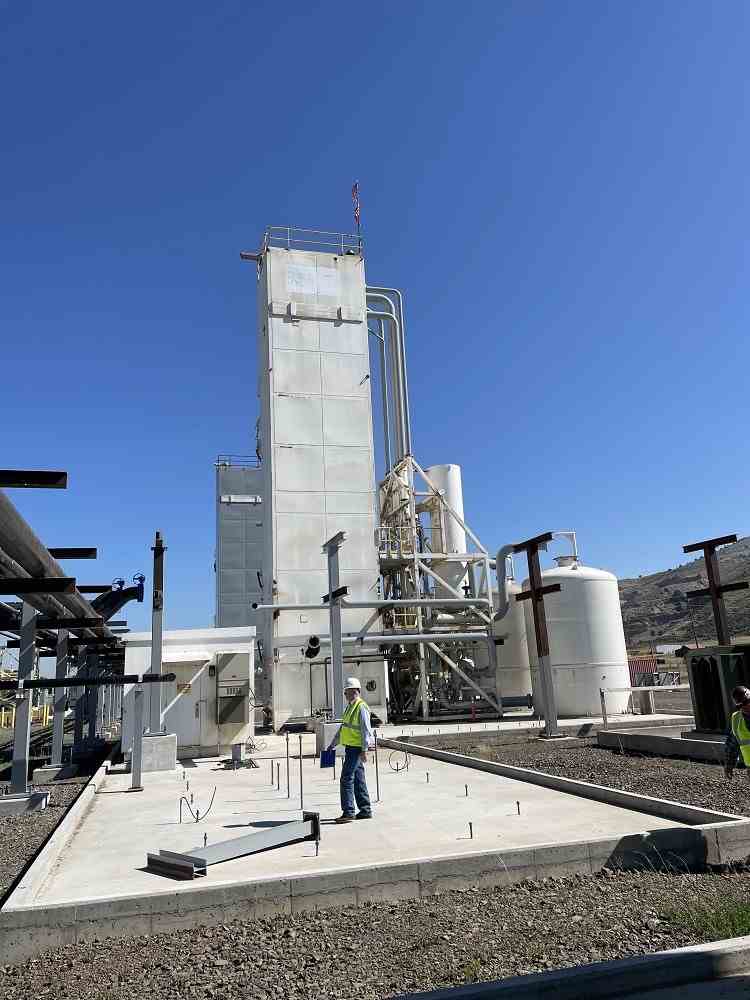

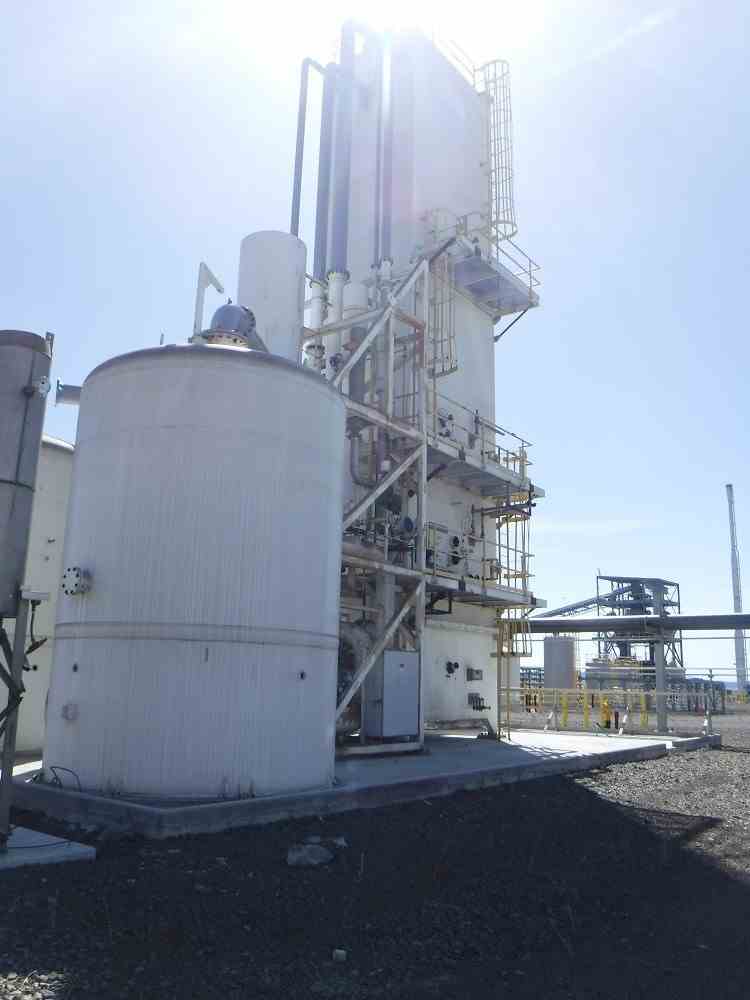

Air Separation Unit - 160 TPD
Other Views - click image for larger view
Air Separation Unit - 160 TPD Air Separation Unit - 160 TPD Air Separation Unit - 160 TPD Air Separation Unit - 160 TPD

Air Separation Unit - 160 TPD

Stock # 561
Capacity 160 TPD
Products Oxygen

Overview

Used 160 TPD Improved Cryogenic Oxygen (ICO) Plant. Designed by BOC. The plant produces >98% purity oxygen, outlet pressure up to 190 PSIA after booster compressor. Total plant power consumption 2830 KHW. The procedure starts with the introduction of atmospheric air into the air separation unit, finishing in the distribution of gaseous oxygen (GO) through the pipeline.

Major Equipment

- Oxygen Compressor Motor and Compressor
- PPU Absorber Vessels
- Cold Box
- CDA Compressor Skid
- Prefabricated Powerhouse
- O2 Compressor Blast Walls
- Switchgear & MCC
- Oxygen Storage Bullet
- Cooling Tower
- Cooling Water Pumps
Share
SPECIFICATIONS RESOURCES
Year Built
1996
Year Shut
Capacity
160 TPD

For additional information, visit the Resource Center
