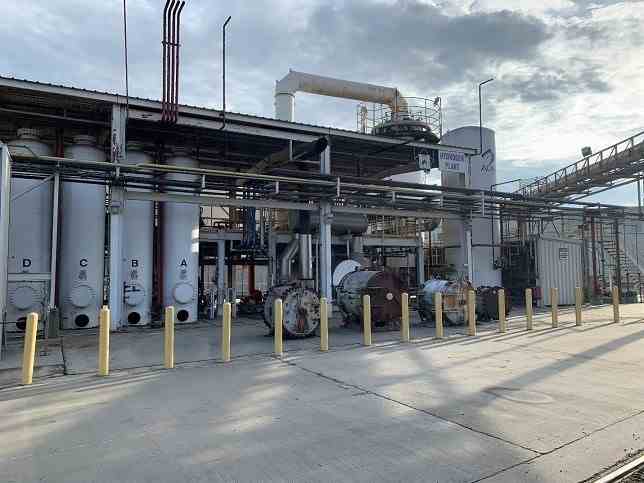

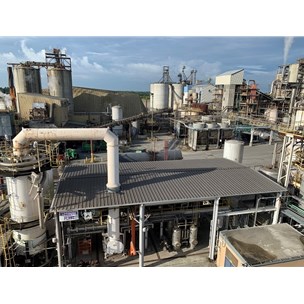

Hydrogen Plant - 1,416 Nm3/hr (50,000 SCFH)
Other Views - click image for larger view
Hydrogen Plant - 1,416 Nm3/hr (50,000 SCFH) Hydrogen Plant - 1,416 Nm3/hr (50,000 SCFH) Hydrogen Plant - 1,416 Nm3/hr (50,000 SCFH) Hydrogen Plant - 1,416 Nm3/hr (50,000 SCFH)

Hydrogen Plant - 1,416 Nm3/hr (50,000 SCFH)

Stock # 515
Capacity 1,416 Nm3/hr (50,000 SCFH)
Products Hydrogen

Overview

Used 1,416 Nm3/hr (50,000 SCFH) Hydrogen Plant, designed by Hydro-Chem (a Linde company) to produce 99.99% hydrogen. Originally built in 1980, re-built in 2007, shut down in 2018. Syngas reformer has 8 tubes installed and 4 spare tubes. The plant equipment has been dismantled and is ready for quick shipment. Full technical documents available. A reputable engineering firm has completed the study of revamp project and is willing to provide technical services.

Major Equipment

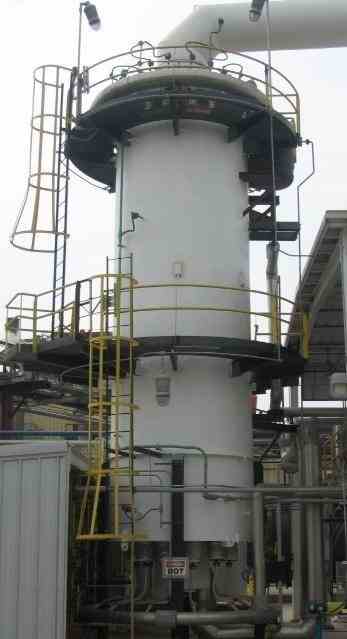

Steam Methane Reformer
Waste Heat Boiler
BFW Exchanger
DA Heat Exchanger
Air Pre-heater
Steam Pre-heater Coil
NG/FG Heat Exchanger
NG Compressor Aftercooler
Process Cooler
FD Fan
ID Fan
HTS Converter
Zinc Oxide Vessels

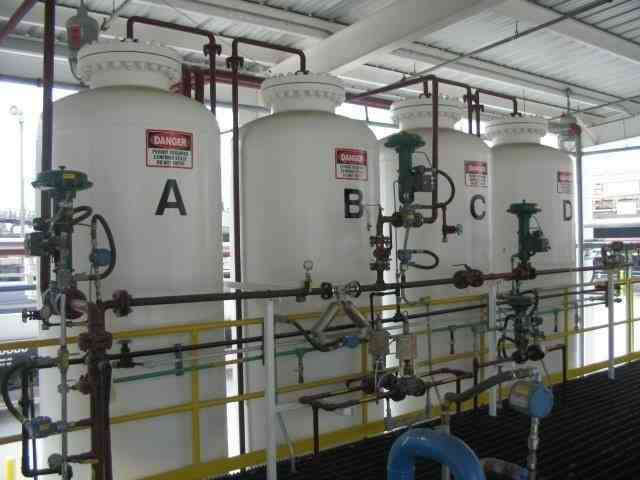

PSA Vessels
Blowdown Tank
Steam Distribution Heater
Mixing Chamber
Quench Pot
Process KO Drum
Separator - Steam to Catalyst
Vent Tank
NG Compressor
Effluent Boiler
Economizer
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
1980
Year Shut
2018
Capacity
1,416 Nm3/hr (50,000 SCFH)

For additional information, visit the Resource Center
