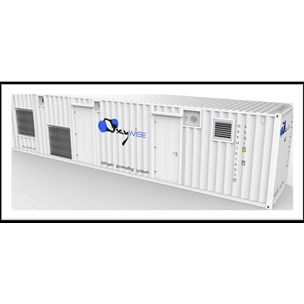

Nitrogen Plant - 428Nm3H @ 95% N2/vol - 210Nm3H @ 99.5% N2/vol

Other Views - click image for larger view

Nitrogen Plant - 428Nm3H @ 95% N2/vol - 210Nm3H @ 99.5% N2/vol

Stock # 513

Capacity 428Nm3H/95% ~ 210Nm3H/99.5%

Products Nitrogen at 95.00% - 99.50% depending on flow-rate setting

Sold

View Similar Items Sell Similar Equipment

Overview

Unused 428Nm3H (15,115SCFH) at 95% N2/vol - 210Nm3H (7,416SCFH) at 99.5% N2/vol Cryowise Nitrogen Plant built in 2017. Uses Nitrogen Pressure-Swing Adpsorption. Fully containerized and includes air compressor, filters, refrigerated dryer, air filtration, carbon tower, air tank, nitrogen PSA, and nitrogen tank. Has PLC controls, with 5 different purity settings: 95.00% N2/vol (428 Nm3H), 97.00% N2/vol (365 Nm3H), 98.00% N2/vol (302 Nm3H), 99.00% N2/vol (238 Nm3H), and 99.50% N2/vol (210 Nm3H). Outlet Pressure is 5 bar (72.5psig). Entire system draws 93kW max during start-up, and a 74kW nominal draw during normal operation. Electrics are 400V AC/3-Phase 50Hz.

Major Equipment

Control system with Siemens Color Touch Screen, including 1500 L Buffer Tank, including dust filter and pressure regulator

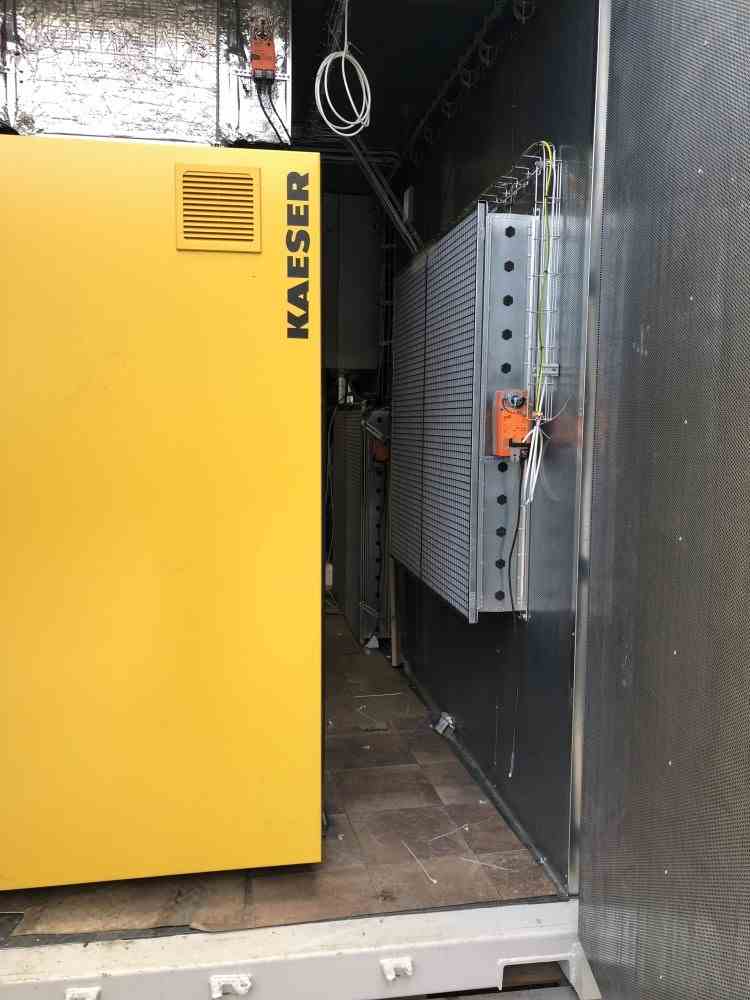

Compressor Kaeser CSDX 165, 8 bar screw compressor, incl. cyclone filter and ecodrain

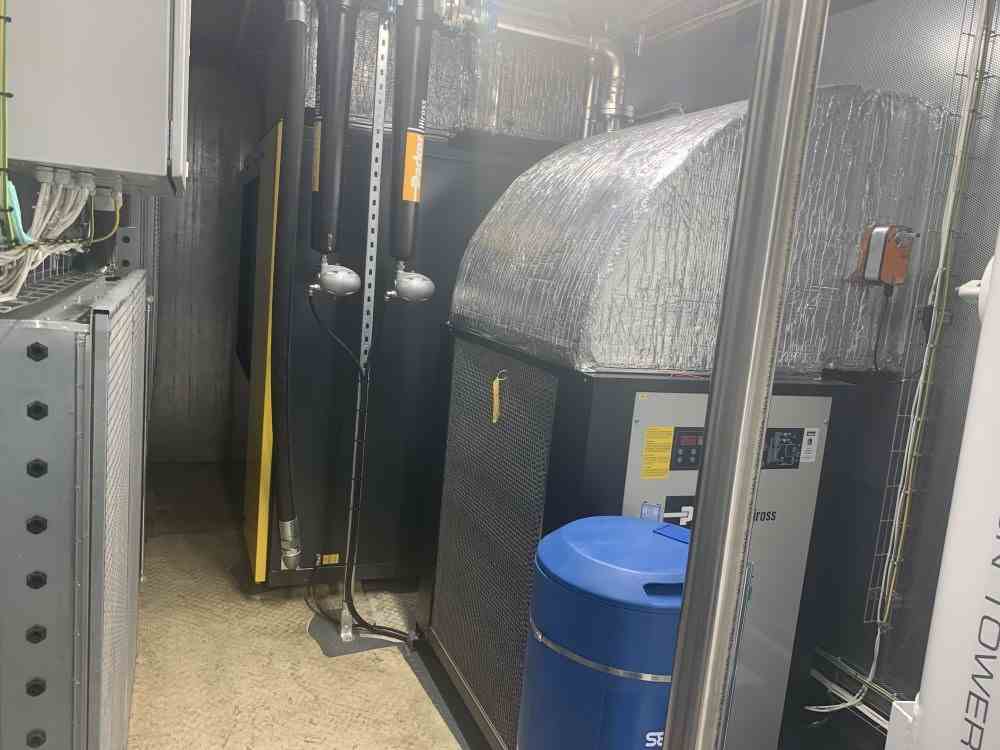

Refrigeration dryer PST350, Nominal flow 35m3/min
Air filtration set 175, 1micron and 0.01micron filter, including drain system
Carbon Tower CT20, max. flow rate 18m3/min, incl. oil indicator and dust filter
1500 L Air Tank, including hoses and connections

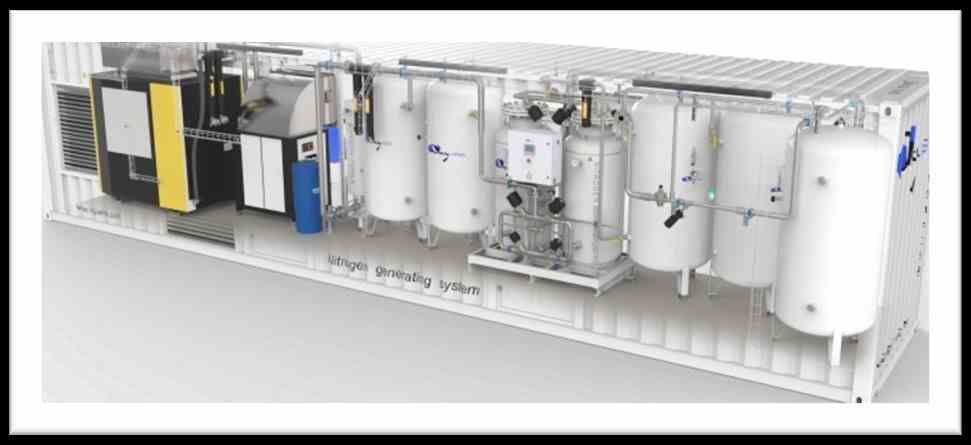

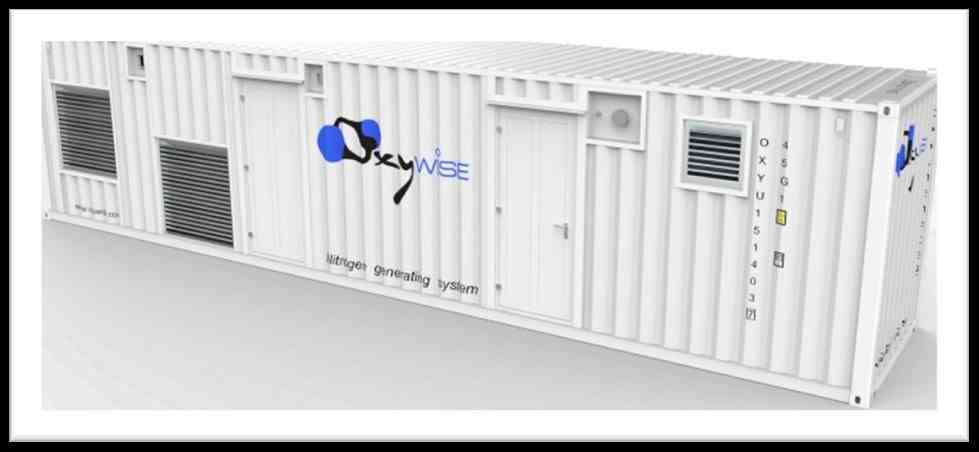

Containerization - unit is built in 40ft. container, incl. lighting, insulation, ventilation and ducting, heating
Molecular sieve protection from moisture with automatic recovery

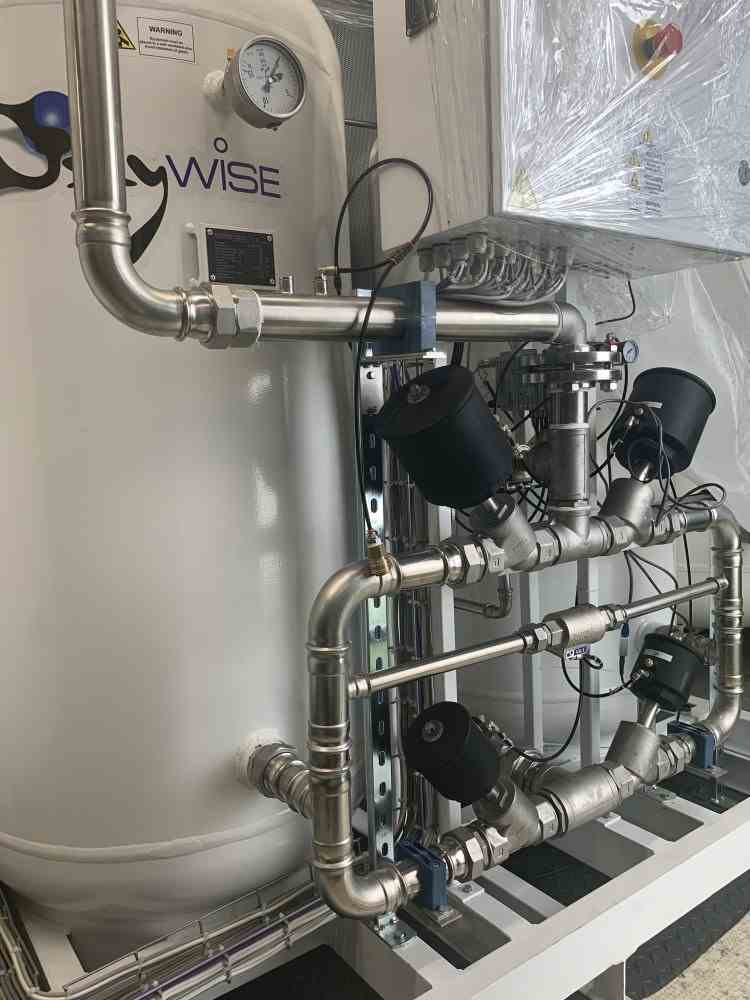

Flow control valve FCV2, flow from 170m3/h, adjusts the flow and purity of the generator Flow-meter DN32 incl. totalizer, range 1 to 530m3/h, value shown on touchscreen Sequential start/stop for models, one button operation
Audio/visual alarm, visual and acoustic signalization in case of any alarm
Oil water separator SEPURA 900, max flow 25m3/min, volume 55 ltr.
Surveillance system - ambient oxygen analyzer, measuring range 0-25% O2, zirconium oxygen sensor
Ambient air temperature monitoring
Emergency storage tank 1500L, equipped with pressure transmitter an isolation valve
