Desalination Plant - 7,000 m3/day
Other Views - click image for larger view
Desalination Plant - 7,000 m3/day Desalination Plant - 7,000 m3/day Desalination Plant - 7,000 m3/day Desalination Plant - 7,000 m3/day Desalination Plant - 7,000 m3/day

Desalination Plant - 7,000 m3/day

Stock # 497
Capacity 7,000 m3/day X 3
Products Water

Overview

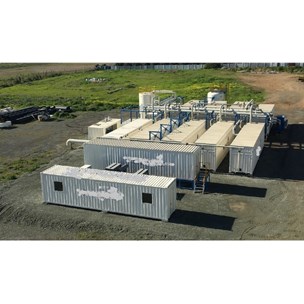

Used and refurbished 7,000 m3/day (77,000 gallons/hour) water desalination plant for sale. Three (3) plants available. The plant runs ultrafiltration followed by reverse osmosis. The plant was built in 2010, shut down in 2013, and underwent complete refurbishment in 2016. Currently idled for quick shipment. Water product specifications: Total Dissolved Solids (TDS) 35,000 mg/L - 45,000 mg/L, Silt Density Index (SDI) < 10, recovery/rejection 35-45% / 98%, pH 4-10, temperature 20-40 degree C. The plant equipment is containerized for easy transportation and set-up. The core RO desalination unit includes 3 containers with the SWRO membrane skids (28 pressure vessels per skid with 7 membrane elements each) and one container with the LP booster (with VFD), high pressure pump, energy recovery devices (8 PX 220 units) and PX energy recovery booster pump (with VFD). The plant needs power supply of 11 KV, 50 Hz, 3 phase. Technical services such as installation and commissioning may be available.

Major Equipment

Sea water container: UF feed pump, motor, micron strainers

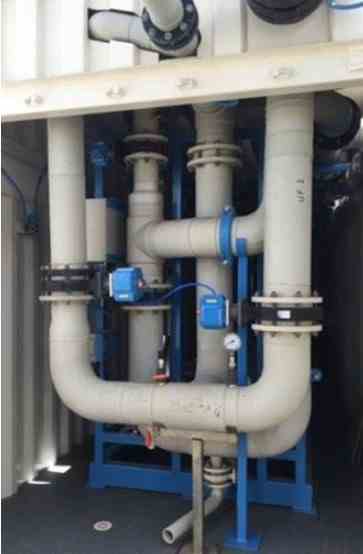

Ultrafiltration (UF) container: UF trains

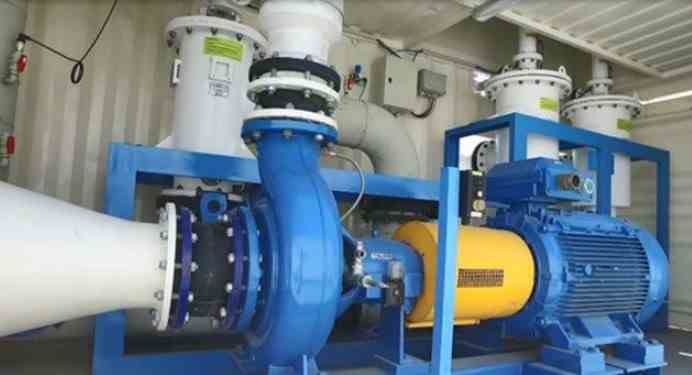

Reverse osmosis (RO) feed container: RO pump, motor, booster pump, energy recovery system

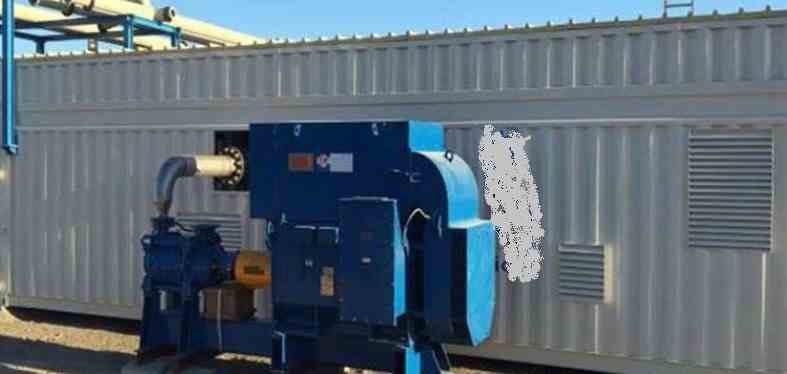

RO high pressure pump skid

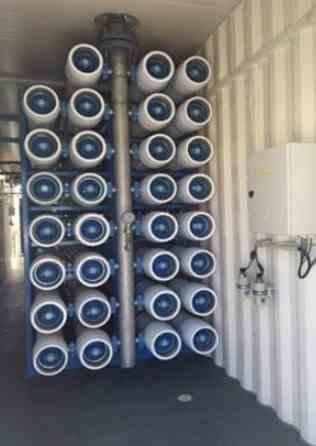

RO container: RO trains
Ancillary container: backwash pump, UF CIP pump, air compressor, chemical dosing system, permeate service general pump, air blower
MCC container: switchgears, control system
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
2010
Year Shut
2013
Capacity
7,000 m3/day X 3

For additional information, visit the Resource Center
