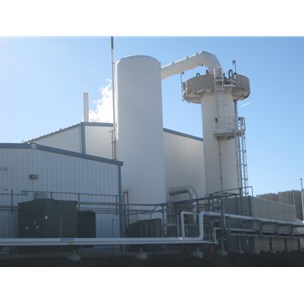

Hydrogen Plant - 1,200 m3/hr (45,000 SCFH)
Other Views - click image for larger view
Hydrogen Plant - 1,200 m3/hr (45,000 SCFH) Hydrogen Plant - 1,200 m3/hr (45,000 SCFH) Hydrogen Plant - 1,200 m3/hr (45,000 SCFH) Hydrogen Plant - 1,200 m3/hr (45,000 SCFH) Hydrogen Plant - 1,200 m3/hr (45,000 SCFH)

Hydrogen Plant - 1,200 m3/hr (45,000 SCFH)

Stock # 480
Capacity 1,200 Nm3/hr (45,000 SCFH)
Products Hydrogen

Overview

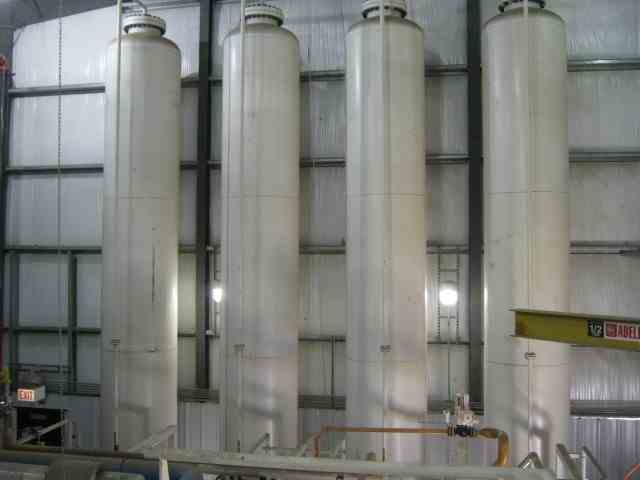

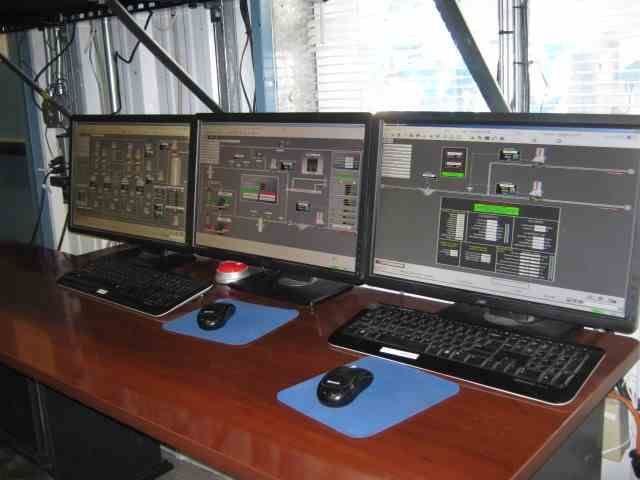

Used 1,200 m3/hr (45,000 SCFH) Hydrogen Plant built in 2008. Equipment is skid-mounted with original 10 reforming tubes, 4 PSA vessels, and DCS control (DeltaV with Foundation Fieldbus). Requires 21,466 SCFH of natural gas, 1,697 lbs./hr of steam, and 69.7 KW of electricity.

Major Equipment

Boilers
Desulfurizer
Steam Gas Reformer
PSA(s)
Storage Tank
Share
SPECIFICATIONS RESOURCES
Year Built
2008
Year Shut
Capacity
1,200 Nm3/hr (45,000 SCFH)
