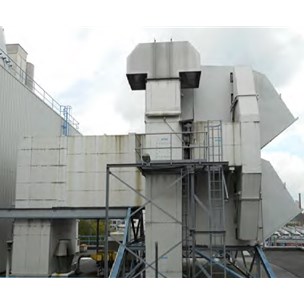

Cogeneration Power Plant (GE LM6000 Gas Turbine) - 64 MW
Other Views - click image for larger view
Cogeneration Power Plant (GE LM6000 Gas Turbine) - 64 MW

Cogeneration Power Plant (GE LM6000 Gas Turbine) - 64 MW

Stock # 1029
Capacity 64 MW
Products Electricity

Overview

This complete cogeneration power plant (or CHP, combined heat and power plant) has GE LM6000 PB DLE gasturbine, Siemens ENK 40/56-3 steam turbine, and Brush Synchroon 10 KV generator. The gas turbine has capacity of 51 MW and totally 74,170 running hours and 3,356 starts. The steam turbine is 13 MW and has 75,832 running hours. The plant has low emission of NOx 32 gr/GJ, CO2 20.6 tons/h, CO 1.6 kg/h. HRSG generates 42.8 tons/h of high pressure steam at 62 bar, and 16.7 tons/h at low pressure of 4 bar. The plant has finned-pipe condensor made by GEA.

Major Equipment

GE LM6000 PB NGD gas turbine
Siemens ENK 40/56-3 steam turbine
Brush Synchroon generator
Compressor
HRSG
Condensor
Share
SPECIFICATIONS RESOURCES
Year Built
1997
Year Shut
2013
Capacity
64 MW
