Crude & Vacuum Distillation Unit - 170,000 BPD
Other Views - click image for larger view

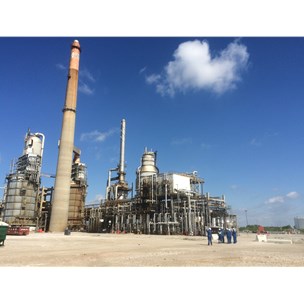

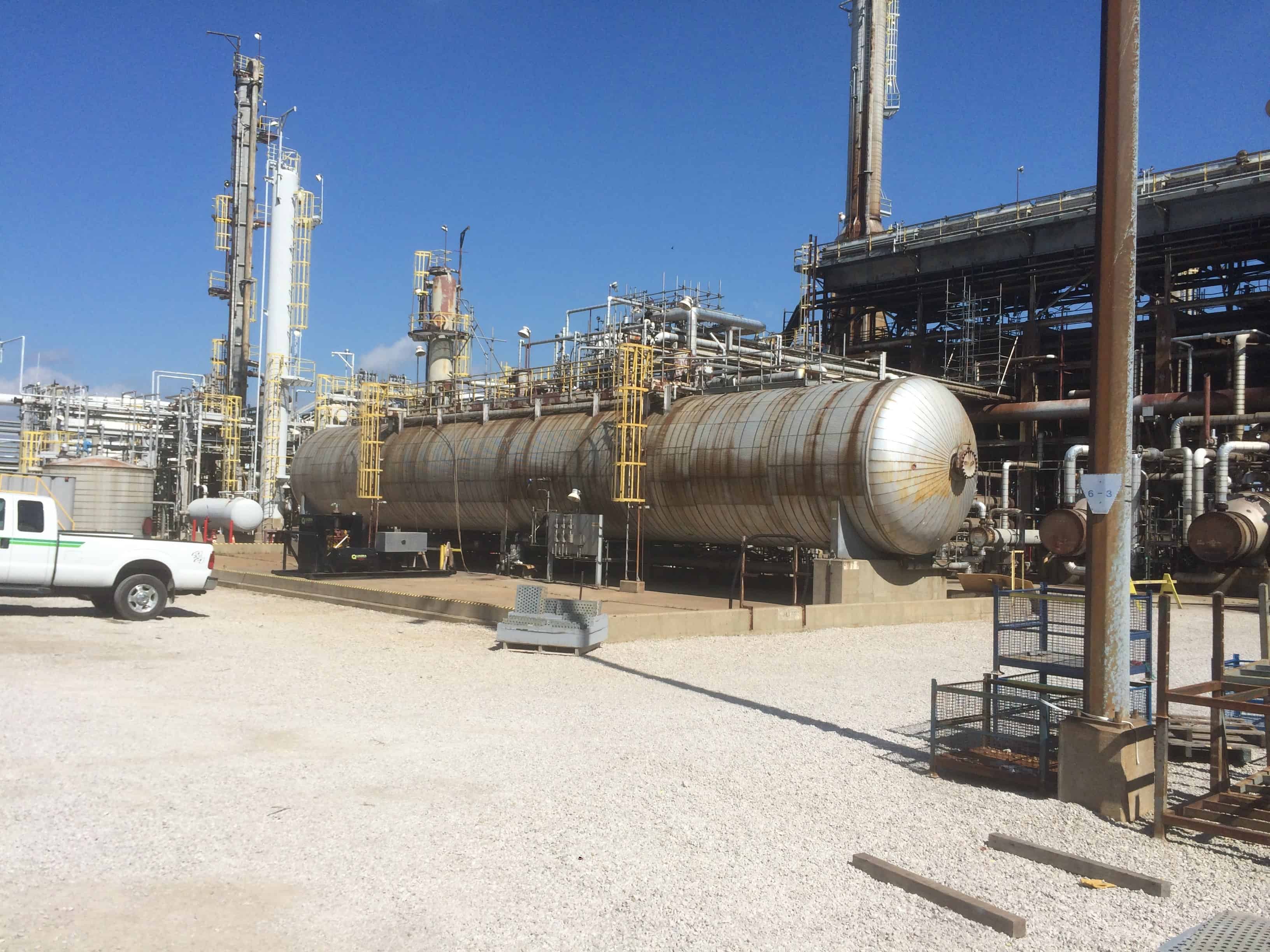

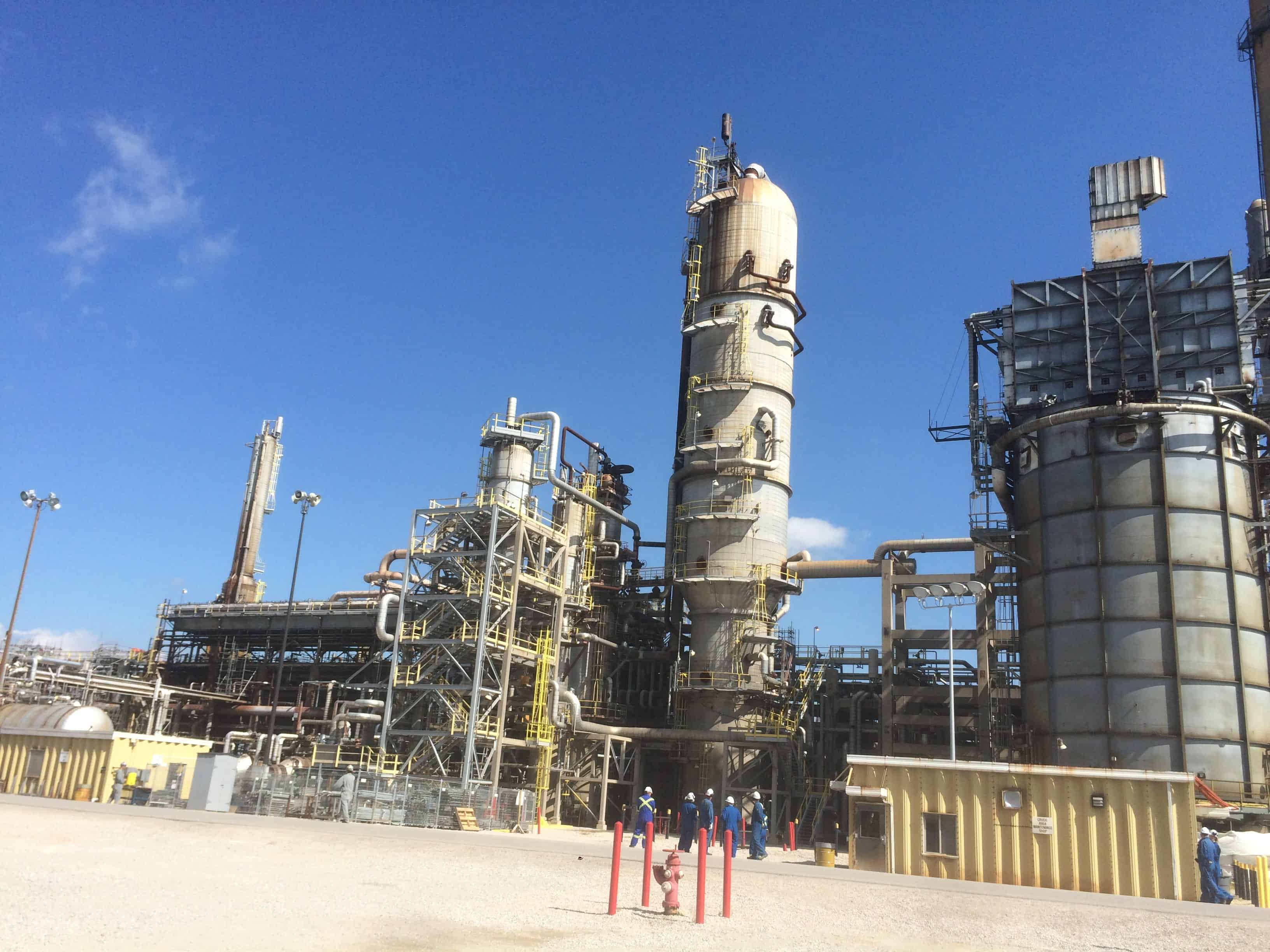

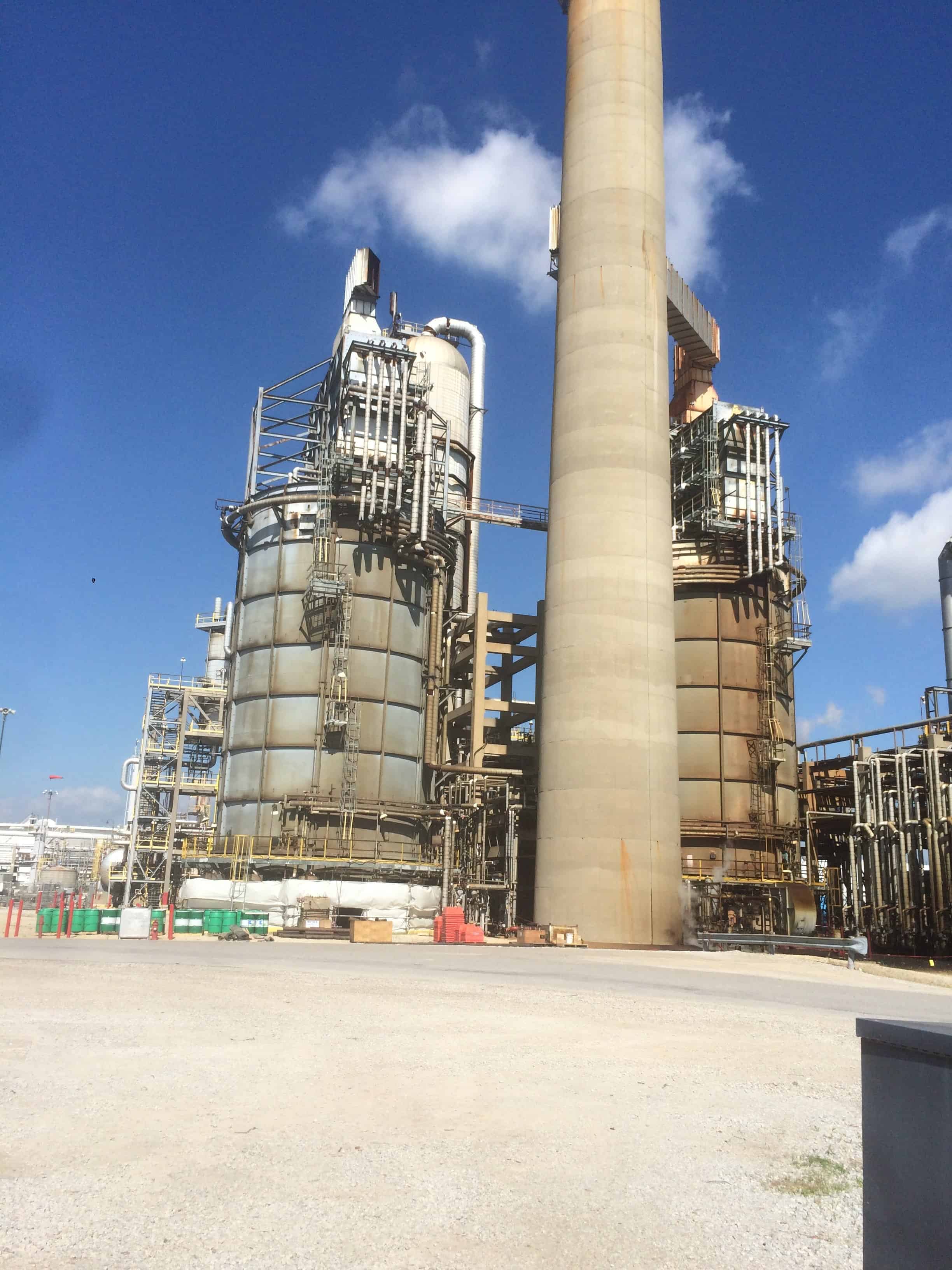

Crude & Vacuum Distillation Unit - 170,000 BPD Crude & Vacuum Distillation Unit - 170,000 BPD Crude & Vacuum Distillation Unit - 170,000 BPD Crude & Vacuum Distillation Unit - 170,000 BPD Crude & Vacuum Distillation Unit - 170,000 BPD

Crude & Vacuum Distillation Unit - 170,000 BPD

Stock # 403
Capacity 65,000 - 170,000 BPD
Products Heavy Atmospheric Gas Oil (HAGO), Naphtha, No. 2 Fuel Oil

Overview

Used 65,000 - 170,000 BPD Atmospheric Crude Oil Distillation Unit (CDU) with Vacuum Distillation (VDU) built in 1976. This CDU & VDU is capable of 65,000 - 170,000 barrels per day. The unit preheats, de-salts, and separates crude oil into naphtha, No. 2 fuel oil, heavy atmospheric gas oil (HAGO), and atmospheric tower bottoms with the crude tower and preflash drum. The HAGO and No. 2 fuel oil are stripped of light hydrocarbons and dried respectively. Naphtha is further refined by the debutanizer tower, which separates the unstabilized straight run naphtha into a bottoms product of naphtha and an overhead stream of liquefied petroleum gas. The sour water stripper removes hydrogen sulphide, ammonia, and other impurities from sour water, then returns it to the desalter.

Major Equipment

Crude distillation tower
Vacuum distillation tower
Debutanizer tower
Crude oil preheater
Crude oil heater
HAGO product cooler
No. 2 Fuel oil stripper
Light oil sour water stripper
Crude tower reflux drum
Straight run naphtha drum
Naphtha product cooler
Steam generator
Vacuum drier
Desalter vessel
Crude tower preflash drum
