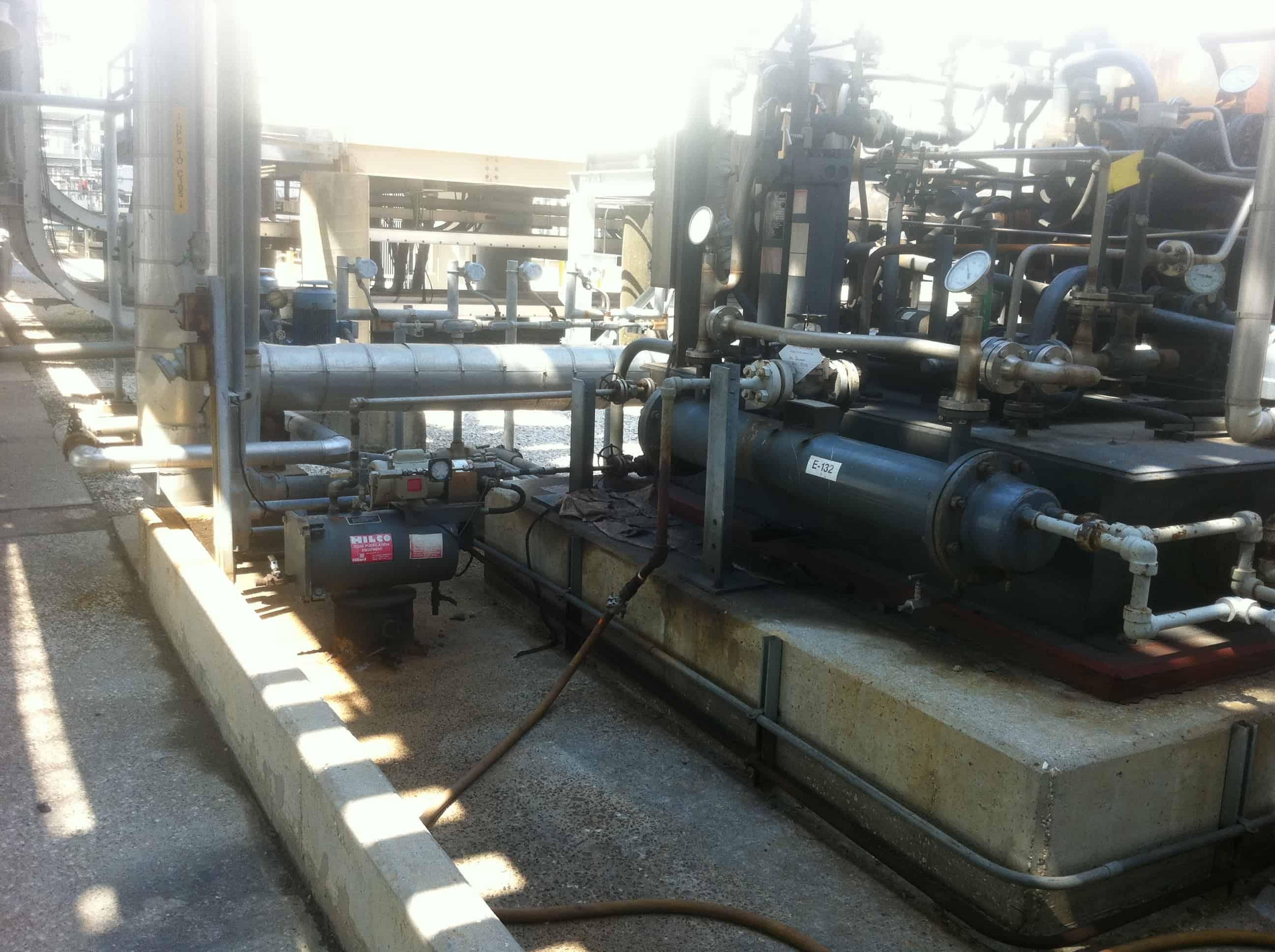

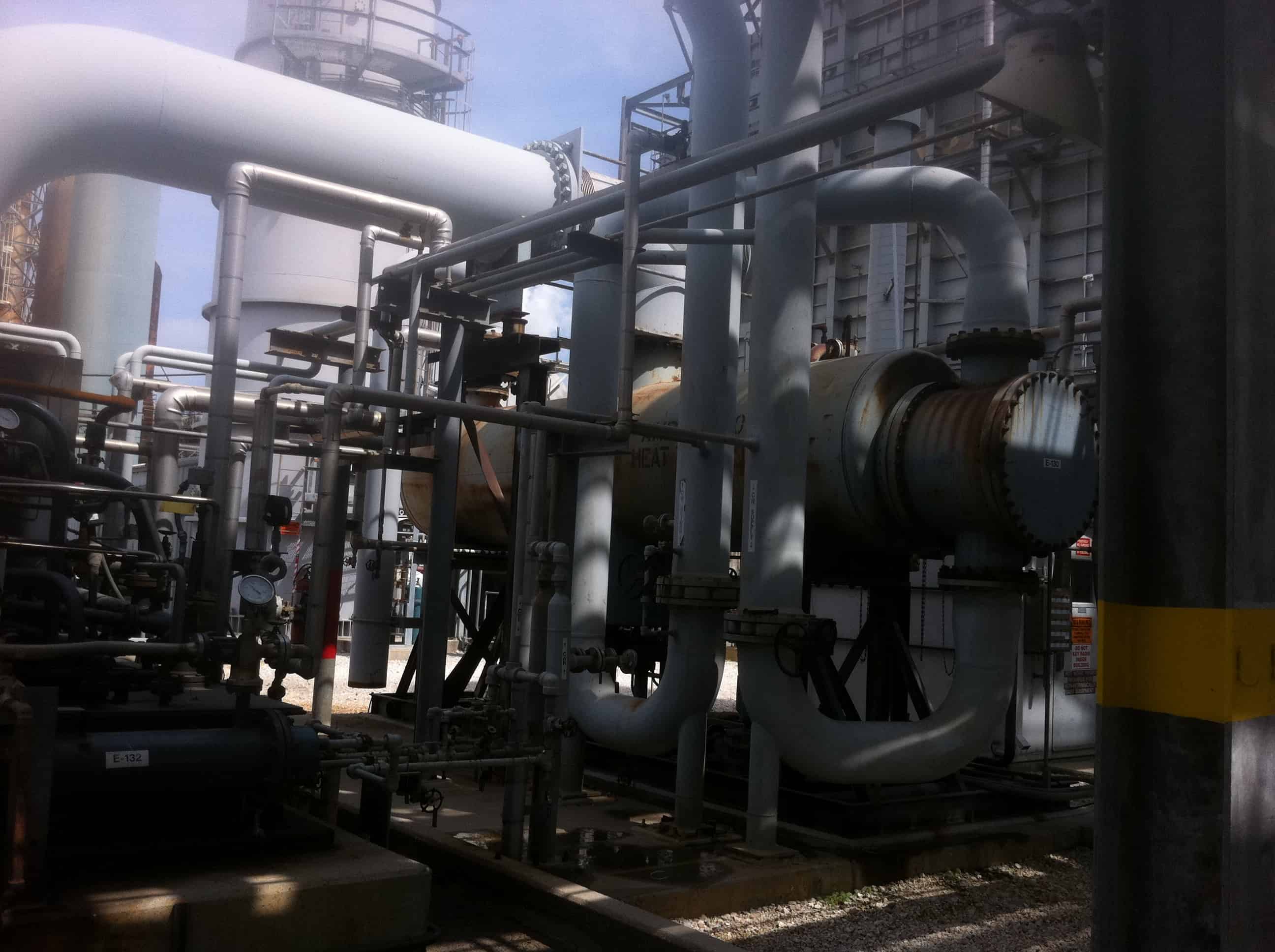

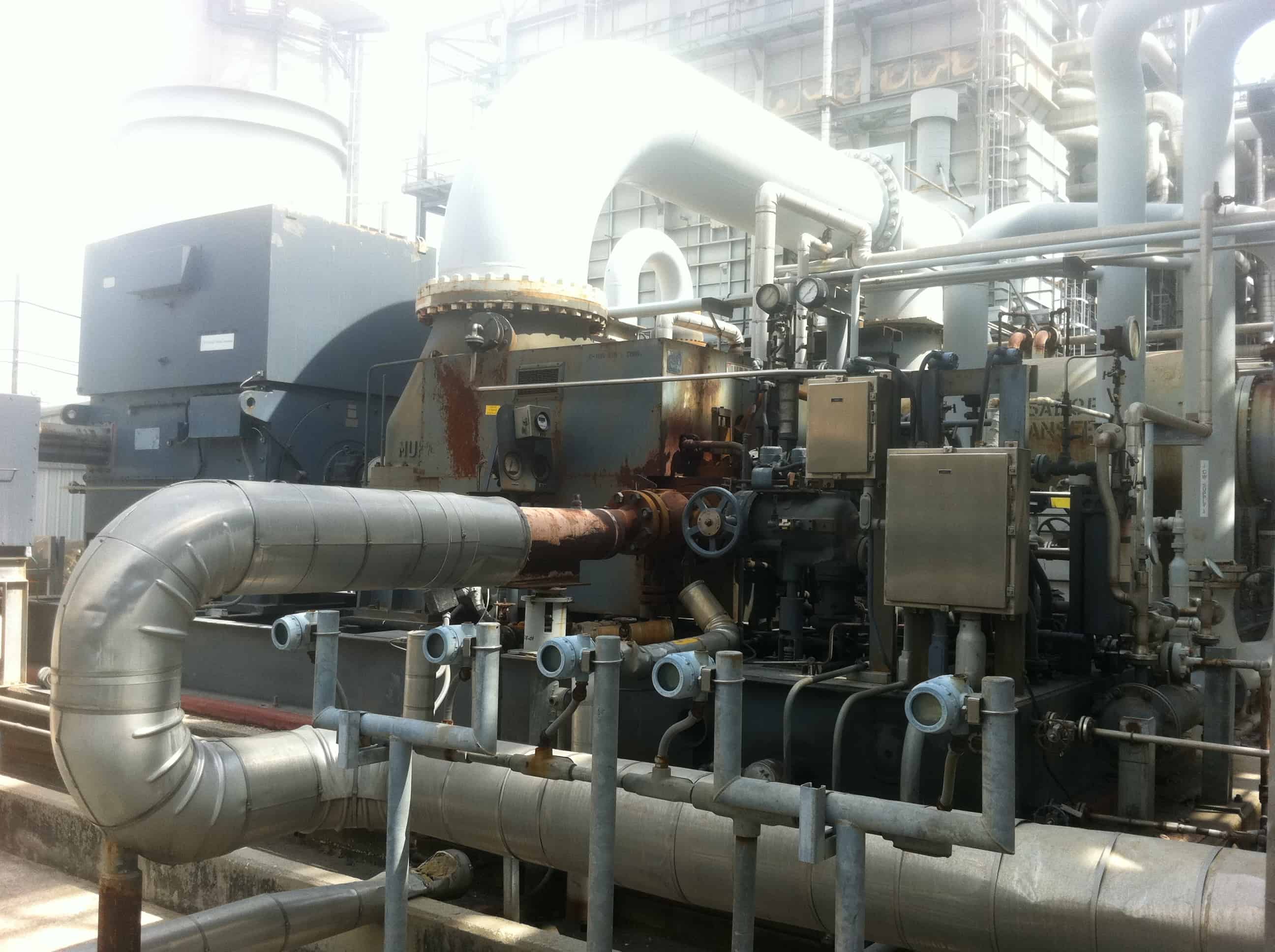

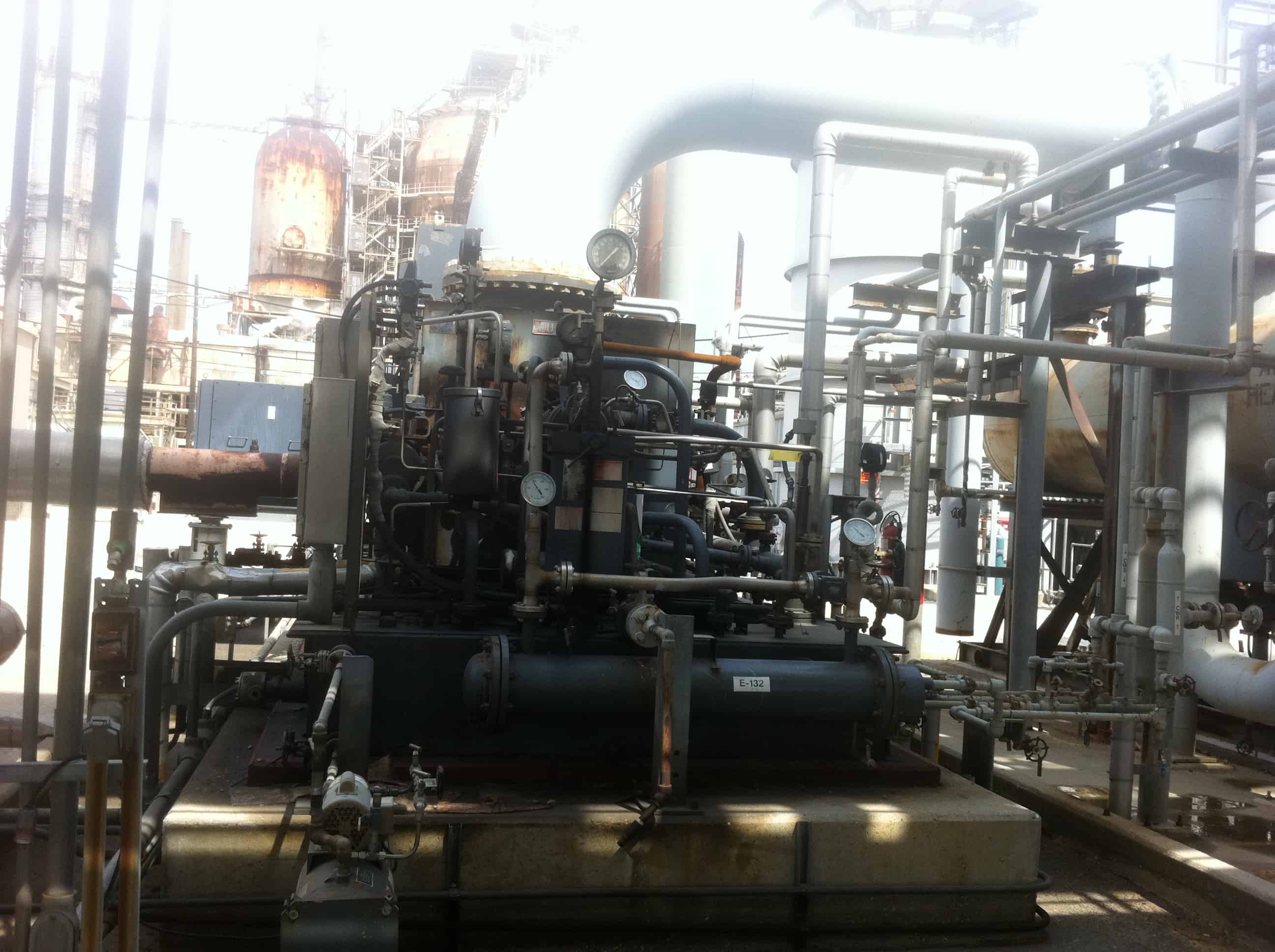

Steam Turbine Generator, Steam Flow 40,000 lbs/hr, Inlet Pressure 680 psig, Inlet Temperature 650 F, Exhaust Pressure 2.65 "Hg abs

Murray Model R2GD8M, Single Inlet Valve, 10-Stage, Direct Drive Condensing Steam Turbine, Woodward DG505 Governor with Woodward TM-25LP Electrohydraulic Actuator, Bentley-Nevada 990 Vibration Transmitters (4-20ma), Gland Steam Condenser, TEMA-C.
---Includes: Fabricated Steel Baseplate for Turbine, Generator, Lube Oil System, Local Gauge Panel.

ABB Induction, 2-Pole 3.4 MW Generator, Frame AMB 560 L2L, Speed 3610 rpm, Enclosure TEWAC, Voltage 4000 VAC, SF 1.00

Ambassador Heat Transfer 4993 GPM AXM Surface
Condenser, Size 48 x 252, Duty 37,588,000 BTU/HR, Materials Steel Shell, 90/10 Cu-Ni Tubes, Steel Tubesheets
