Caustic Soda / Chlorine Plant - 78 TPD
Other Views - click image for larger view
Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD Caustic Soda / Chlorine Plant - 78 TPD
Stock # 220
Capacity 78 TPD
Products Caustic Soda
Sold

Overview

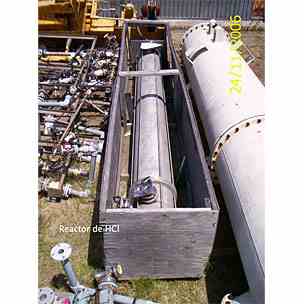

Used 78 TPD Chloralkali Plant (Caustic Soda / Chlorine plant ). Capacity is as follows: 78 TPD Caustic Soda; (32%), 25 TPD Chlorine. This plant is capable of producing 25 TPD of Chlorine and 78 TPD Caustic Soda at 32% concentration. The plant has unused hydrochloric acid converter manufactured by Carbon Lorraine of France. It can produce 575 kg/hr of HCl at 33%.

Major Equipment

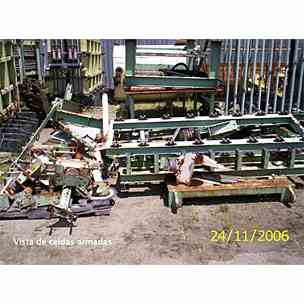

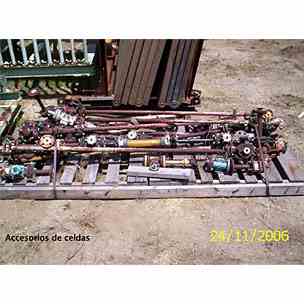

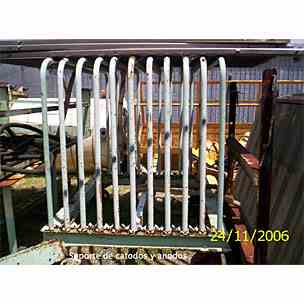

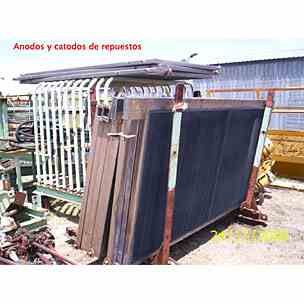

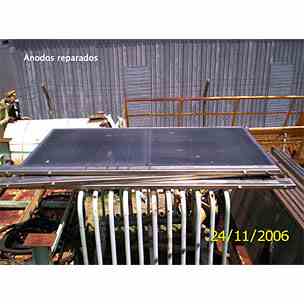

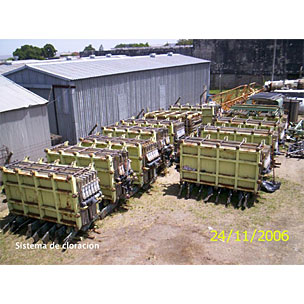

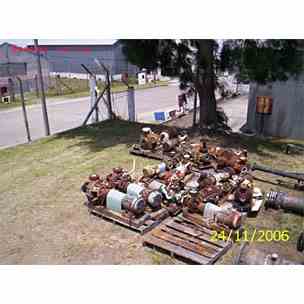

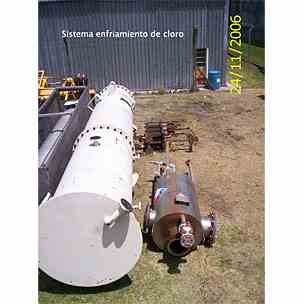

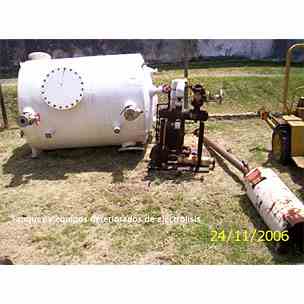

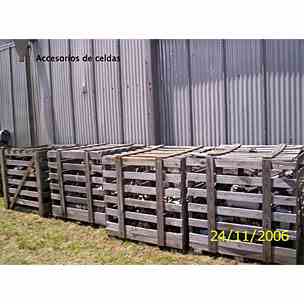

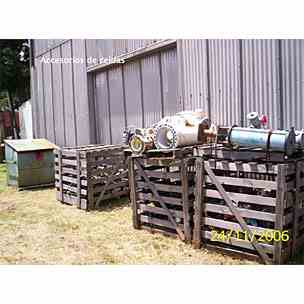

(11) Chlorine Engineers DCM-404 Electrolysers (Actually 22 cells) (1) Thyristor Rectifier- 3612 KW, 84 V, 43 KA (1) Thyristor Polarizing Rectifier- 1.1 KW, 55 V, 20 A (3) Spare Anodes Titanium Equipment: (1) Titanium Gr. 2 Dechlorine Column (1) Titanium SCH Reactor (1) 1000 Gal. Titanium SCH Reactor Vessel (2) 59.4 sq. ft., 25 plates, gasket-EPDM, Titanium Chlorine Gas Cooler (2) 367 sq. ft., 144 plates, 0.6 mm thick gasket-EPDM, SCH Titanium Cooler
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
1987
Year Shut
2002
Capacity
78 TPD
