Trimethylammonium Chloride Plant - 30 TPD
Stock # 240
Capacity 30 TPD
Products Trimethylammonium Chloride, Trimethylamine, TMA-HCl
Sold

Overview

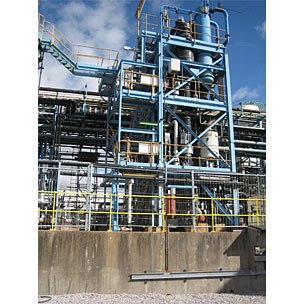

Phoenix Equipment Corporation has this used Trimethylammonium Chloride (TMA-HCl) plant immediately available. This unit is a part of a Choline Chloride (CC) plant (plant # 239). It was constructed in 2000 and produced 70% TMA-HCl which can be used as raw material for the productions of CC, starch modifiers and cationic monomers. The unit has the reaction of TMA with HCl in a reactor. The reaction product is brought to the correct concentration by evaporation of water in a separate vacuum enamel lining evaporator. The amount of heat is controlled by an analyzer. The whole process is continuous. The product flows to a batch tank and after analyzing to a storage tank or to the truck loading. The process can be highly automated and requires a minimum of personnel.The yield on key raw materials is: HCl 100%, TMA 98% (2% receycled).

Major Equipment

This Trimethylammonium Chloride Plant for Sale at Phoenix Equipment comes complete with the following equipment.
Shell & Tube Heat Exchangers
Plate Heat Exchangers
Stainless Steel Reactors
Glass Lined Reactors
Stainless Steel Tanks
Pumps
Valves
Share
SPECIFICATIONS RESOURCES
Year Built
2000
Year Shut
2006
Capacity
30 TPD
