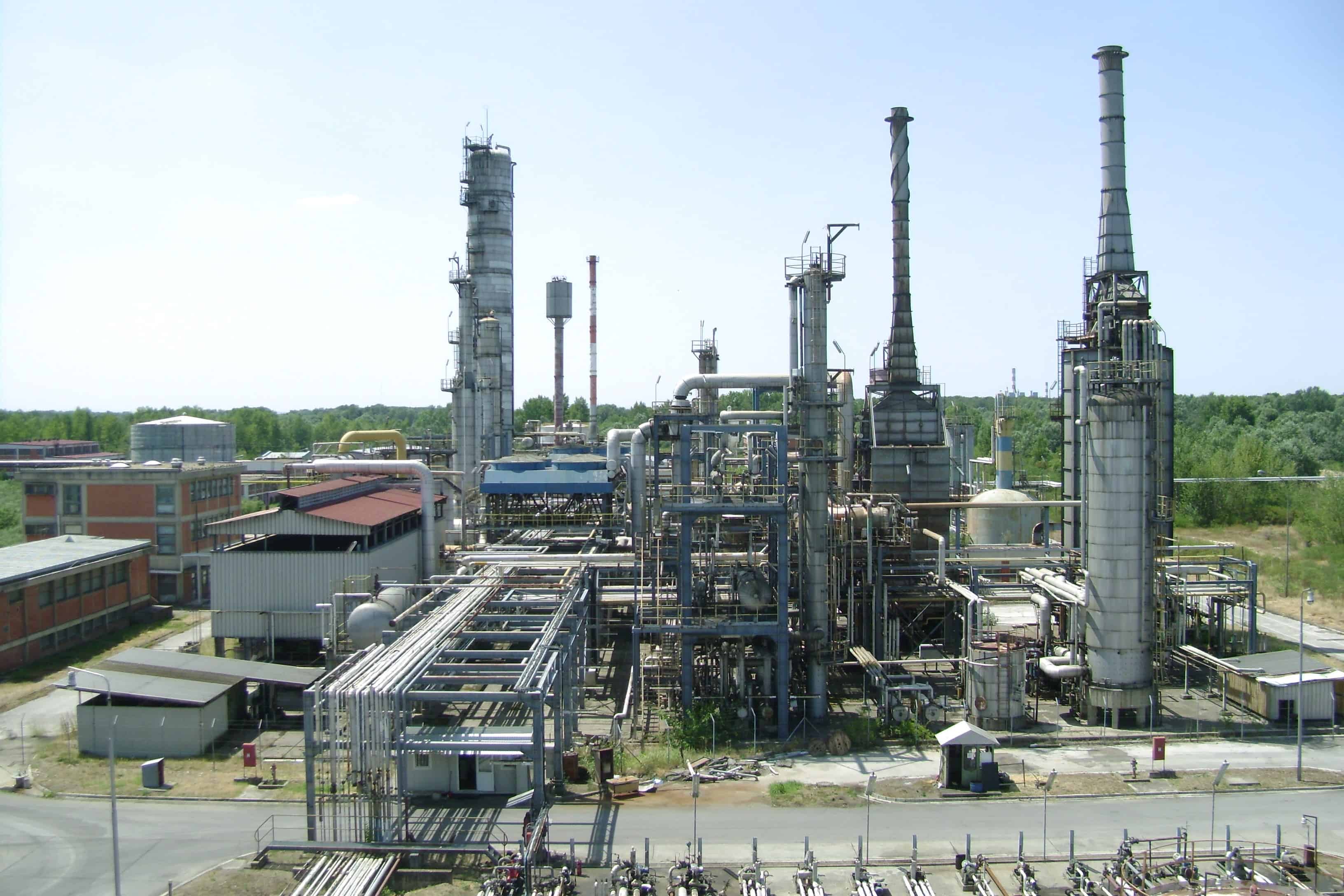

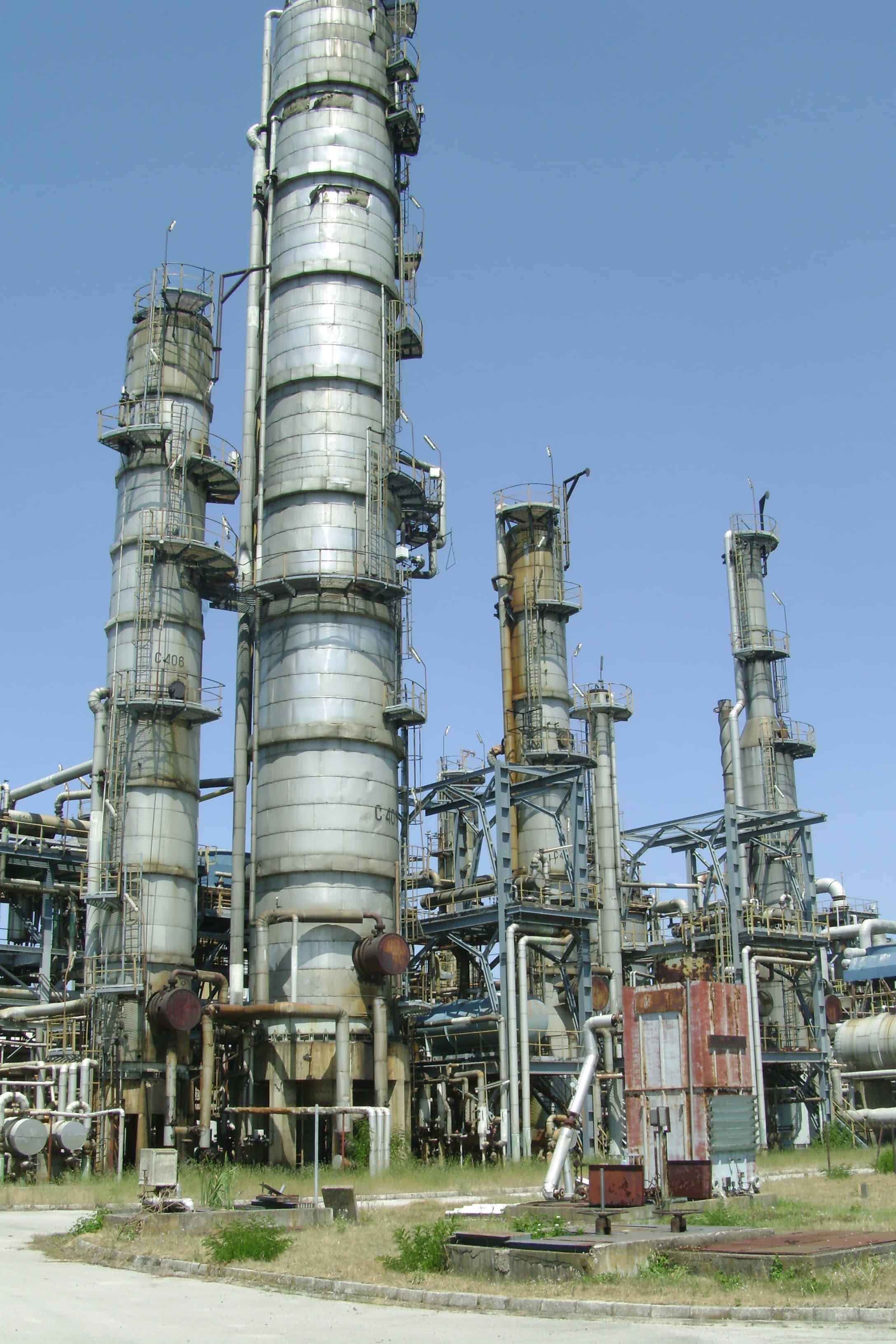

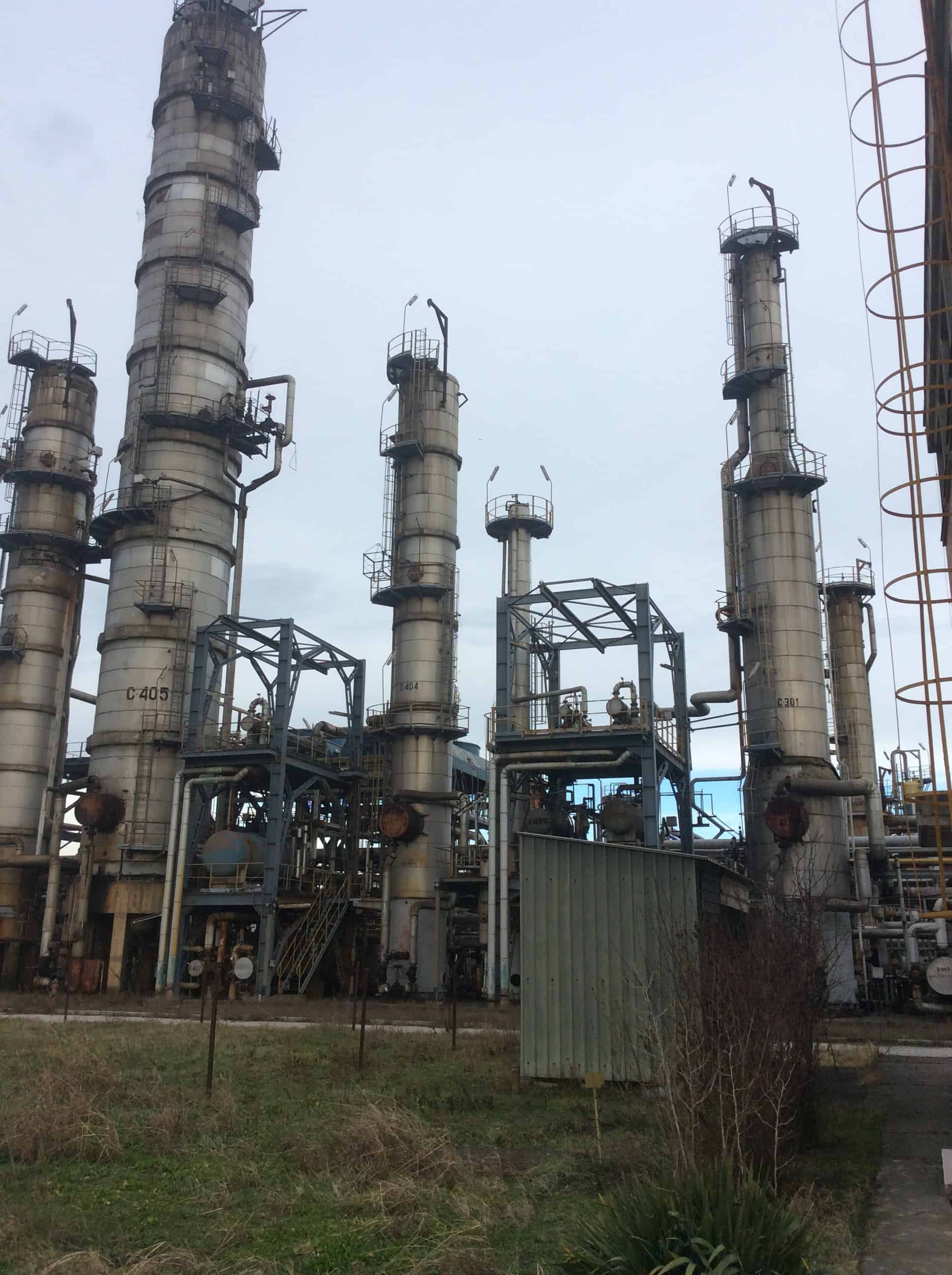

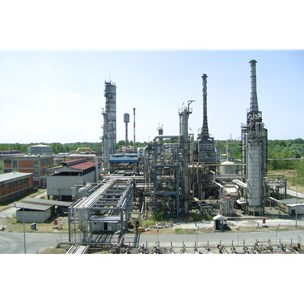

Linear Alkyl Benzene (LAB) Plant - 50,000 TPY
Other Views - click image for larger view
Linear Alkyl Benzene (LAB) Plant - 50,000 TPY Linear Alkyl Benzene (LAB) Plant - 50,000 TPY Linear Alkyl Benzene (LAB) Plant - 50,000 TPY Linear Alkyl Benzene (LAB) Plant - 50,000 TPY

Linear Alkyl Benzene (LAB) Plant - 50,000 TPY

Stock # 415
Capacity 50,000 TPY
Products Linear Alkyl Benzene (LAB)

Overview

Used Linear Alkyl Benzene (LAB) Plant built in 1989. This complete Linear Alkyl Benzene (LAB) plant includes three process stages: (1) Dehydrogenation of normal paraffins (pacol process), (2) Detergent alkylation (HF alkylation process), (3) Neutralization. PACOL technology is process of selective dehydrogenation of linear paraffins having high purity into mono-olefins. Process is carried out in reactor with fixed catalyst bed, where catalyst contains platinum. Reaction is performed in a hydrogen free environment, on low pressure and moderately high temperatures. Detergent alkylation is the process in which alkylation of benzene and linear mono-olefins takes place in the presence of HF acid as a catalyst in order to produce linear alkyl benzene. Due to the specificity of the process and the use of HF acid as a catalyst, and a large recycle flow of paraffins and benzene, the alkylation is divided into two basic sections: acidc process and distillation. The neutralization stage is used for collection and neutralization of liquid and gas waste flows that contain traces of hydrofluoric acid. The waste flows are generated at the HF alkylation plant. Neutralization is made with lime solution.

Major Equipment

- PACOL unit reactors

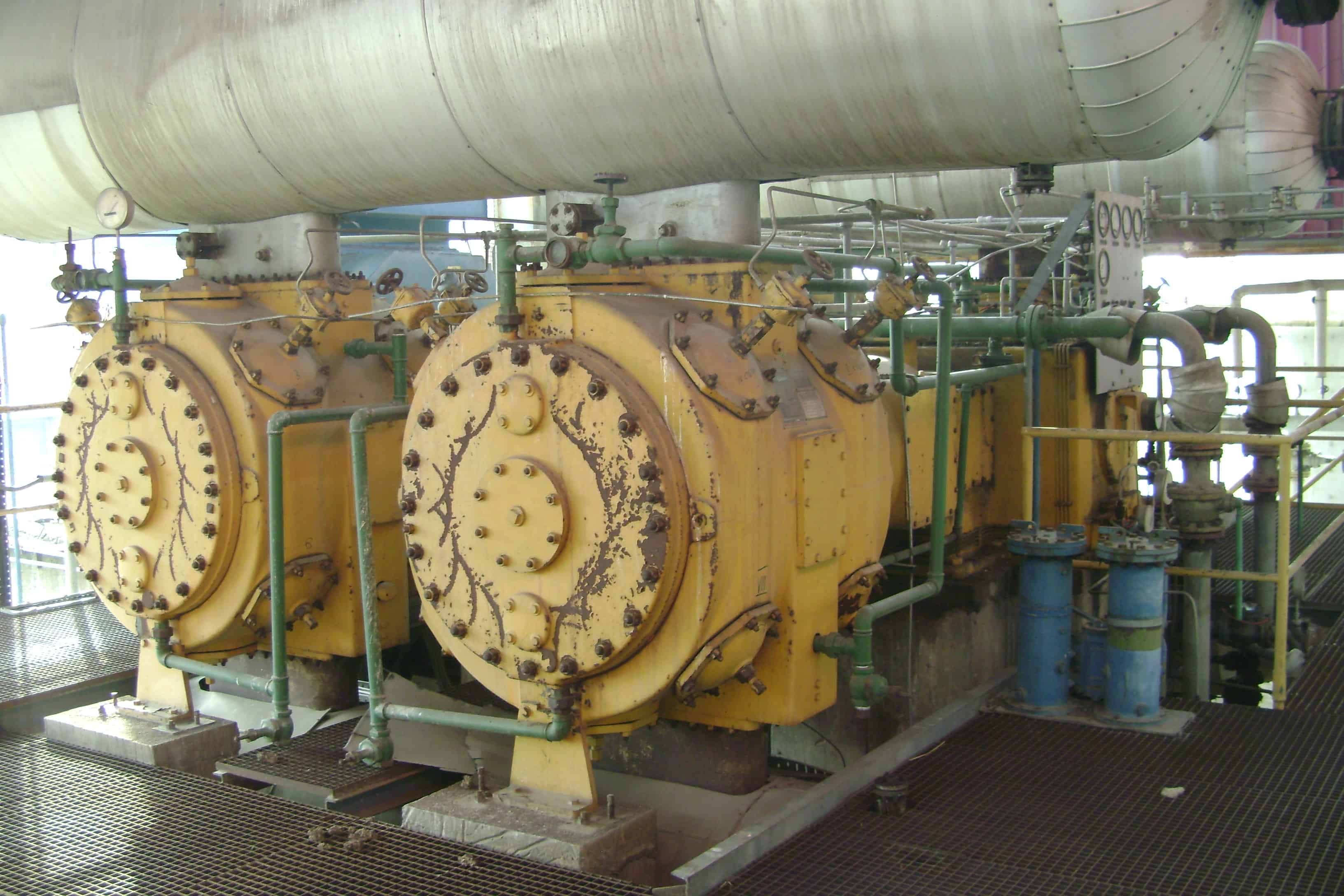

- Hydrogen compressors

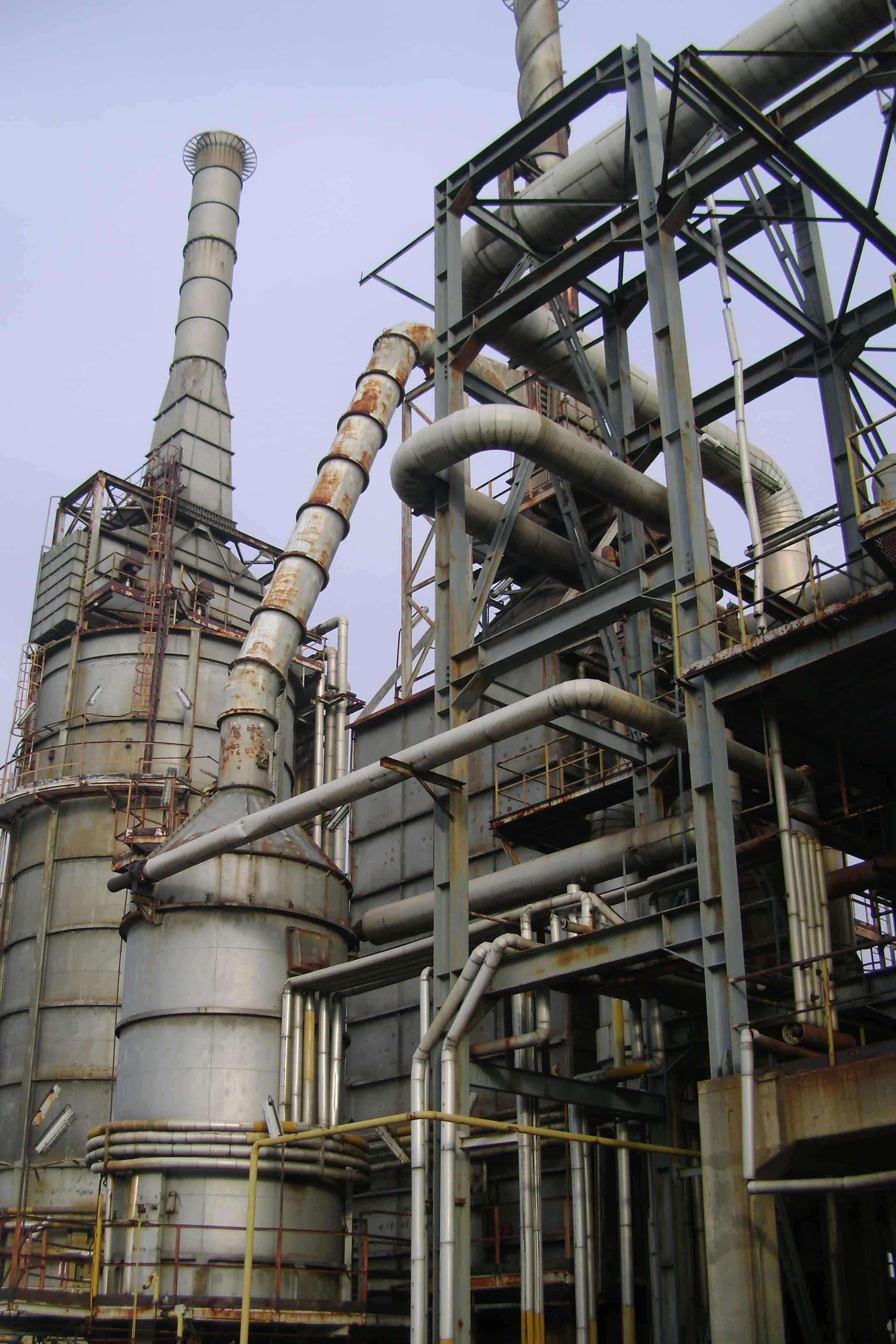

- Paraffin / hydrogen furnace
- PACOL unit separator
- Benzene drying column
- Sedimentation tank
- HF alkylation reaction mixer
- Alkylation reactors
- HF regeneration column
- HF stripper column
- Benzene column
- Paraffin column
- Re-distillation column
- Benzene stripper column
- Rinsing system
- Neutralization vessel
- Scrubber
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
1989
Year Shut
1999
Capacity
50,000 TPY
