Spandex Plant - 6,300 TPY

Stock # 306
Capacity 6,300 TPY
Products Spandex

Overview

Used 6,300 TPY Spandex plant built in 1994. This dry spin plant produces spandex in denier range of 10 - 1680. The plant includes 168 spinning cells (6 spinning sub systems, 28 spinning cells per sub system, 16 or 24 positions per cell), polymerization equipment, solvent recovery unit and utility equipment (4 boilers, 8 chillers, 5 air compressors with dryers, 5 cooling towers). Raw materials for production: S17 and S85 fiber polymers, PTMEG, MDI, DMAc solvent. Full technical documents available.

Major Equipment

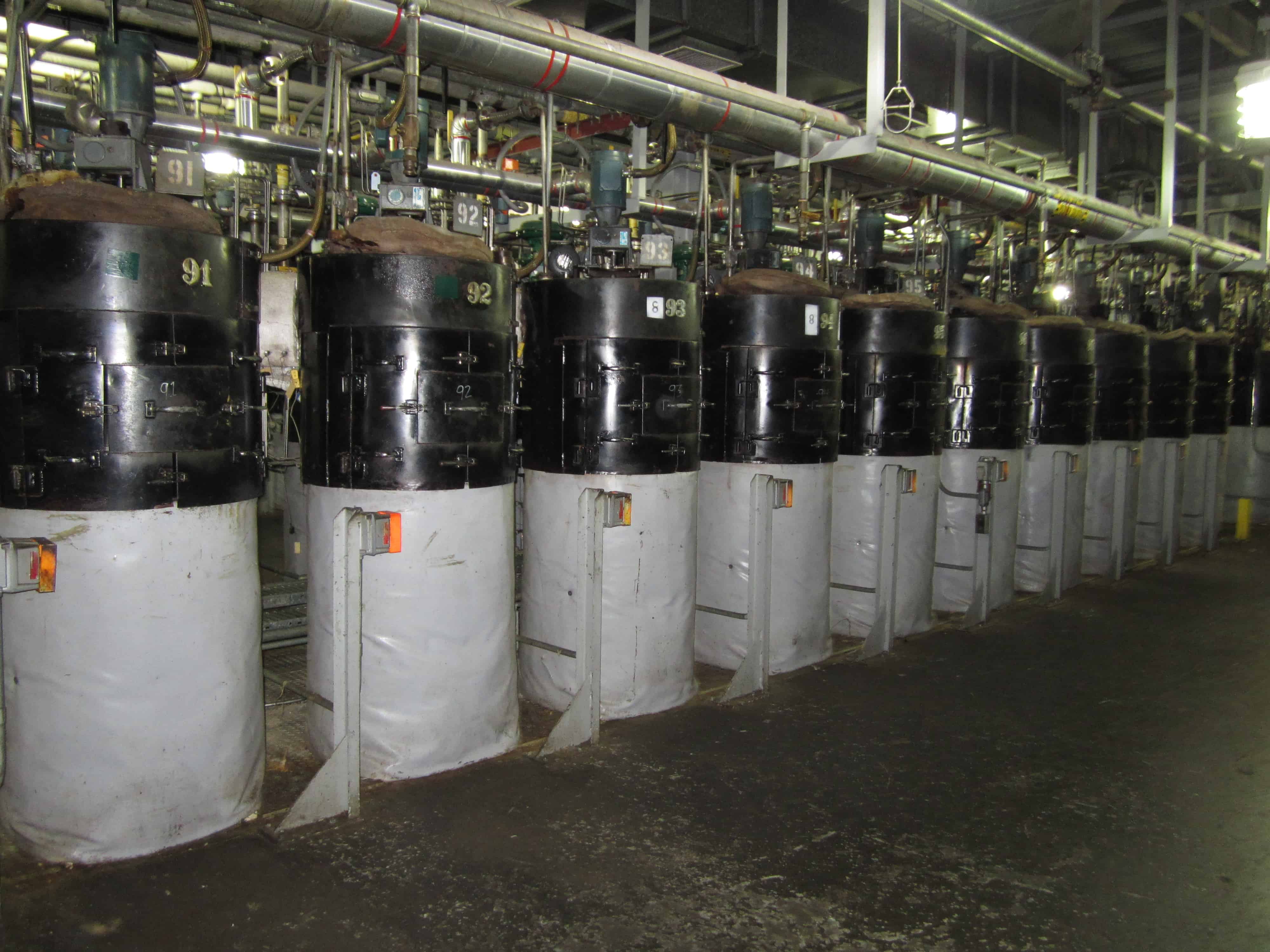

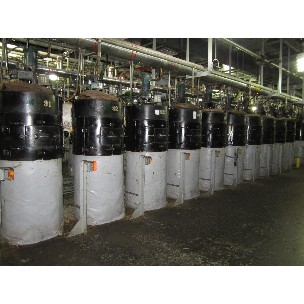

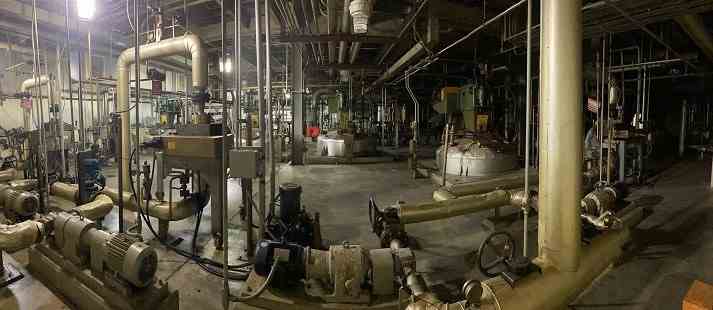

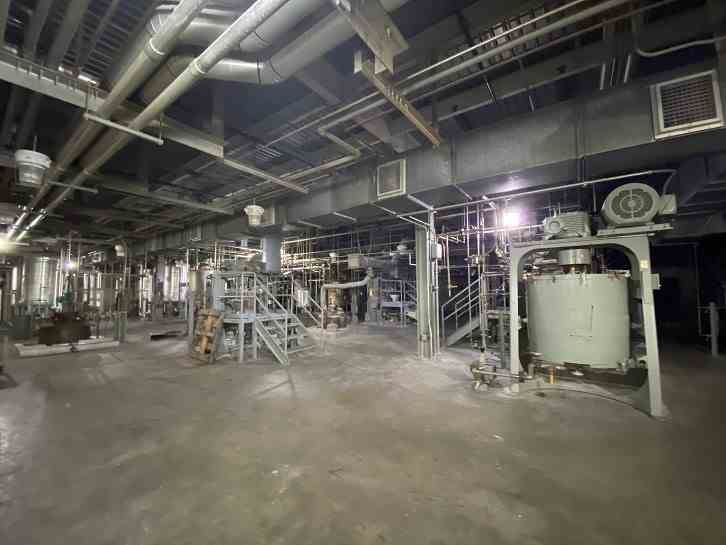

Pre-polymer reactors

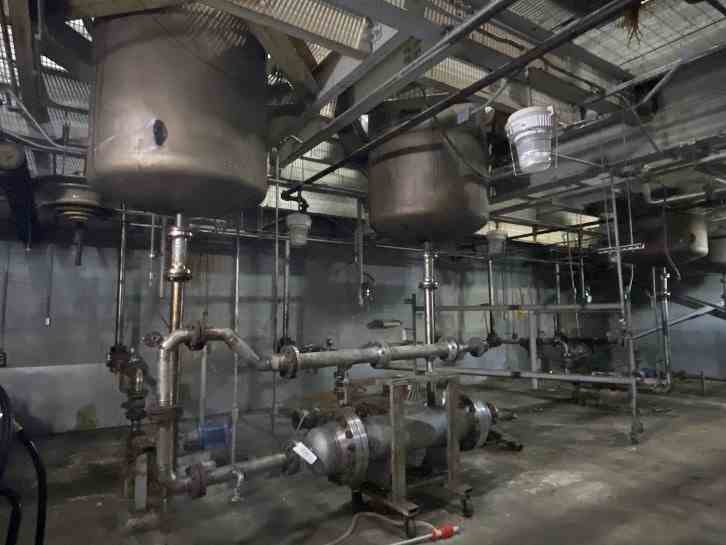

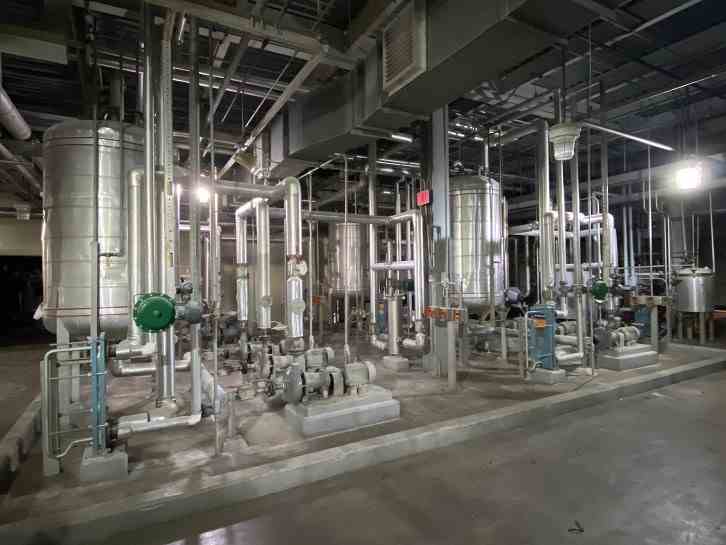

Polymer reactors

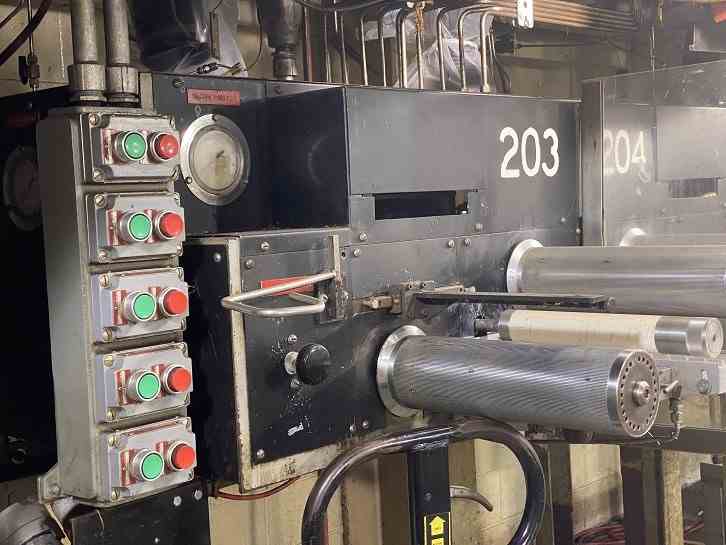

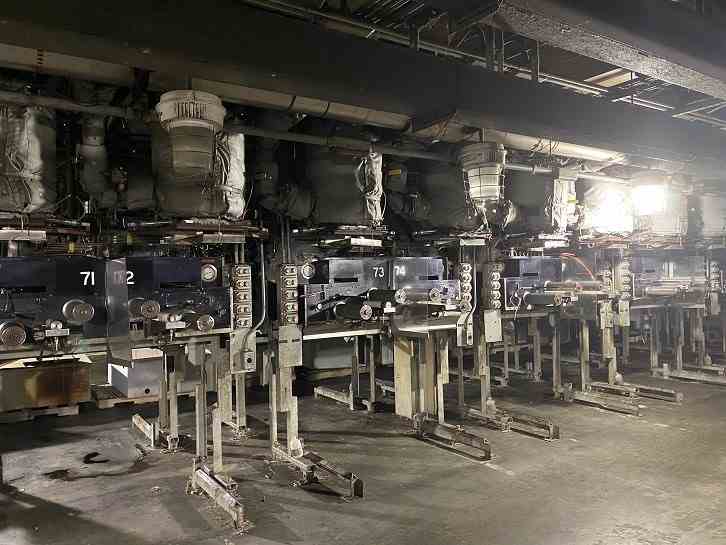

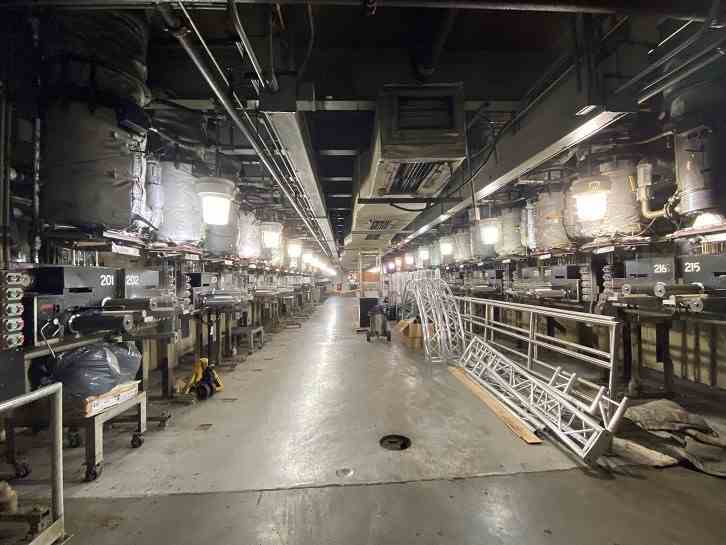

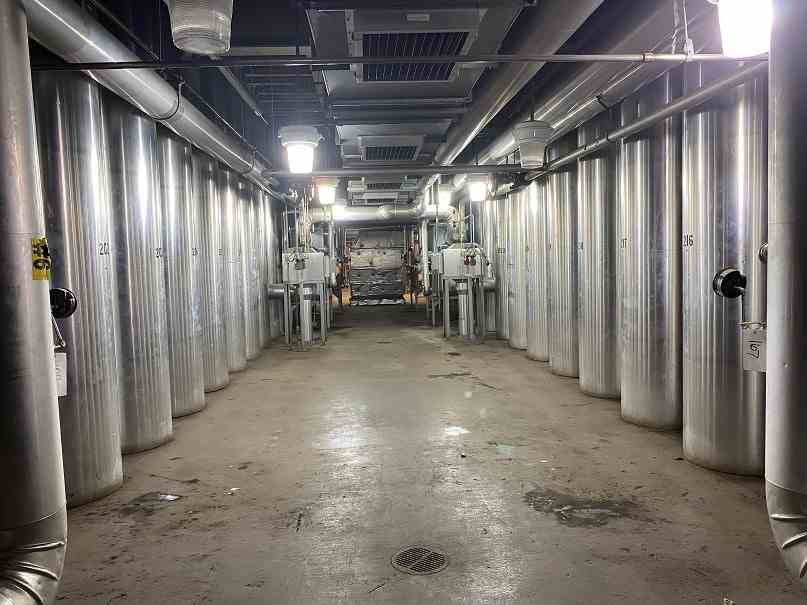

Spinning cells
Spinning sub systems

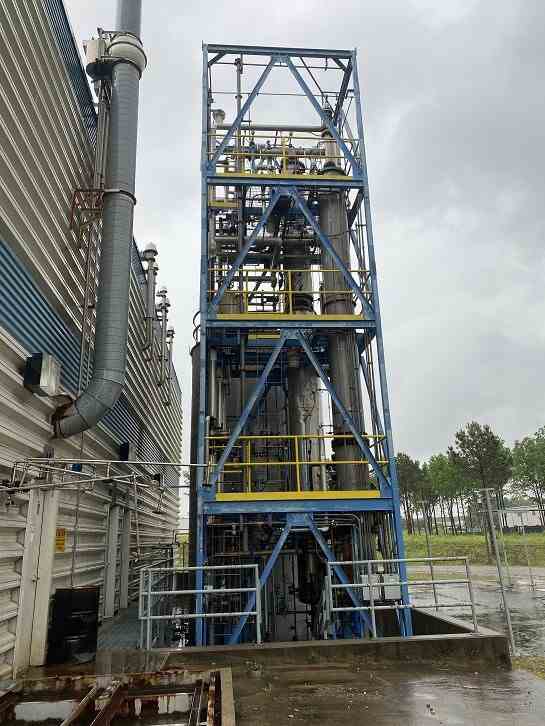

Solvent recovery distillation skid
Solvent condensers
Foxboro DCS control system

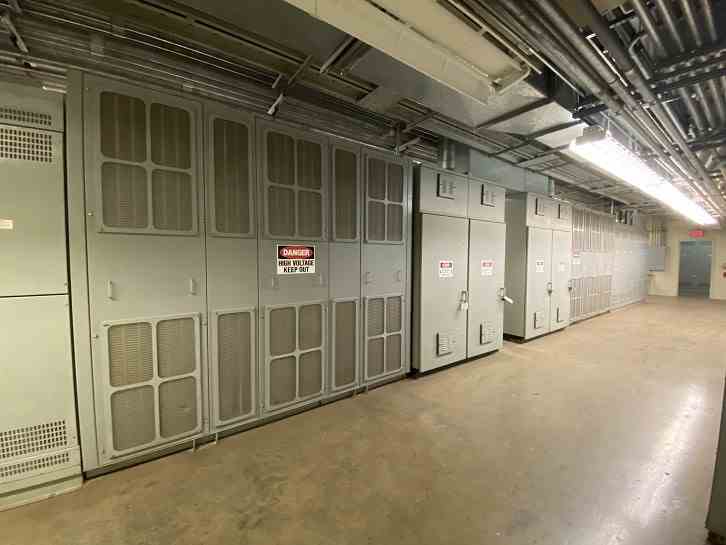

MCC equipment with Allen Bradley control
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
1994
Year Shut
2012
Capacity
6,300 TPY
Subcategory
