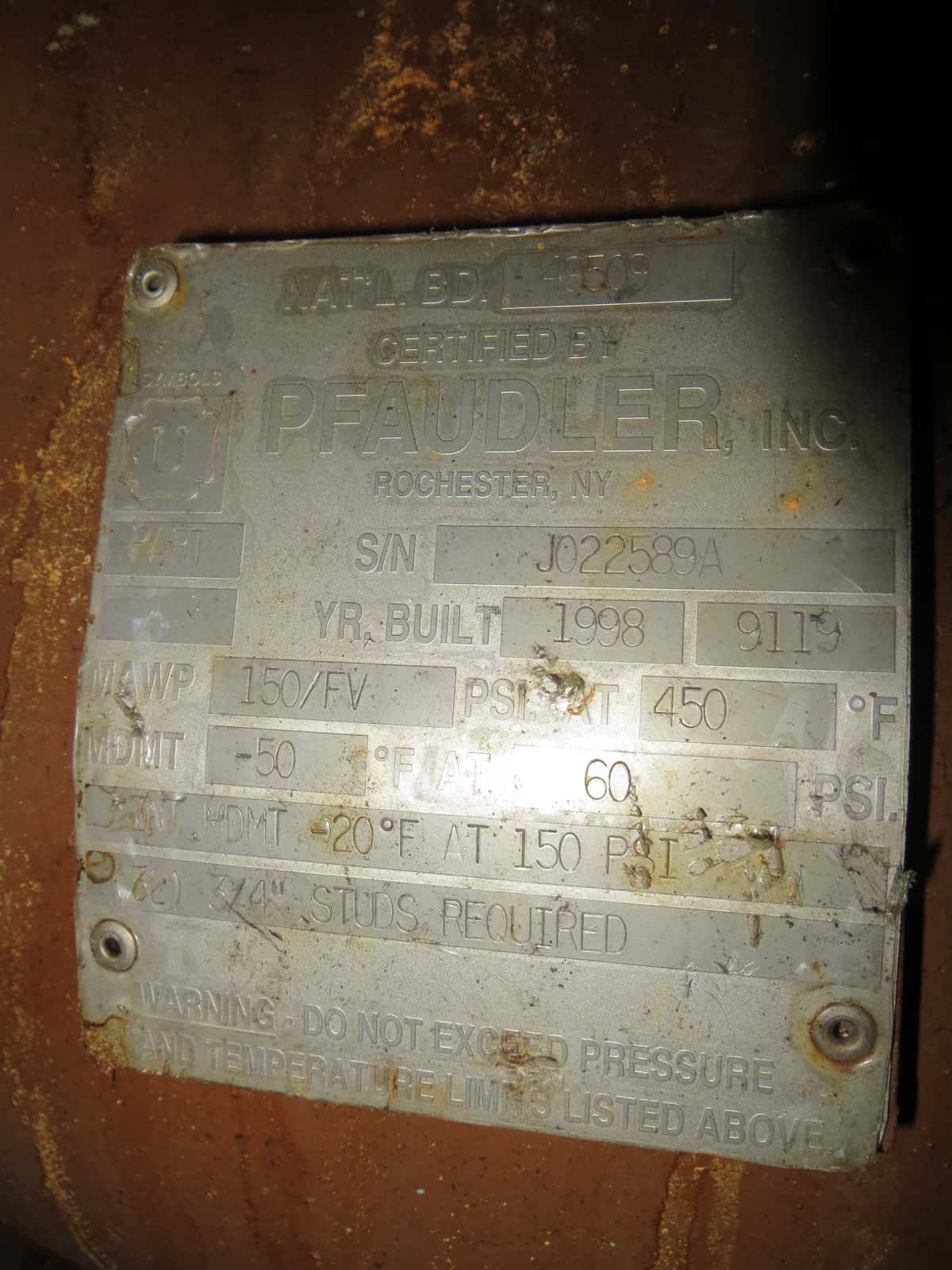

Used 100 gallon Pfaudler glass lined reactor, rated 150 psi / FV@ 450 F internal and 125 psi / FV @ 450 F on the jacket. 9119 Glass. TW drive, 3 blade reverse curve impeller agitator. 32” ID x 36 1/4” Deep. Serial # J022589, National Board #49510, Built 1998.
Available with (additional cost): #7319-1 - Used 50 gpm reactor temperature control module, heating/cooling system, temperature norm 450 Deg. F./max 0 Deg. F, Liquid: Syltherm. Skid mounted, complete with 5 HP 316 S/S HMD Kontro sealess pump. W/R93 - Year Built: 1998
