10000 Gal Wolfe Mechanical  Stainless Steel Tank
Other Views - click image for larger view
10000 Gal Wolfe Mechanical  Stainless Steel Tank 10000 Gal Wolfe Mechanical  Stainless Steel Tank

10000 gal wolfe mechanical stainless steel tank

Stock # 21618
Capacity 10000 Gal

Overview

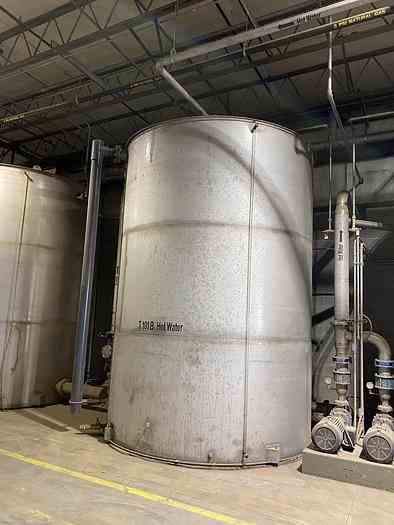

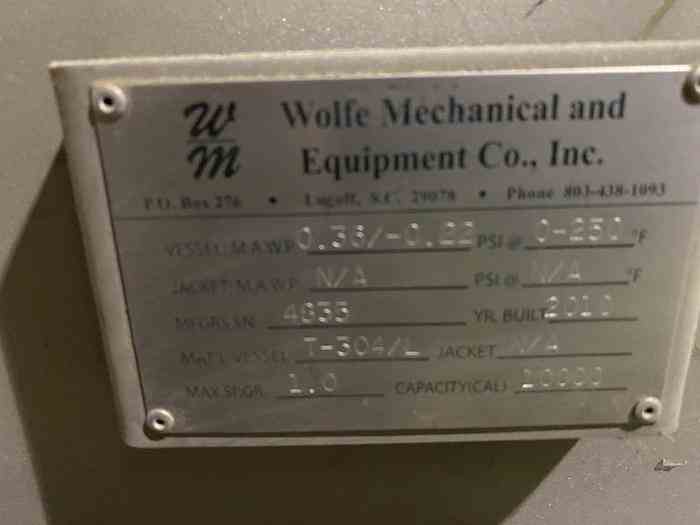

Used 10000 gallon 304L stainless steel vertical tank. Manufactured by Wolfe Mechanical. 10'9"D X 15'H straight side. Internal rated 0.36/-0.22 PSI @ 250F. Cone top, flat bottom. Top fittings: (1) 1", (1) 1.5", and (1) 3". (1) 6" and (1) 1/2" side top inlets. 24" side bottom manway. (2) 1/2", (1) 1", (1) 2", and (1) 6" side bottom outlets. Side wall and top and bottom heads 3/16" thick. Weight 6300#. S/N 4835. Built 2010. Previously stored water. Quantity 4 available.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Wolfe Mechanical
Model
na
Material
304L Stainless Steel
Capacity
10000 Gal
