100 Gal Lee Stainless Steel Kettle
Other Views - click image for larger view
100 Gal Lee Stainless Steel Kettle 100 Gal Lee Stainless Steel Kettle 100 Gal Lee Stainless Steel Kettle 100 Gal Lee Stainless Steel Kettle 100 Gal Lee Stainless Steel Kettle 100 Gal Lee Stainless Steel Kettle 100 Gal Lee Stainless Steel Kettle 100 Gal Lee Stainless Steel Kettle 100 Gal Lee Stainless Steel Kettle 100 Gal Lee Stainless Steel Kettle

100 gal lee stainless steel kettle

Stock # 19910
Sold
Capacity 100 Gal

Overview

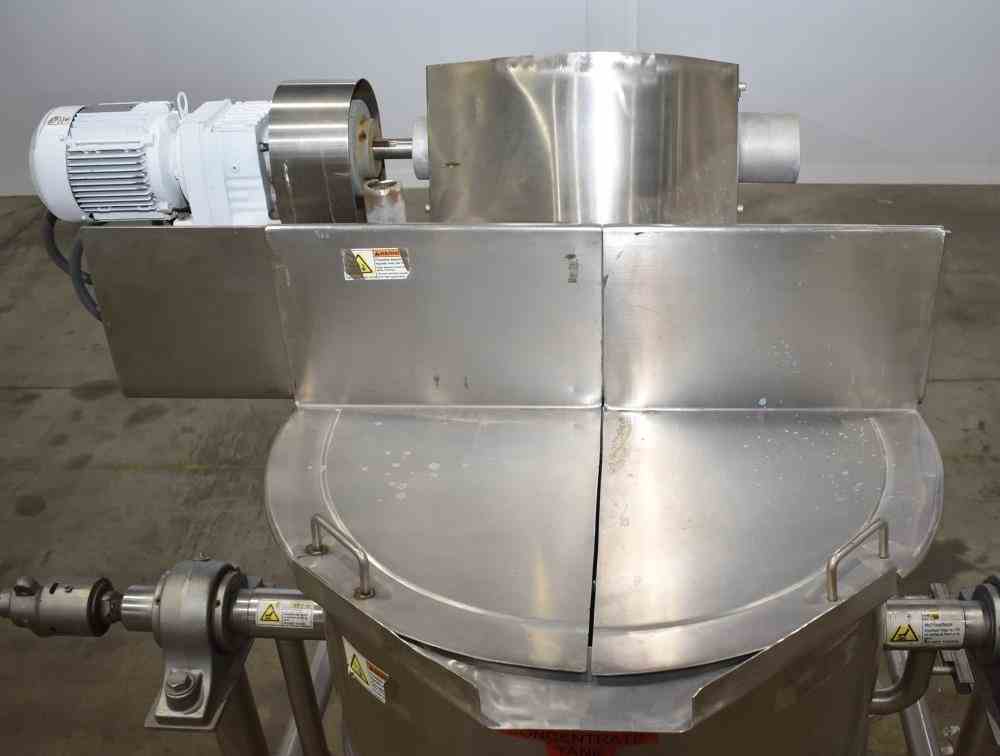

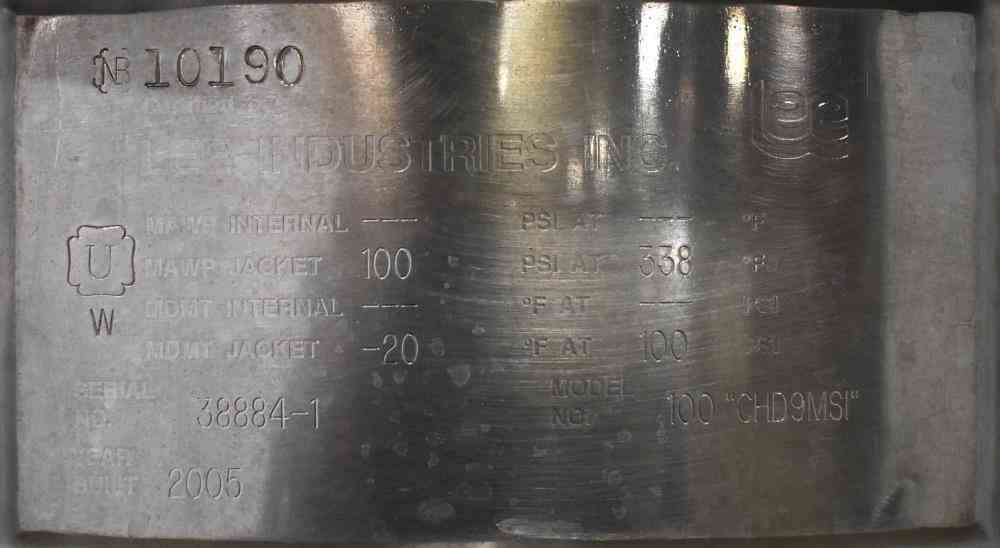

Used 100 Gallon Stainless Steel Double-Motion Inclined Trunnion Kettle. Manufactured by Lee. Model 100 CHD9MSI. 36" diameter x 30" deep. Flat top with (2) 1/4th covers, hemispherical bottom. Jacket rated 100 PSI at -20 to 338 degrees F. Top agitator bridge with dual motion agitator, anchor style with side scrapers and stationary bars, inner bar agitator. Driven by a 2hp, 3/60/230/460 volt, 300-1800 rpm gear motor, 26.70 to 1 ratio. Approximate 2-1/2" diameter bottom outlet. Hydraulic tilt. Mounted on (4) legs. National Board# 10190, Serial# 38884-1, Built 2005.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Lee
Model
100 CHD9MSI
Material
Stainless Steel
Capacity
100 Gal
