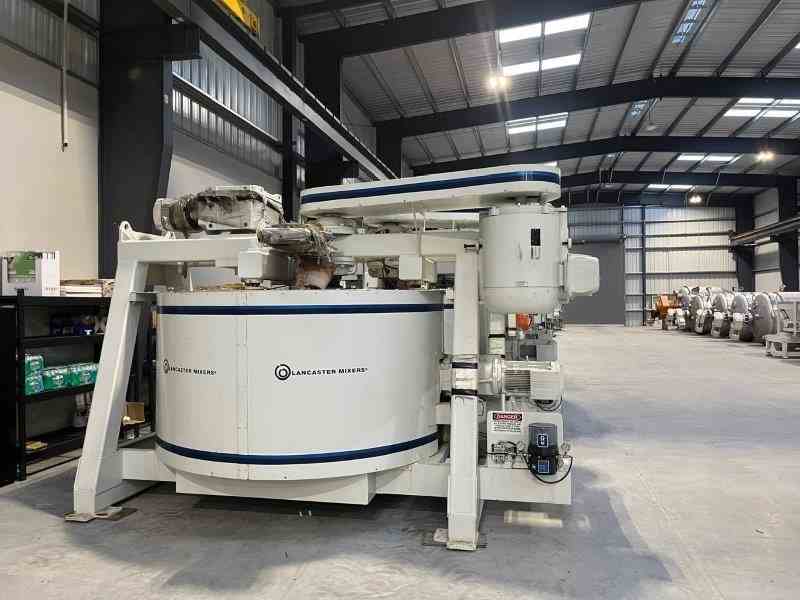

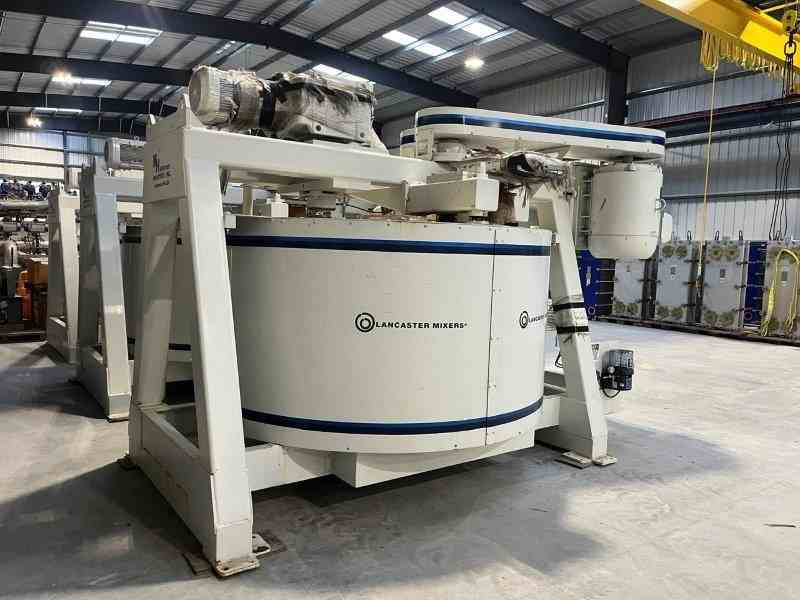

125 HP Lancaster K-8 High Intensity Mixer
Other Views - click image for larger view
125 HP Lancaster K-8 High Intensity Mixer 125 HP Lancaster K-8 High Intensity Mixer 125 HP Lancaster K-8 High Intensity Mixer 125 HP Lancaster K-8 High Intensity Mixer 125 HP Lancaster K-8 High Intensity Mixer 125 HP Lancaster K-8 High Intensity Mixer

125 hp lancaster k-8 high intensity mixer

Stock # 19765
Capacity 125 HP

Overview

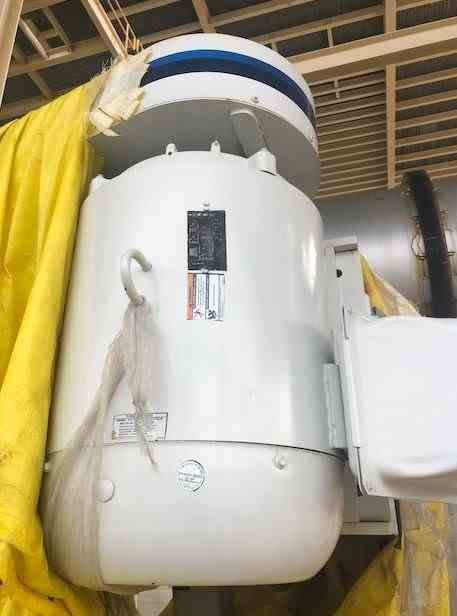

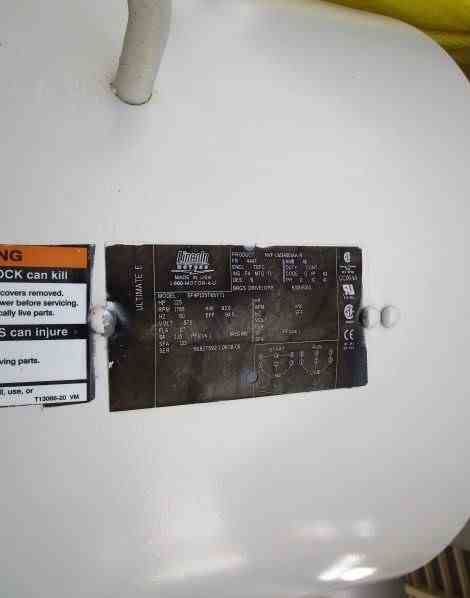

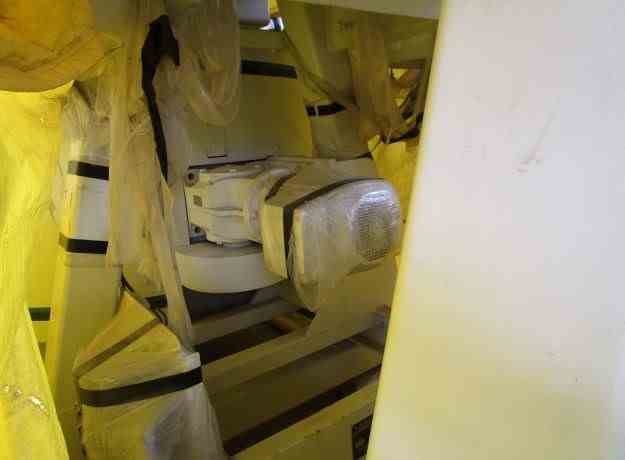

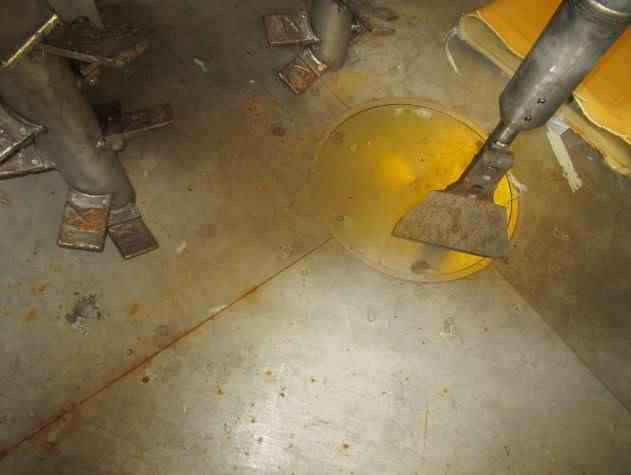

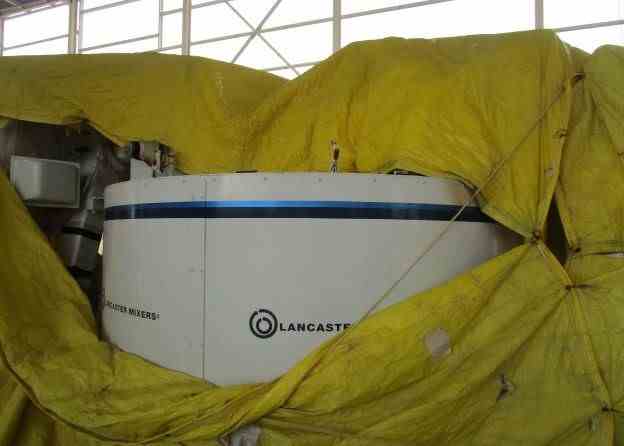

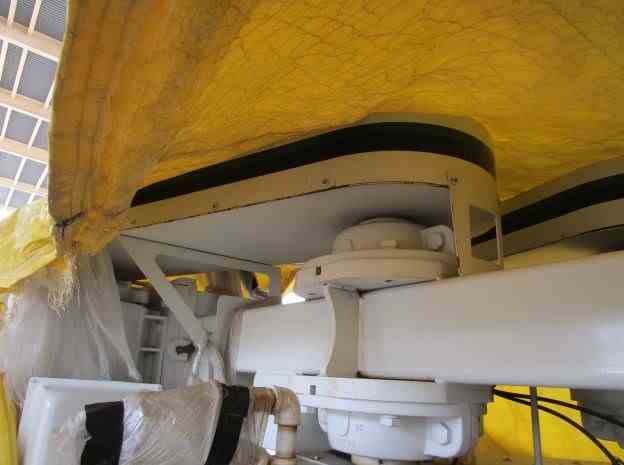

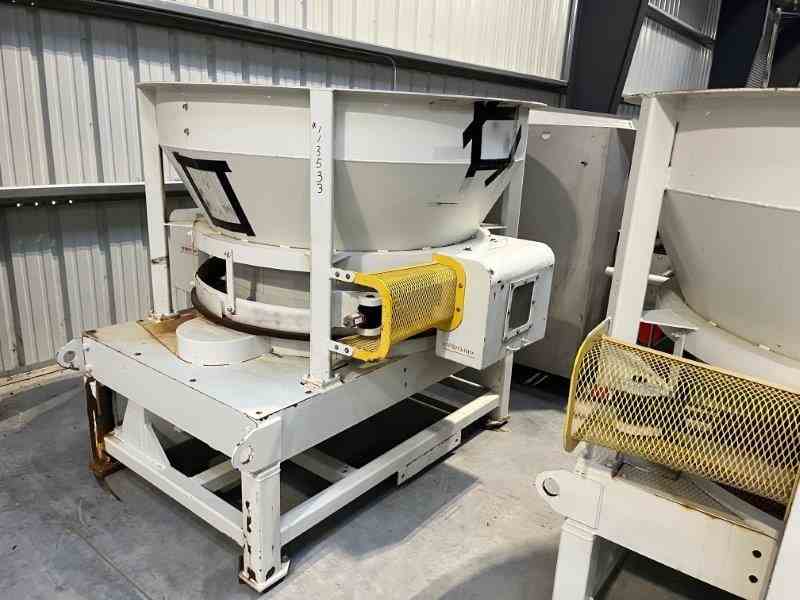

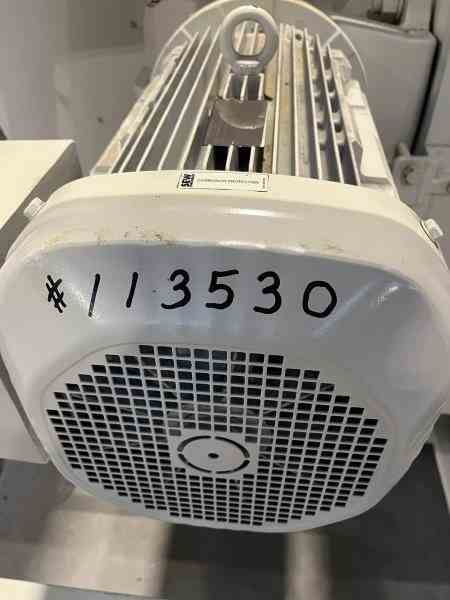

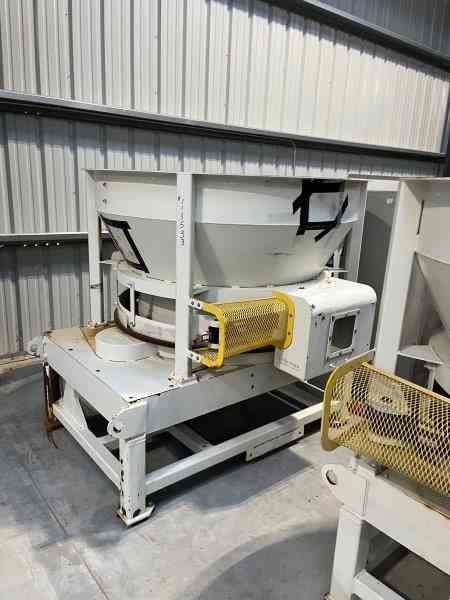

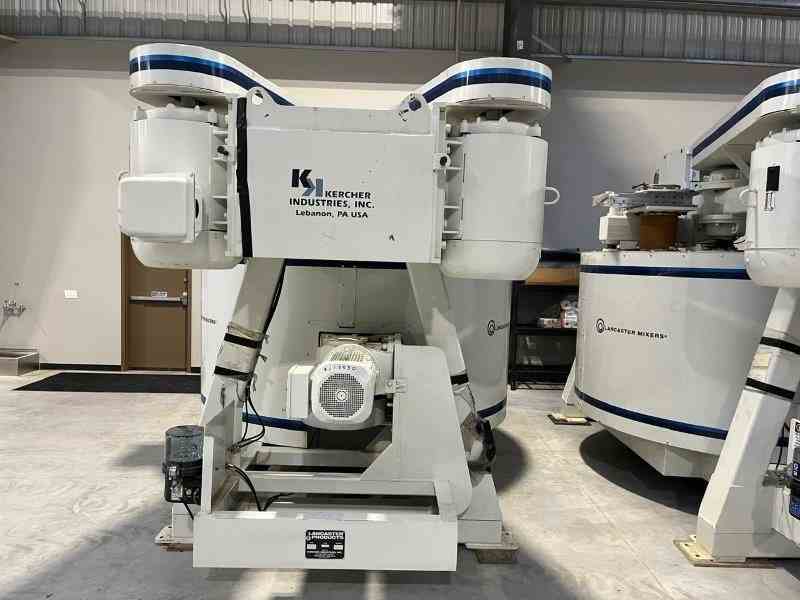

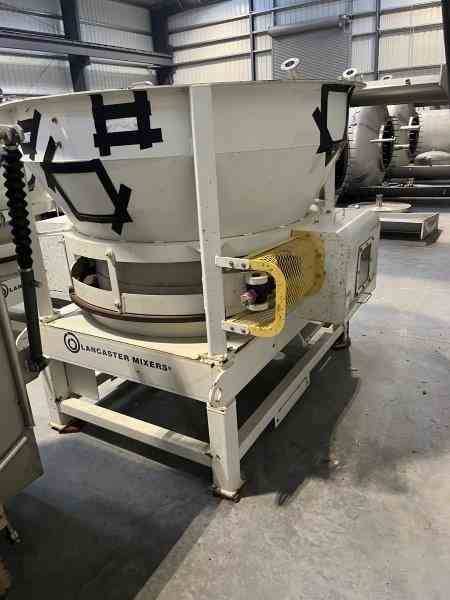

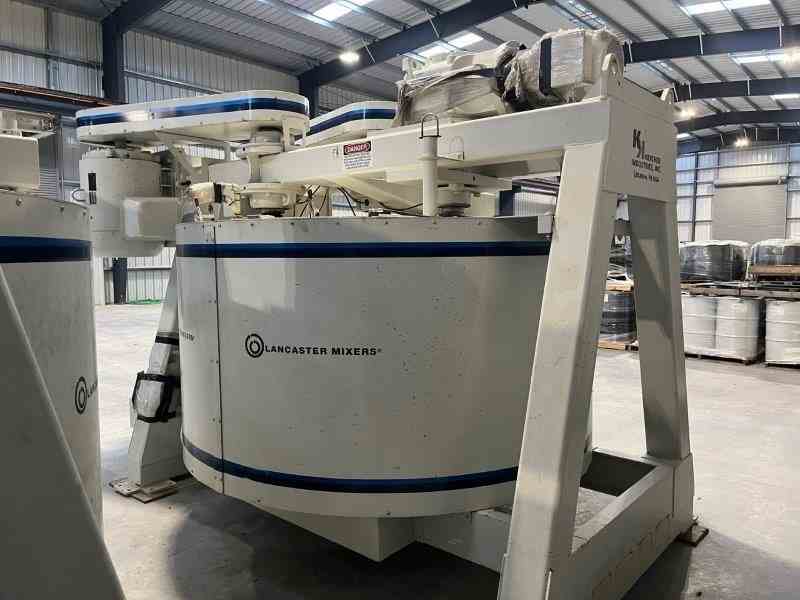

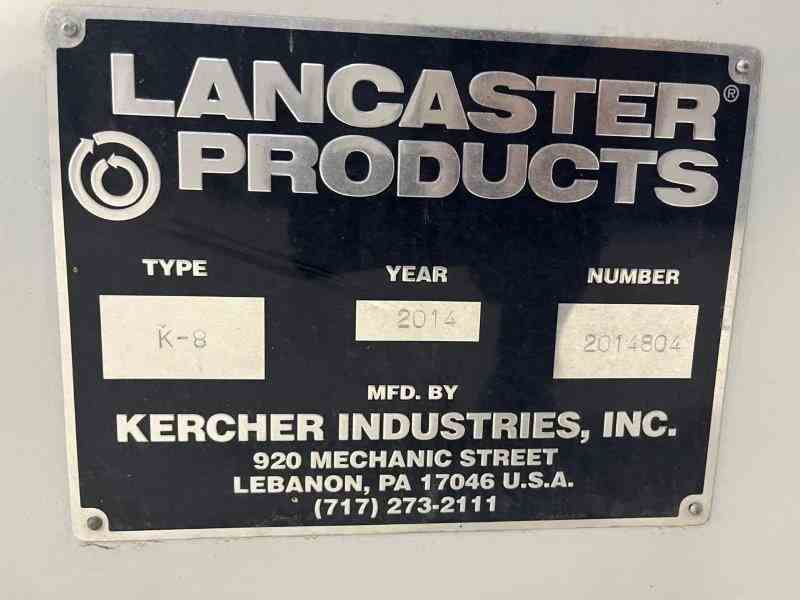

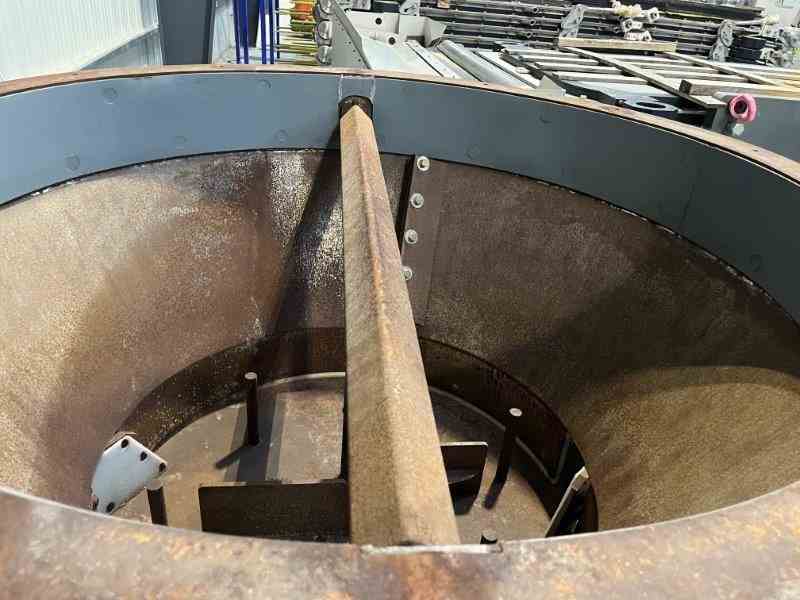

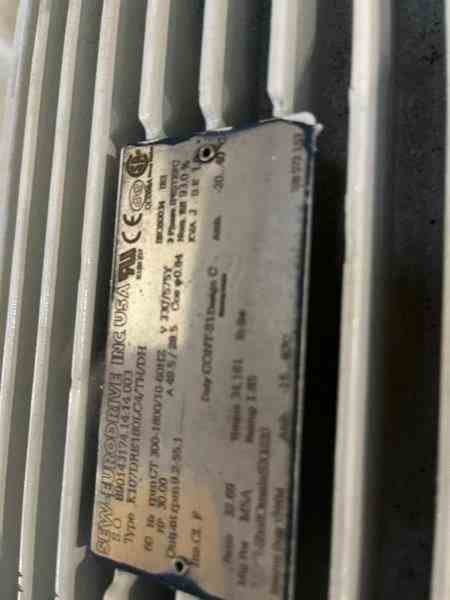

Unused 125 HP High Intensity Mixer. Manufactured by Lancaster. 9'7 3/8" Height x 13'6" Length x 8'9 1/2" Wide. Dual Rotor High Intensity Mixer Type. 3000 liters maximum batch capacity. 1680 kg of damp sulfur mix at a nominal loose bulk density of 560 kg/m3. 105 Cubic Feet Maximum Mixer Working Capacity, 10,500 lbs (Material Density of 100 lbs/cuft). Carbon Steel with a 316 Stainless Steel Liner. (2) 125 HP, 575 Vac./ 3 ph./ 60 Hz. High Speed Rotor Drive (Belt Drive). 30 HP, 575 Vac./ 3 ph./ 60 hz. Mixing Pan Drive (Gear Type). 30 HP, 575 Vac./ 3 ph. / 60 hz. Plow Drive (Gear Type). Bottom Hydraulically Operated Pan Discharge Valve. Rotating pan and a counterclockwise rotating mixing plow. Three-dimensional macro mixing streams, two stationary side scrapers into the two counterclockwise rotors for high-intensity mixing. Model K-8. Built in 2014. 3 units available.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Lancaster
Model
K-8
Material
Unknown
Capacity
125 HP
Category
