Sweco 11 Gal 316L Stainless Steel Vacuum Pan Dryer
Other Views - click image for larger view
Sweco 11 Gal 316L Stainless Steel Vacuum Pan Dryer Sweco 11 Gal 316L Stainless Steel Vacuum Pan Dryer Sweco 11 Gal 316L Stainless Steel Vacuum Pan Dryer Sweco 11 Gal 316L Stainless Steel Vacuum Pan Dryer

sweco 11 gal 316l stainless steel vacuum pan dryer

Stock # 16801
Sold
Capacity 11 Gal

Overview

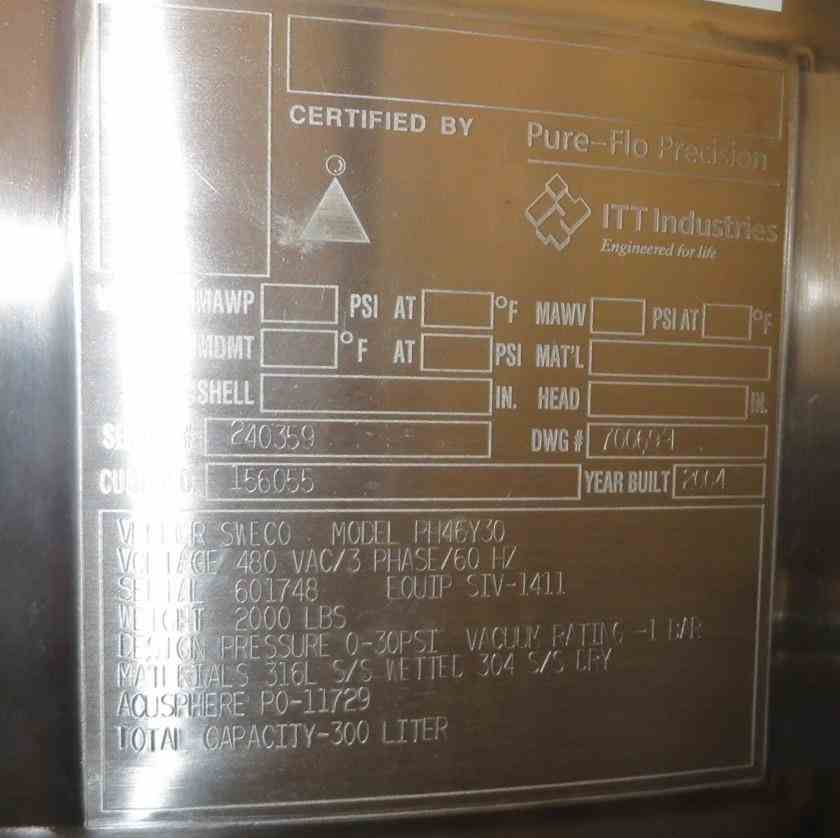

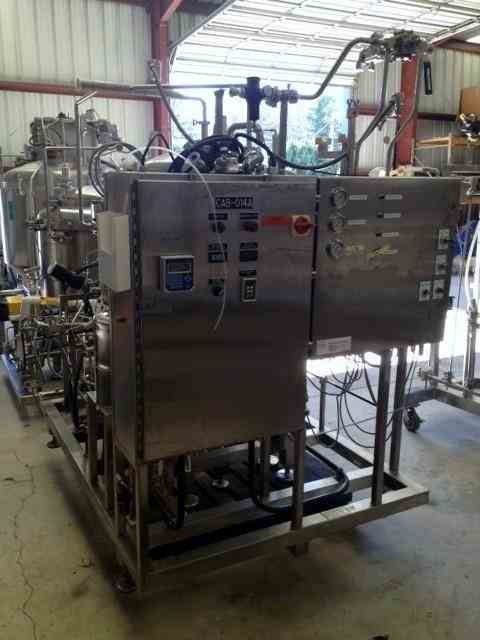

Used 11 Gallon Sweco PharmASep Vibro-Energy Filter Pan Dryer. Model PH46Y30, 316L Stainless Steel. Sanitary design rated 0-2 bar (0-30 psi), vacuum -1 bar (-15 psi). Batch processing capacity solids up to 25kg (55 pounds). Above 30" diameter scalping screen capacity 11.01 gallons (1.47 cubic feet), between scalping and 46" diameter product screen capacity 31.3 gallon (4.18 cubic feet), capacity below 46" diameter product screen 38.5 gallon (5.19 cubic feet). Screens not included. Driven by a 2.5 hp motor. Includes a 300 Liter vessel Certified by Pure-Flo Precision, Serial# 240356, Built 2004. Internal rated 30 psi, vacuum rating -1 bar, control panel, and a Watson Marlow pump, Model 624U. Mounted on frame. Sweco Serial# 601748.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Sweco
Model
PH46Y30
Material
316L Stainless Steel
Capacity
11 Gal
Category
