IKA Works 2000 150 HP Homogenizer
Other Views - click image for larger view
IKA Works 2000 150 HP Homogenizer IKA Works 2000 150 HP Homogenizer IKA Works 2000 150 HP Homogenizer IKA Works 2000 150 HP Homogenizer IKA Works 2000 150 HP Homogenizer

ika works 2000 150 hp homogenizer

Stock # 12205
Sold
Capacity 150 HP

Overview

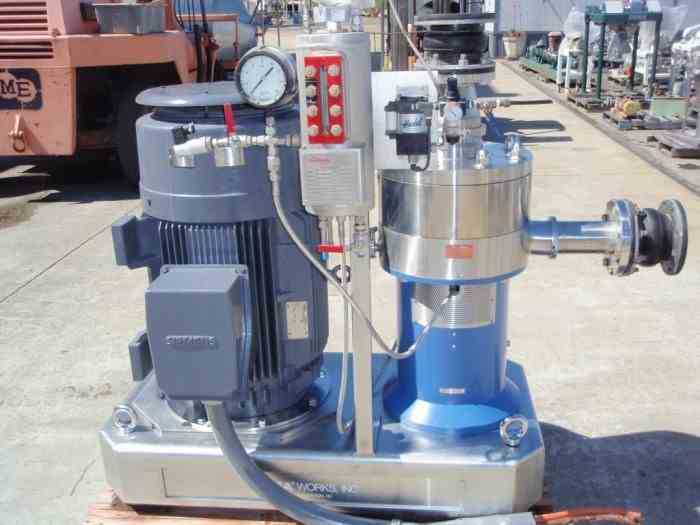

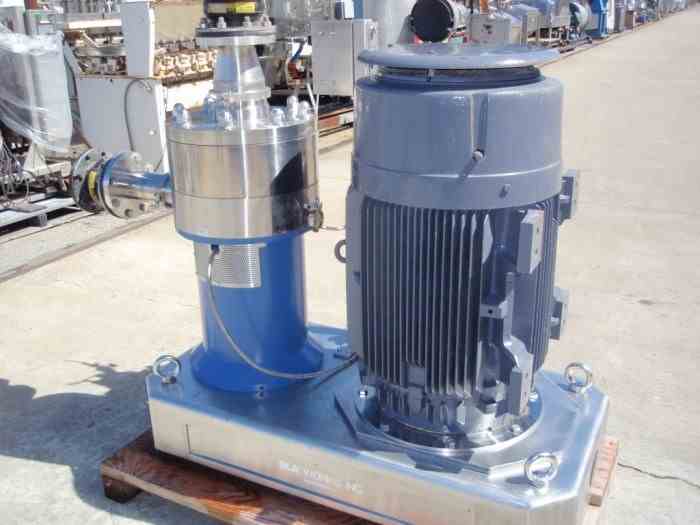

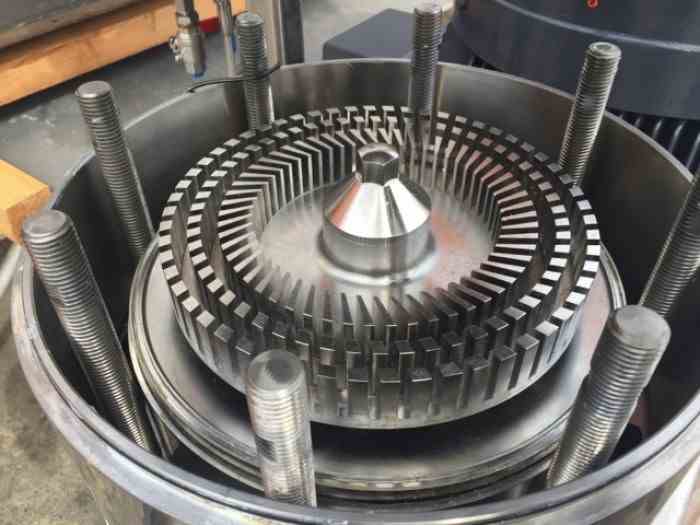

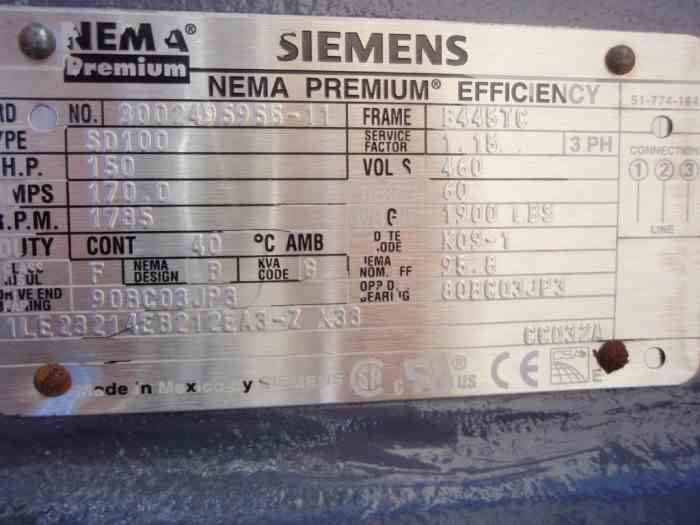

Used DISPAX REACTOR, High shear mixer, inline, manufactured by IKA Works, 2000 series, type DR2000/40, stainless steel contacts, 11" diameter milling chamber, 6" diameter inlet, 4" diameter outlet, Model number P012237. Belt driven high-shear mixer, 150 HP, 1785 RPM, 460V, 3/60hz motor. Complete with Flowserve seal reservoir, rated for 960 PSI @ 100 deg. F. Rated for up to 300 GPM (water @ 70 deg. F); 4,290 FPM tip speed; 27,300 s-1 shear rate at each rotor/stator set; 0.03" radial gap. Three stage dispersing machine for micro-emulsions and very fine suspensions. Unitized on common stainless steel base. Serial# 2228-09. Very good condition.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
IKA Works
Model
2000
Material
SS
Capacity
150 HP
Subcategory
