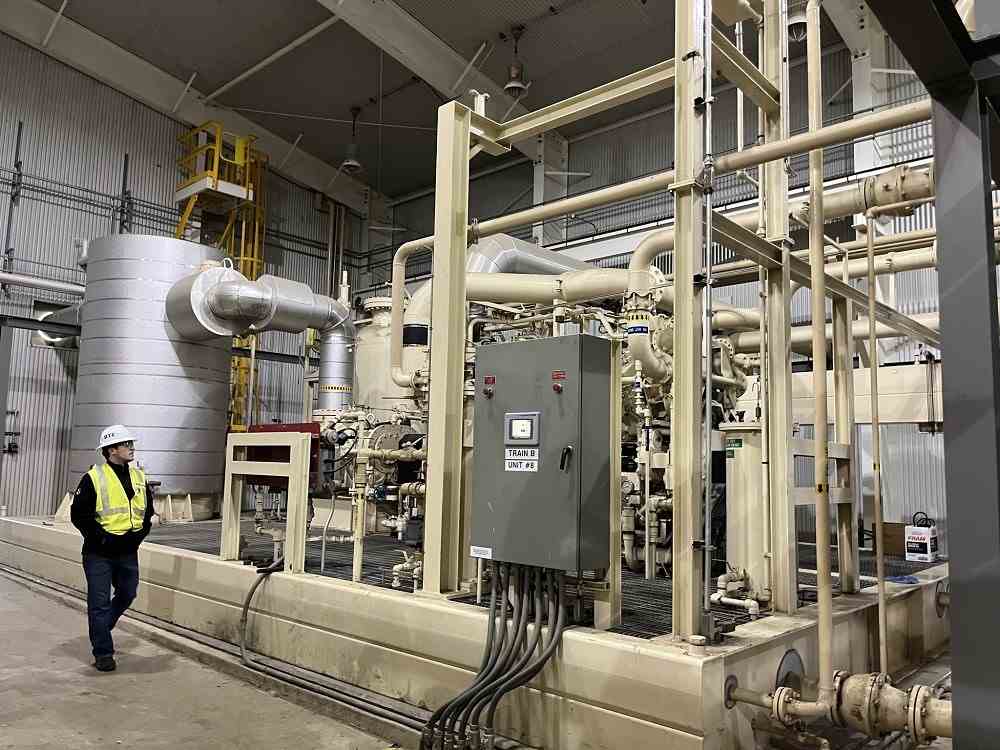

215 CFM Hydrocarbon Dew Point Control Compressor Package
Other Views - click image for larger view
215 CFM Hydrocarbon Dew Point Control Compressor Package 215 CFM Hydrocarbon Dew Point Control Compressor Package 215 CFM Hydrocarbon Dew Point Control Compressor Package 215 CFM Hydrocarbon Dew Point Control Compressor Package 215 CFM Hydrocarbon Dew Point Control Compressor Package 215 CFM Hydrocarbon Dew Point Control Compressor Package 215 CFM Hydrocarbon Dew Point Control Compressor Package 215 CFM Hydrocarbon Dew Point Control Compressor Package

215 cfm hydrocarbon dew point control compressor package

Stock # 19961
Sold
Capacity 215 CFM

Overview

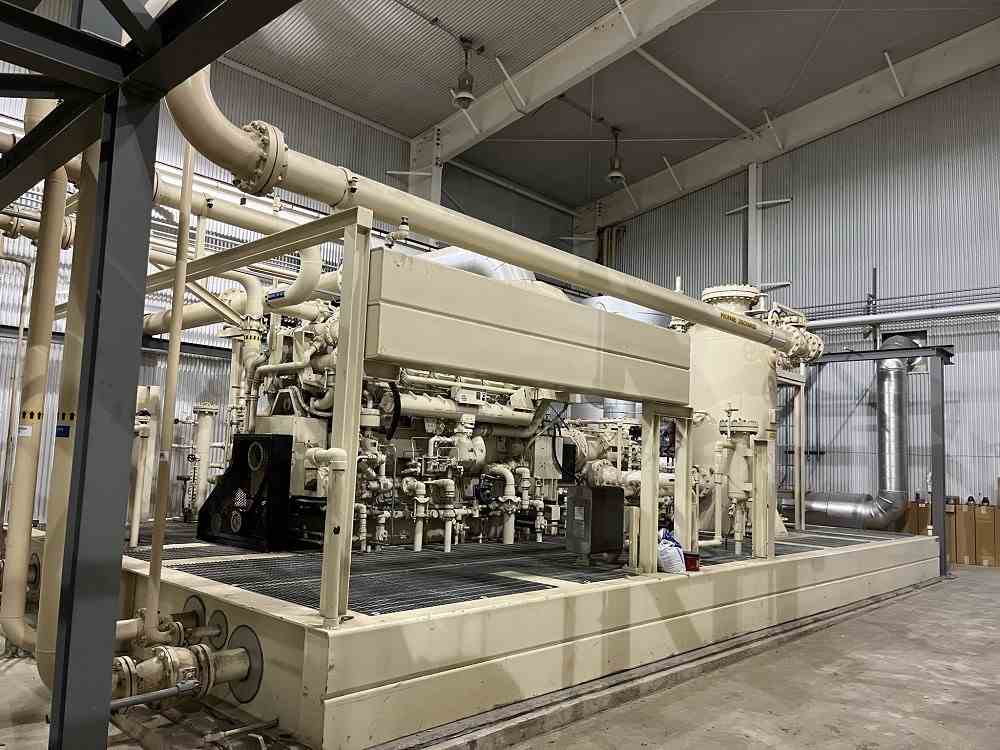

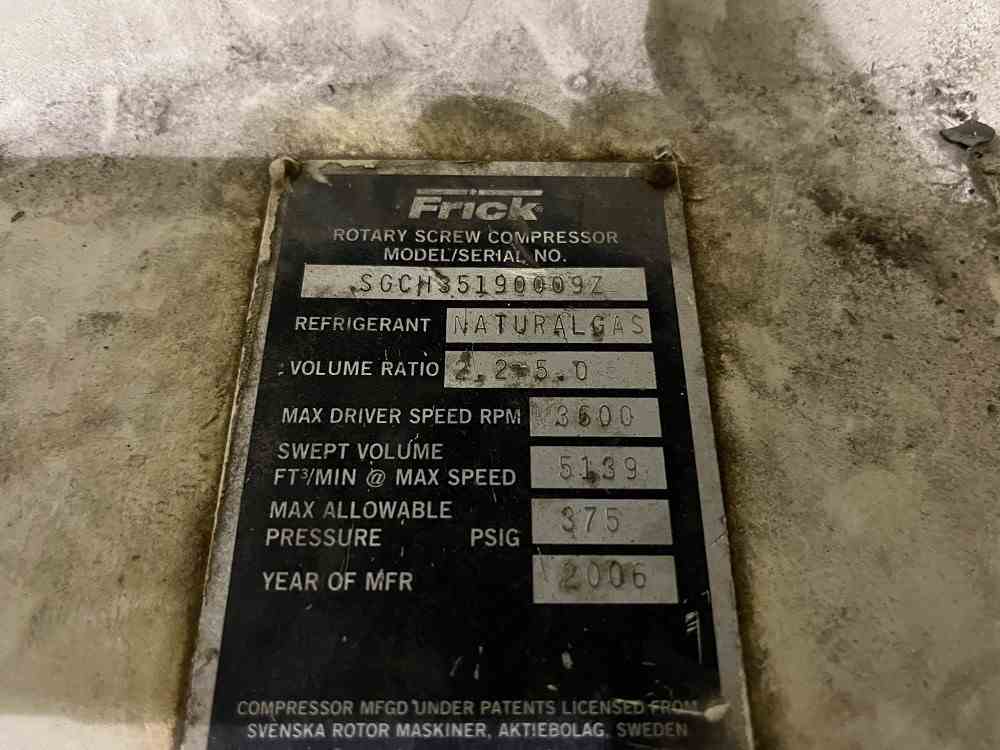

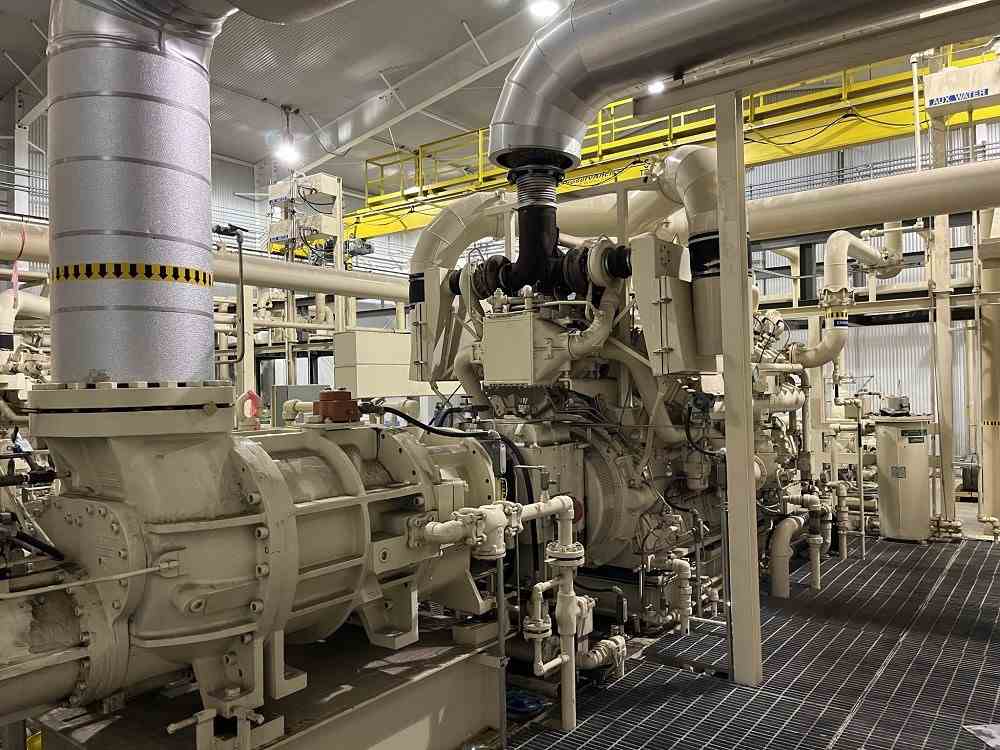

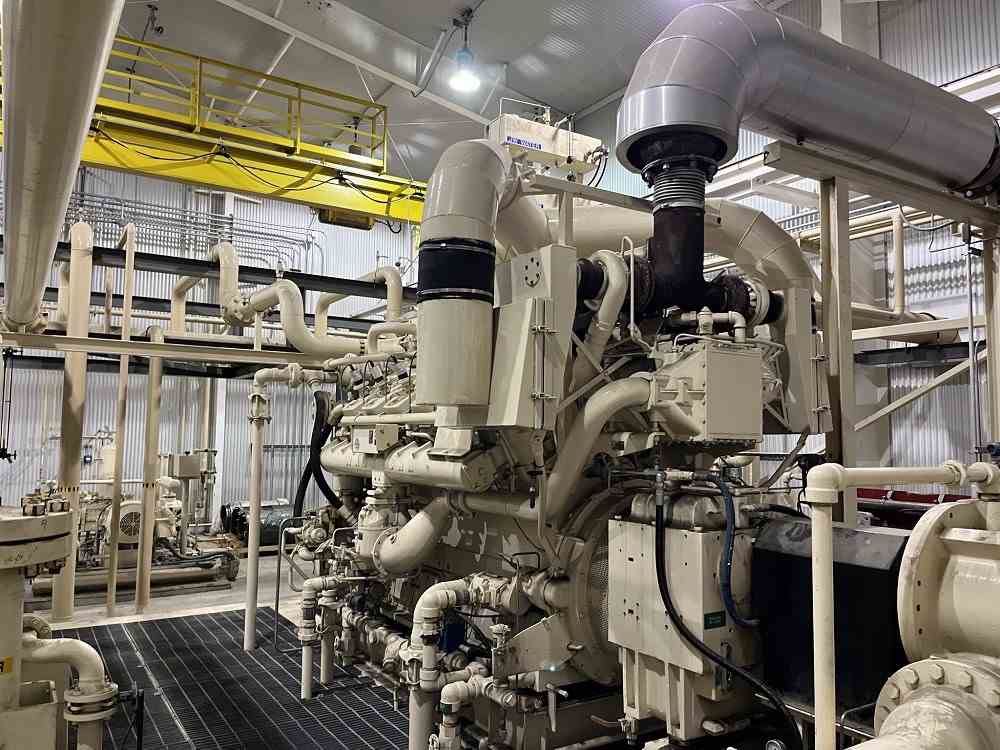

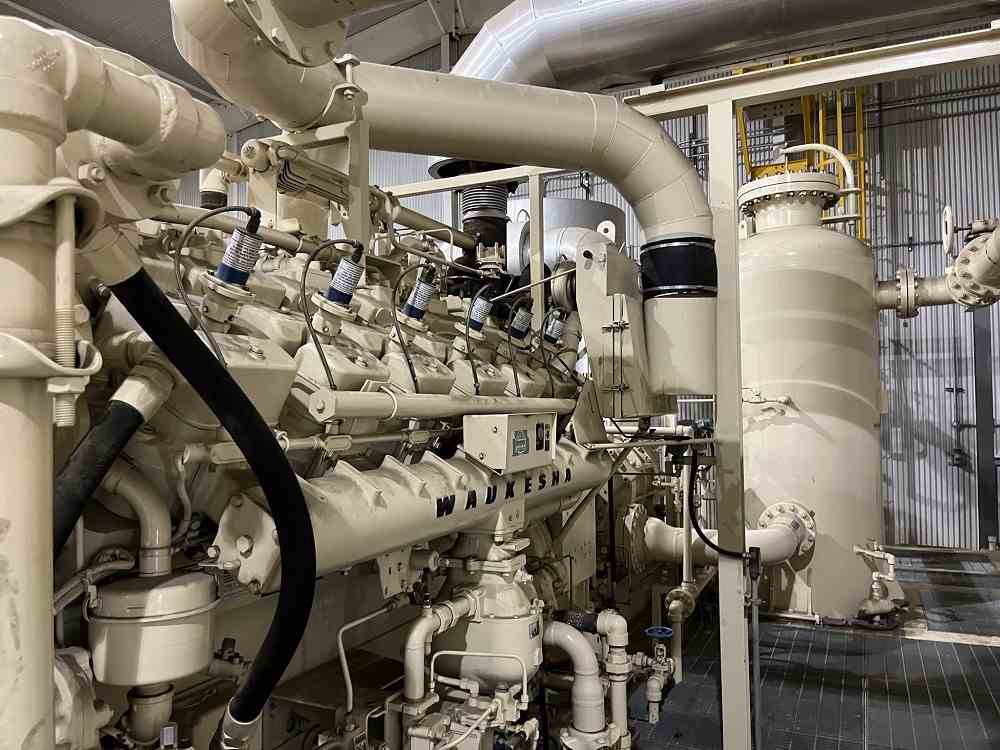

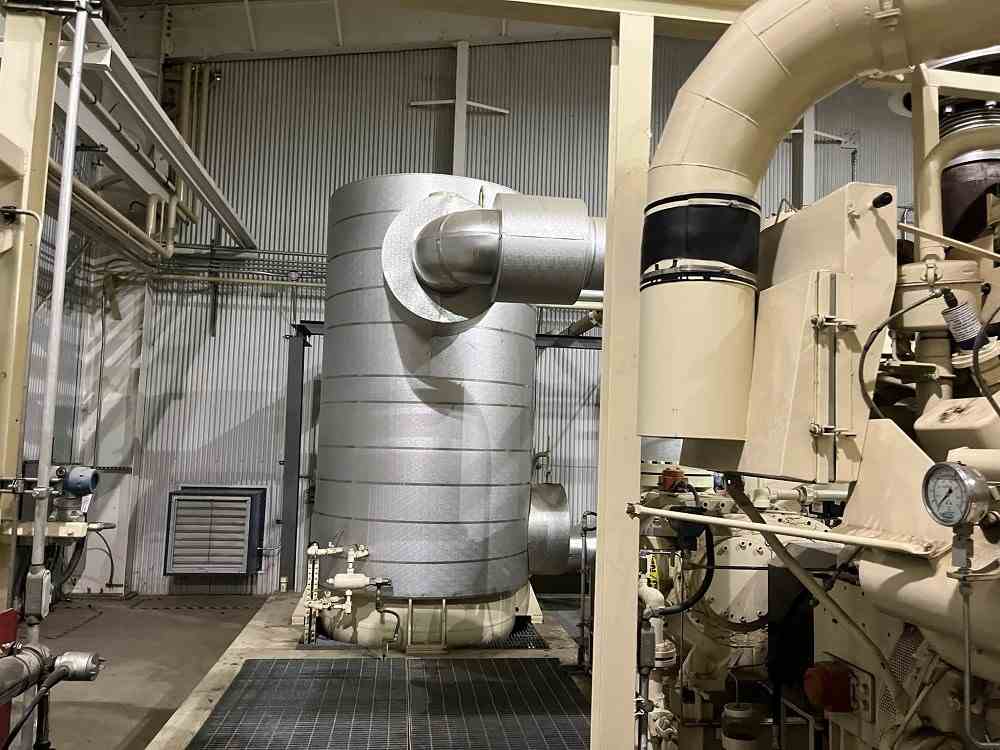

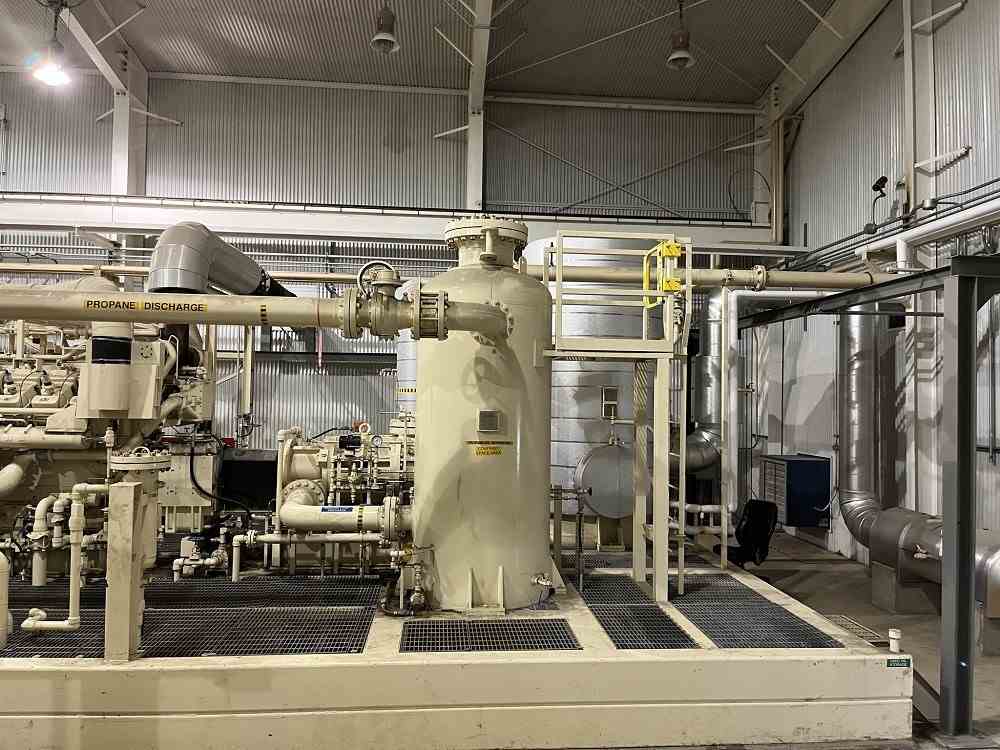

Used 215 CFM Propane Refrigeration Screw Compressor Package - Frick Model SGC 3519 compressor driven by Waukesha L7042 GL Natural Gas Engine. Compressor - 3344 RPM Operating Speed. Oil temp 160F. Max Pressure 375 PSI. Serial #SGCH35190009Z. Includes Compressor suction scrubber. 66"ID x 120 S/S. MAWP 250 PSIG@150F. 1478 HP Waukesa L7042 GL Natural Gas Engine. Bore 9.375". Stroke: 8.5" Displacement 7040 cu in. Speed: 1200 RPM. Compression Ratio: 10.5:1. Fuel Gas Consumption 12850 SCFH @1478 HP. Start Gas Consumption 854 SCFM@60 PSIG / 1208 SCFM @90PSIG. TPS Allen Bradley Compact Logix Control. Oil Filter, separator, flatplate Oil Cooler. Pacific Rim Speed Increaser. Model EMPB 0800B 001. Ratio 1:2.787. Ingersoll Rand Engine Pre-Lub pump. Kim Hot Start Oil/coolant Heater. model Coler 3180/0604-0881. .75HP Coolant motor. 1HP Heater motor. Warren Rupp 50/50 Gylcol 5GPM @ 2PSIG Transfer Pump. Ace Gycol Cooler. Model E-102-15. MAWP 150PSI@300F. 20 HP Moore Series fan. Skid Dimensions: 453"L x 240"W x 168"H. 122720 lbs. Built 2006. Past use: Hydrocarbon Dew Point Control Plant, propane refrigeration compressor package.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Frick
Model
SGC 3519
Material
Unknown
Capacity
215 CFM
