6600 Sq Ft CoreWorks Fin Fan Heat Exchanger
Other Views - click image for larger view
6600 Sq Ft CoreWorks Fin Fan Heat Exchanger 6600 Sq Ft CoreWorks Fin Fan Heat Exchanger

6600 sq ft coreworks fin fan heat exchanger

Stock # 17789
Capacity 6600 Sq Ft

Overview

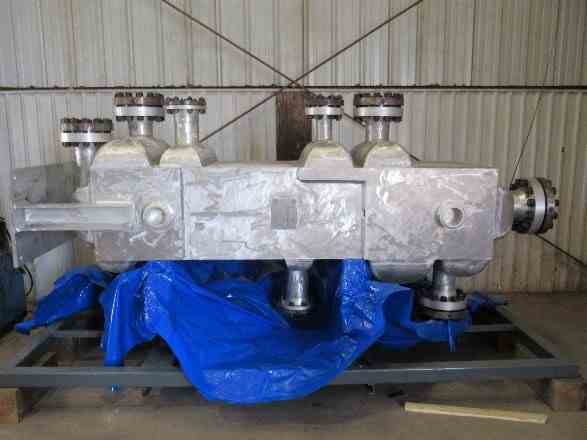

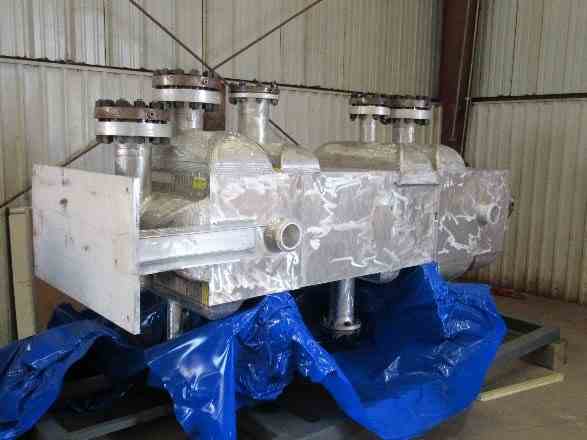

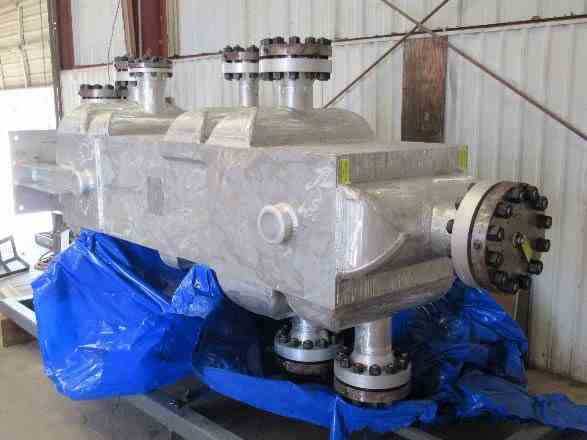

Unused approx 6600 Sq Ft CryoCore Multi-Stream BAHX Brazed Aluminum Heat Exchanger. Manufactured by CoreWorks. Flow rate: 20 MMSCFD. Core dimensions 98.43" x 23.62" x31.95". Max operating pressure 1440 PSIG @-320F/130F. Inlet operating pressure 1000 PSIG/700 PSIG. Exchanger duty 9296870 BTU/hr. Total UA 342168 BTU/HrF. Stream 1: Inlet Gas/Outlet Gas Pre-JT (8” 600#RF/6” 600#RF). Stream 2: Cold Sep Gas/Outlet Gas (6” 600#RF/6” 600#RF). Stream 3: Cold Sep NGL/NGL to Stabilizer (4” 600#RF/4” 600#RF). Stream 4: Stabilizer Overhead/Gas to Recycle (6” 600#RF/6” 600#RF). Stream 5: Chilled Glycol/Glycol Return (6” 150#RF/6” 150#RF).

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
CoreWorks
Model
Cryocore BAHX
Material
Brazed Aluminum
Capacity
6600 Sq Ft
