36 Sq Ft Hull 36FXS130-SS30C Lyophilizer
Other Views - click image for larger view
36 Sq Ft Hull 36FXS130-SS30C Lyophilizer 36 Sq Ft Hull 36FXS130-SS30C Lyophilizer 36 Sq Ft Hull 36FXS130-SS30C Lyophilizer 36 Sq Ft Hull 36FXS130-SS30C Lyophilizer 36 Sq Ft Hull 36FXS130-SS30C Lyophilizer 36 Sq Ft Hull 36FXS130-SS30C Lyophilizer

36 sq ft hull 36fxs130-ss30c lyophilizer

Stock # 11223
Sold
Capacity 36 Sq Ft

Overview

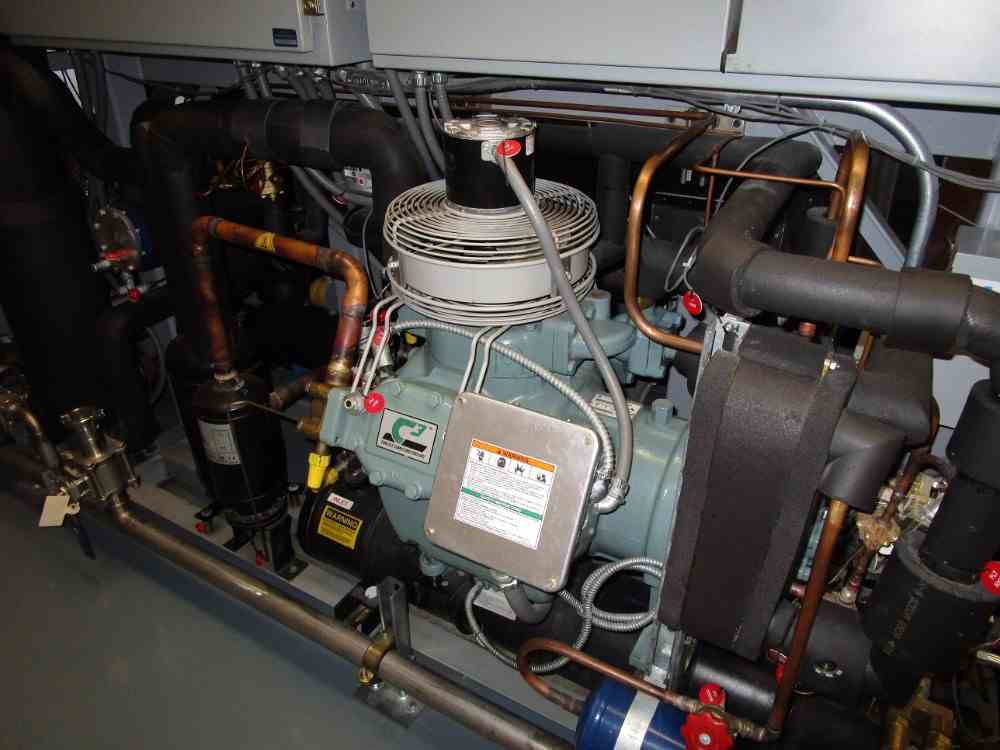

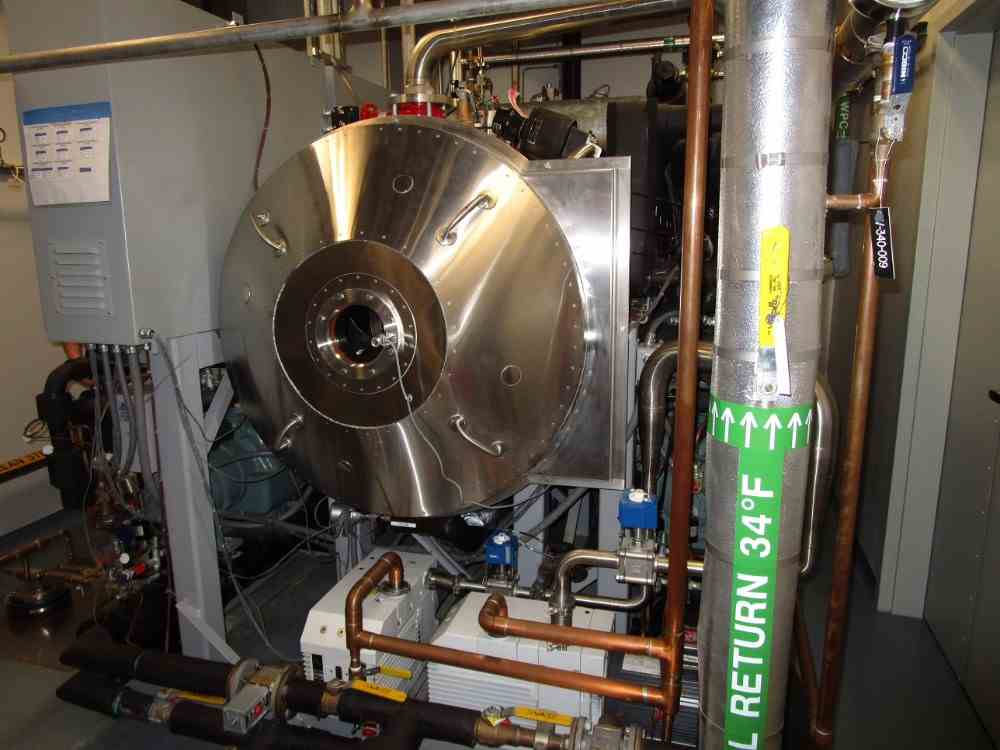

Used 36 sq ft Hull Lyophilizer freeze dryer. Model 36FXS130-SS30C. Stainless steel product contact surfaces. 36 sq ft shelf area, shelves rated +40°C to -60°C. Chamber rated 30 psi. External condenser with 130 liter ice capacity. Stoppering with 1 hp power pack.(2) Carlyle 20 hp refrigeration compressors, with R-507 refrigerant. Heat Inc shelf heating system with 15 kw heater, 1.5 hp circulation pump. Vacuum system with Leybold 3 hp vacuum pump. CIP and SIP capable. 480/60/3ph. Serial #05V9544. Built 2005. Documentation available.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Hull
Model
36FXS130-SS30C
Material
SS
Capacity
36 Sq Ft
