Used Walker Process Equipment

Phoenix Equipment has a large inventory of used, unused, and reconditioned equipment from Walker . Phoenix Equipment offers a wide selection of categories from Walker . If you can't find the exact Walker equipment you are looking for, contact us and we can help you find it.

Categories
Featured Equipment for Sale
500-gal-walker-stainless-steel-kettle

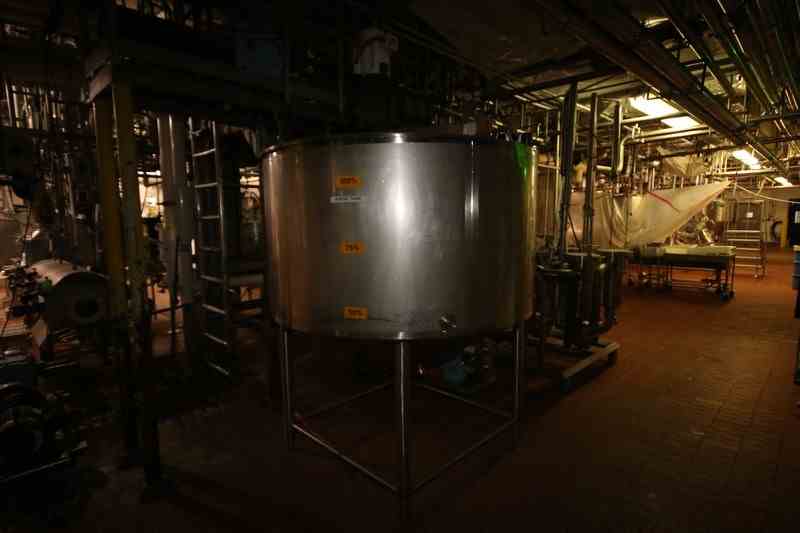

500 Gal Walker Stainless Steel Kettle
Stock# 18621 Capacity 500 Gal

Used 500 Gallon 316L Stainless Steel Processor. Manufactured by Walker. Model #PZ-CB-B. Vessel Jacket MAWP ATM @ 250 F. Heat MAWP 25 PSI @ 250 F. Cool MAWP 100 PSIG @ 100 F. Top Mounted 3HP Motor with Agitator with side scrapers. Removable baffle. 117"OAH x 69"OD. Serial #SPG-23094. Built 2000. Weight 2200 lbs.

1500-gal-walker-stainless-steel-tank

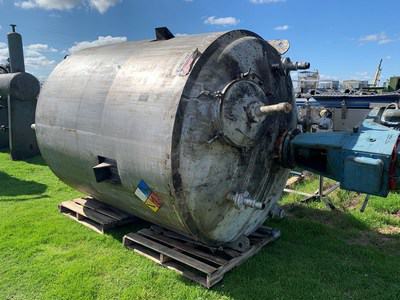

1500 Gal Walker Stainless Steel Tank
Stock# 12312 Capacity 1500 Gal

One used 1500 gallon Walker Stainless Steel Tank. Made in 1985. S/N VHT4006SS.

500-gal-walker-304-ss-pressure-vessel

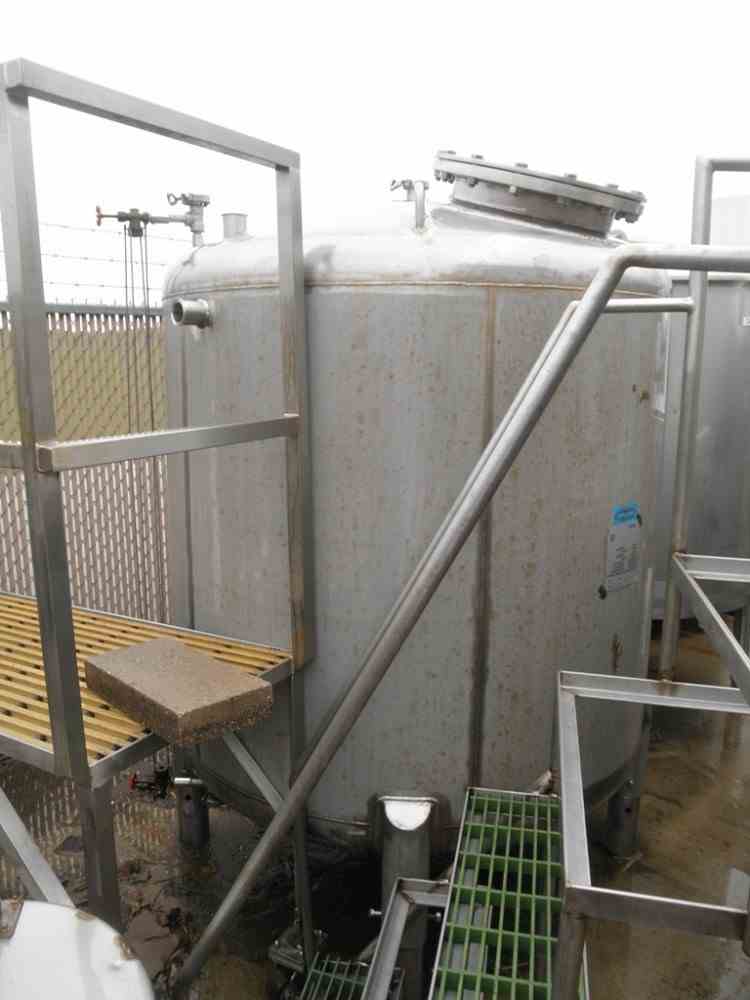

500 Gal Walker 304-SS Pressure Vessel
Stock# 15870 Capacity 500 Gal

Used Walker 500 Gallon stainless steel pressure tank, constructed of 304 stainless steel. Measures 50" diameter X 50" straight side. Internally rated for 15 PSI @ 250 degrees F / -20 degrees F, ASME code constructed. Includes dished top with 16" diameter bolted top manway, (4) 2" & (2) 1" top openings and bottom with 2" center bottom outlet. Model "Hold", Serial number NL9140, Drawing number SP-27452-D, new in 1996. Last used in pharmaceutical type environment. Very good condition.

150-gal-walker-316-ss-pressure-vessel

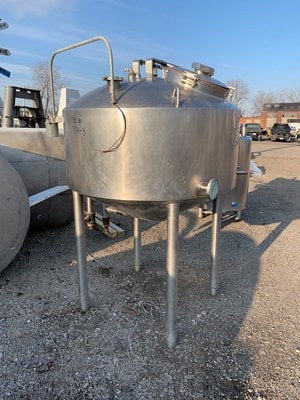

150 Gal Walker 316-SS Pressure Vessel
Stock# 16719 Capacity 150 Gal

Used 150 gallon Walker Kettle/Tank, Model PZ-K-SP, 316 stainless steel construction, approximately " diameter x " straight side, dish top, cone bottom, rated 10 psi and full vacuum at 250 F. internal, jacketed for 75 PSI at 250 F. (provision for top mounted agitator drive). Unit mounted on legs, Serial# 767, National Board# 489, built 1979.

1500-gal-walker-stainless-steel-reactor

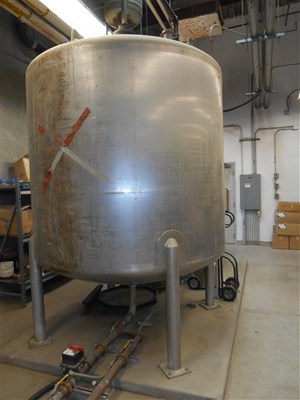

1500 Gal Walker Stainless Steel Reactor
Stock# 17758 Capacity 1500 Gal

Used 1500 Gallon Stainless steel reactor. Mfr Walker Stainless. Vessel rated 50 PSI/FV@300F. Jacket rated 75 PSI@300F. Measures 6' diameter x 7' straight side with dish top and bottom, with 3" diameter center bottom outlet. Lightnin Model 82-C-7.5 center top agitation mounted to 8" flange, driven by 7-1/2 HP motor thru 25.6:1 ratio gearbox, 68/45 output RPM. Top head includes 18" diameter manway with clamped manway door, 8" center top opening, 3" and (3) 2" openings. Bottom head includes 3" center bottom outlet and (2) 2" openings. Vessel was previously lug mounted and includes (6) threaded ports for screw-in legs. National Board #22, Serial #742. Previously used at biofuel facility.

8-gal-walker-stainless-steel-tank

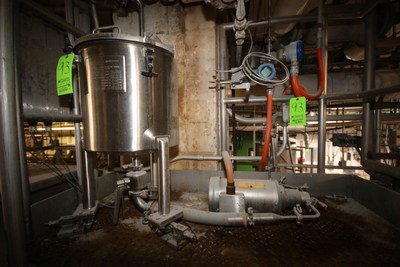

8 Gal Walker Stainless Steel Tank
Stock# 18593 Capacity 8 Gal

Walker 8 Gal. S/S Single Wall Balance Tank, M/N SINGLE SHELL, S/N SPG-54745, with Reliance 1.5 hp S/S Clad Pump, with Flow Meter, with Digital Read Out, with S/S Control Panel (LOCATED IN CHAMPAIGN, IL)
