Hot Oil Heaters & Boilers for Sale

Phoenix Equipment is a global buyer and seller of new, used and refurbished Basket Centrifuges. Currently, Phoenix Equipment has a large inventory of Top Load and Bottom Load Basket Centrifuges from manufacturers such as: Western States, Tolhurst, Ametek, Sharples, Rousselet, Robatel, Tanabe, Ketema, and many others.

11 Results
Show:
Sort:
20 MM BTU Sigma Thermal Hot Oil Boiler
20 MM BTU Sigma Thermal Hot Oil Boiler
Stock # 20986 | Capacity 20 MM BTU

Used 20 MMBTU/Hr Hot Oil Boiler. Manufactured by Sigma Thermal. Model HC2-17.5-H-SF. 5861 kW. 2064 Sq Ft Heat surface. 400F @ 52PSIG. 350059 lb/hr mass flow. Media: Chemtherm 550. Serial #J12012.

Add to Quote View details
18.1 MM BTU Heatec Hot Oil Boiler
18.1 MM BTU Heatec Hot Oil Boiler
Stock # 21758 | Capacity 18.1 MM BTU

Used 18.1 MMBTU/Hr Hot oil boiler. Manufactured by Heatec. Model VHCI 10010-50-G-(D). Input 22.1 MMBTU/hr. Flow rate 1465 GPM. Transfer media Dowtherm. Heating surface 1521 Sq ft. Design 300PSIG@750F. Outlet media 528F. Pressure Drop 12.9 PSIG. 125HP Blower. Economizer 2.5 MMBTU/hr. 300 PSIG@750F. Heating surface 2324 Sq ft. Pressure Drop 1.34 PSIG. Stack. Contols. Built 2011.

Add to Quote View details
10 MMBTU Geka Hot Oil Boiler
10 MMBTU Geka Hot Oil Boiler
Stock # 19257 | Capacity 10 MM BTU

Used 10 MMBTU/Hr DOWTHERM/Hot Oil Heater. Manufactured by Geka. Model THZ. Rated 250 PSIG @ 500F. Units equipped with 10 mm BTU/Hr. Maxon Gas Burners. Includes circulating pump skid and controls. Expansion tank 1600 gal. Feed tank and Exhaust stack not included.

Add to Quote View details
9.97 MMBTU Heatec Hot Oil Boiler
9.97 MMBTU Heatec Hot Oil Boiler
Stock # 21031 | Capacity 9.97 MM BTU

Used 9.97 MMBTU/HR Heatec vertical hot oil heater. Manufactured by Heatec. Model VHCI-12010-50-D-G-S. Natural Gas. Media: Dowtherm A. Includes Dowtherm Vertical Vaporizer, 10HP Centrifugal blower - 150000 SCFM, (2) 50HP centrifugal reciurculation pumps, 2500 gallon vertical flash tank, 5100 gallon horizontal drain/supply tank with pumps, condenser, gas train, (2) Feed pumps, (2) hot oil condensate pumps. Serial #HI 14-190. Built 2015. Total weight 120833 lbs.

Add to Quote View details
8 MMBTU QB Johnson Hot Oil Boiler
8 MMBTU QB Johnson Hot Oil Boiler
Stock # 19794 | Capacity 8 MM BTU

Used 8 MMBTU/hr Natural Gas Hot Oil Heater. Manufactured by QB Johnson. Model 200. MAWP 3PSI@550F. Maxon model 400 gas burner. Size 470M Nat. 60HP Motor. 96"OD x 32'6"OAL. Skid mounted. Boiler Serial #606211. Built 2011.

Add to Quote View details
8 MM BTU Fulton Hot Oil Boiler
8 MM BTU Fulton Hot Oil Boiler
Stock # 21763 | Capacity 8 MM BTU

Used 8 MMBTU/hr Hot Oil boiler/Thermal Fluid heater. Manufactured by Fulton. Model FT-0800C. Rated 8000000 BTU/output. 9195000 input. 700 sq ft heating area. 200 gallon capacity (thermal fluid). 500 GPM. 2"D heating coil. 4-pass. Rated 200PSI @ 650F. Includes pump skid, deaerator/expansion/thermal buffer tank. Serial #7649C. National Board #8831. Built 2014.

Add to Quote View details
5.5 MMBTU QB Johnson Hot Oil Boiler
5.5 MMBTU QB Johnson Hot Oil Boiler
Stock # 20825 | Capacity 5.5 MM BTU

Used 5.5 MMBTU/HR Hot Oil Heater. Manufactured by QB Johnson. MAWP 3PSI@500F. Maxon Model 400 Ovenpak Gas Burner. Size 442M. Skid mounted. Gas train, controls, (2) Exhaust. Serial #670614. Built 2014.

Add to Quote View details
5.2 MM BTU Heatec Hot Oil Boiler
5.2 MM BTU Heatec Hot Oil Boiler
Stock # 21647 | Capacity 5.2 MM BTU

Used 5.2 MMBTU Hot Oil heater. Manufactured by Heatec. Model HCI-4010-40-G. Natural gas fired. Eclipse Winnox WX0850 burner with 15 HP Eclipse packaged-blower PRJ10055899. 15HP 3/60/230-460 volt motor. 583 sq. ft. heater Rated 800 PSIG @ -20 to 800F. Purged control panel rated for hazardous locations. Allen Bradley Panelview Plus 700 interface, high media temperature controller and high stack temperature limit. 24" X 8' stack. Skid mounted. Serial #HI10-243. National Board #1998. Built 2011. Previous use heating natural gas at a natural gas processing facility.

Add to Quote View details
4.366 MM BTU Heatec Hot Oil Boiler
4.366 MM BTU Heatec Hot Oil Boiler
Stock # 19801 | Capacity 4.366 MM BTU

Used 4.366 MMBTU/hr Hot Oil Heater. Manufactured by Heatec. Model HCI-3010-30. Input 5.645MM BTU. Transfer Media: Regen Gas. Kinedizer LE Low NOX Gas Burner. Design 1005PSI @ 700F. Outlet temp 600F. 1500 CFM 8" New York blower fan with 15HP motor. Gas train. 7'8.965" X 1'6"ID stack. 600 series piping, 3" 600 RF in/out, 2-Electrical Box & Conduit, skid mounted with controls. Serial #HI13-041. Built 2013.

Add to Quote View details

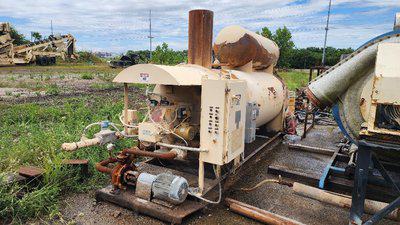

3 MM BTU Heatec Hot Oil Boiler
3 MM BTU Heatec Hot Oil Boiler
Stock # 21625 | Capacity 3 MM BTU

Used 3 MMBTU/HR Hot oil heater. Manufactured by Heatec. Model HC300C. Fuel: Combo Oil/Gas. Includes Gas train, fuel pump and filter, Circulating pump. Updated Fire Eye. Expansion Tank. Serial #H81046. Built 1981.

Add to Quote View details
2 MM BTU Heatec Hot Oil Boiler
2 MM BTU Heatec Hot Oil Boiler
Stock # 21624 | Capacity 2 MM BTU

Used 2 MMBTU/HR Hot oil heater. Manufactured by Heatec. Model HC-200. Fuel: Natural Gas. Honeywell Gas valve. Lincoln 7.5HP motor. 7.5HP circ pump with 100 gallon oil capacity. PowerFlame Model C2-OP burner. Controls. Skid mounted.

Add to Quote View details
20 MM BTU Sigma Thermal Hot Oil Boiler
20 MM BTU Sigma Thermal Hot Oil Boiler
Stock # 20986
Capacity 20 MM BTU

Used 20 MMBTU/Hr Hot Oil Boiler. Manufactured by Sigma Thermal. Model HC2-17.5-H-SF. 5861 kW. 2064 Sq Ft Heat surface. 400F @ 52PSIG. 350059 lb/hr mass flow. Media: Chemtherm 550. Serial #J12012.

Add to Quote View details
18.1 MM BTU Heatec Hot Oil Boiler
18.1 MM BTU Heatec Hot Oil Boiler
Stock # 21758
Capacity 18.1 MM BTU

Used 18.1 MMBTU/Hr Hot oil boiler. Manufactured by Heatec. Model VHCI 10010-50-G-(D). Input 22.1 MMBTU/hr. Flow rate 1465 GPM. Transfer media Dowtherm. Heating surface 1521 Sq ft. Design 300PSIG@750F. Outlet media 528F. Pressure Drop 12.9 PSIG. 125HP Blower. Economizer 2.5 MMBTU/hr. 300 PSIG@750F. Heating surface 2324 Sq ft. Pressure Drop 1.34 PSIG. Stack. Contols. Built 2011.

Add to Quote View details
10 MMBTU Geka Hot Oil Boiler
10 MMBTU Geka Hot Oil Boiler
Stock # 19257
Capacity 10 MM BTU

Used 10 MMBTU/Hr DOWTHERM/Hot Oil Heater. Manufactured by Geka. Model THZ. Rated 250 PSIG @ 500F. Units equipped with 10 mm BTU/Hr. Maxon Gas Burners. Includes circulating pump skid and controls. Expansion tank 1600 gal. Feed tank and Exhaust stack not included.

Add to Quote View details
9.97 MMBTU Heatec Hot Oil Boiler
9.97 MMBTU Heatec Hot Oil Boiler
Stock # 21031
Capacity 9.97 MM BTU

Used 9.97 MMBTU/HR Heatec vertical hot oil heater. Manufactured by Heatec. Model VHCI-12010-50-D-G-S. Natural Gas. Media: Dowtherm A. Includes Dowtherm Vertical Vaporizer, 10HP Centrifugal blower - 150000 SCFM, (2) 50HP centrifugal reciurculation pumps, 2500 gallon vertical flash tank, 5100 gallon horizontal drain/supply tank with pumps, condenser, gas train, (2) Feed pumps, (2) hot oil condensate pumps. Serial #HI 14-190. Built 2015. Total weight 120833 lbs.

Add to Quote View details
8 MMBTU QB Johnson Hot Oil Boiler
8 MMBTU QB Johnson Hot Oil Boiler
Stock # 19794
Capacity 8 MM BTU

Used 8 MMBTU/hr Natural Gas Hot Oil Heater. Manufactured by QB Johnson. Model 200. MAWP 3PSI@550F. Maxon model 400 gas burner. Size 470M Nat. 60HP Motor. 96"OD x 32'6"OAL. Skid mounted. Boiler Serial #606211. Built 2011.

Add to Quote View details
8 MM BTU Fulton Hot Oil Boiler
8 MM BTU Fulton Hot Oil Boiler
Stock # 21763
Capacity 8 MM BTU

Used 8 MMBTU/hr Hot Oil boiler/Thermal Fluid heater. Manufactured by Fulton. Model FT-0800C. Rated 8000000 BTU/output. 9195000 input. 700 sq ft heating area. 200 gallon capacity (thermal fluid). 500 GPM. 2"D heating coil. 4-pass. Rated 200PSI @ 650F. Includes pump skid, deaerator/expansion/thermal buffer tank. Serial #7649C. National Board #8831. Built 2014.

Add to Quote View details
5.5 MMBTU QB Johnson Hot Oil Boiler
5.5 MMBTU QB Johnson Hot Oil Boiler
Stock # 20825
Capacity 5.5 MM BTU

Used 5.5 MMBTU/HR Hot Oil Heater. Manufactured by QB Johnson. MAWP 3PSI@500F. Maxon Model 400 Ovenpak Gas Burner. Size 442M. Skid mounted. Gas train, controls, (2) Exhaust. Serial #670614. Built 2014.

Add to Quote View details
5.2 MM BTU Heatec Hot Oil Boiler
5.2 MM BTU Heatec Hot Oil Boiler
Stock # 21647
Capacity 5.2 MM BTU

Used 5.2 MMBTU Hot Oil heater. Manufactured by Heatec. Model HCI-4010-40-G. Natural gas fired. Eclipse Winnox WX0850 burner with 15 HP Eclipse packaged-blower PRJ10055899. 15HP 3/60/230-460 volt motor. 583 sq. ft. heater Rated 800 PSIG @ -20 to 800F. Purged control panel rated for hazardous locations. Allen Bradley Panelview Plus 700 interface, high media temperature controller and high stack temperature limit. 24" X 8' stack. Skid mounted. Serial #HI10-243. National Board #1998. Built 2011. Previous use heating natural gas at a natural gas processing facility.

Add to Quote View details
4.366 MM BTU Heatec Hot Oil Boiler
4.366 MM BTU Heatec Hot Oil Boiler
Stock # 19801
Capacity 4.366 MM BTU

Used 4.366 MMBTU/hr Hot Oil Heater. Manufactured by Heatec. Model HCI-3010-30. Input 5.645MM BTU. Transfer Media: Regen Gas. Kinedizer LE Low NOX Gas Burner. Design 1005PSI @ 700F. Outlet temp 600F. 1500 CFM 8" New York blower fan with 15HP motor. Gas train. 7'8.965" X 1'6"ID stack. 600 series piping, 3" 600 RF in/out, 2-Electrical Box & Conduit, skid mounted with controls. Serial #HI13-041. Built 2013.

Add to Quote View details
3 MM BTU Heatec Hot Oil Boiler
3 MM BTU Heatec Hot Oil Boiler
Stock # 21625
Capacity 3 MM BTU

Used 3 MMBTU/HR Hot oil heater. Manufactured by Heatec. Model HC300C. Fuel: Combo Oil/Gas. Includes Gas train, fuel pump and filter, Circulating pump. Updated Fire Eye. Expansion Tank. Serial #H81046. Built 1981.

Add to Quote View details
2 MM BTU Heatec Hot Oil Boiler
2 MM BTU Heatec Hot Oil Boiler
Stock # 21624
Capacity 2 MM BTU

Used 2 MMBTU/HR Hot oil heater. Manufactured by Heatec. Model HC-200. Fuel: Natural Gas. Honeywell Gas valve. Lincoln 7.5HP motor. 7.5HP circ pump with 100 gallon oil capacity. PowerFlame Model C2-OP burner. Controls. Skid mounted.

Add to Quote View details
11 Results
Show:
Sort:

Buying and Selling Unused, Used and Reconditioned Basket Centrifuges

Phoenix Equipment is your one-stop shop for top-of-the-line basket centrifuges. We offer a wide selection of top load and bottom load models from industry-leading manufacturers like Western States, Tolhurst, Ketema, Ametek, Tanabe, Sharples, and Rousselet/Robatel.



How Basket Centrifuges Work

Basket centrifuges utilize centrifugal force to separate liquids from solids. Here's a simplified breakdown of the process:

  1. Feed Introduction: The liquid mixture (slurry) is poured into the rotating basket.
  2. Separation by Centrifugal Force: As the basket spins at high speeds, centrifugal force pushes solids outward, collecting them on the basket's inner wall.
  3. Clarified Liquid Collection: The clarified liquid (without solids) accumulates inside the centrifuge and exits through a designated outlet.
  4. Solid Discharge: When the basket becomes full, solids can be emptied manually or automatically (depending on the model and the consistency of the solids).



Phoenix Equipment: Your Basket Centrifuge Experts

At Phoenix Equipment, we offer a diverse range of basket centrifuges to suit your specific needs. Our selection includes:

  • Durable Materials: 304 and 316L stainless steel for exceptional corrosion resistance.
  • Hastelloy Basket Centrifuges: For challenging applications requiring superior chemical resistance.



Get a Quote Today!

Let our specialists help you find the perfect basket centrifuge for your application. To get a free, no obligation quote, add all the equipment you want pricing for to your quote cart, and fill out our quick and easy quote form to get started.

Fill out our quick and easy quote form for more information about our Basket Centrifuges inventory.
