Batch-Type Fluid Bed Dryers

Used Aeromatic model S-6 200 KG sanitary stainless steel fluid bed spray granulator. Unit is electro-polished and manually operated. Has (2) product containers equipped with 80 mesh top screen and 325 mesh bottom screen. Complete with control panel, steam fed hot air heater, hepa filters, mixer and fluid delivery system to sprayers.

Used O'hara fluid bed dryer granulator, model FBDG 30, 316L stainless steel construction, 35kg working capacity, 100 liter bowl, 900 cfm process air volume, 1200 mm dia. filter housing, 4000 mm overall height, 1400 mm overall depth, 40 - 85 c temp working range, steam heated air handler, 20 HP New York blower, top blow out panels, with operator panel serial# 3460, built 2003

Glatt fluid bed dryer, Model WSG 5, serial # N/A. Features all stainless steel sanitary contact parts, includes Wurster coating column and standard drying chamber, factory control panel, steam heated from cabinet encased coil, some spare parts and original blower included, formerly used in food ingredient lab.

Used Glatt GCPG 5 Fluid Bed Coater. Includes 7" Wurster and 9" Wurster Columns. 5 Kg Max Charge, 22 Liters Volume Product Container. 440 CFM Fan Unit. 55 KW Fan Motor.

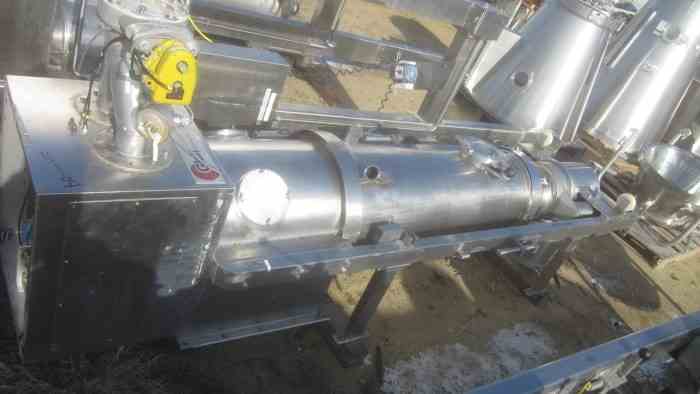

Used Glatt GPCG-5 Fluid Bed Dryer. 7" Dia. Wurster, 2 Bar, 5.5 KW, 3/60/460 Volt, 3600 RPM. 16,500 KCAL/Hr, 3 Bar Steam Pressure. 6 Bar Compressed Air. S/N: 3977, Built 1983.

Used Glatt GPCG-5 fluid bed dryer. Stainless steel contacts. 2 bar, 5.5 kW, 3 phase, 60 cycle, 460 volt, 3600 rpm. 16500 kcal/hour, 3 bar steam pressure. 6 bar compressed air. Rear vented. Control panel.

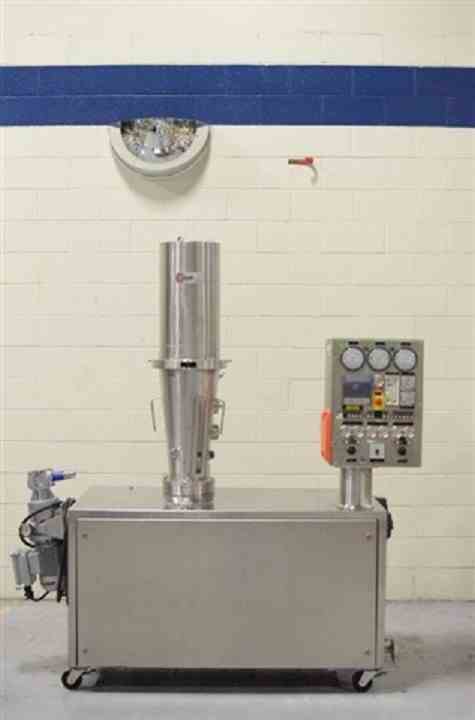

One used Glatt GPCG3 Fluid Bed Dryer Granulator, wurster, top spray granulation and rotor granulation inserts with bowls, 2.2 kw blower, 220 volt with controls, serial 4538, built 1987

Used stainless steel food grade fluid bed dryer by Aeromatic Process Equipment Engineering (Bubendorf, Switzerland). Model T-2. 20 kg capacity. Steam heated coil rated for 4 bar, rated pressure shock resistance 10 bar g, air preparation housing- pressure shock resistance 0. 02 bar g, heating capacity 109/000 kj/h, fan (required) with 10 bar g pressure shock resistance, air quality 0. 28 m 3/s, static pressure 7000 pa, motor 5.5 kw, compressed air connection 6 bar g. Serial # 8S344.

Used Glatt GPCG-15 SC fluid bed dryer/granulator. Design is 3 Bar Pressure Shock rated for aqueous processing only. SC, or Super-Clean, Design. Featured with stainless cartridge air pulse exhaust filters, includes legacy PLC based control system with HMI, CIP Skid with pumps, automatic valves, tanks, detergent dosing, loose CIP piping and cleaning nozzles, inlet AHU with electric heat, duct flaps, process tower with top spray granulator/dryer bowl. Configured as bottom discharge with hydraulic lifting device for contained charging of product to GPCG15 tower. Includes exhaust HEPA filter housing and exhaust fan with discharge noise attenuator.

Used Mendel Model FBP-1 Fluid Bed Processor/Dryer. Capacity 0.5 to 3 Kilos. Main features: Integrating mixing, spray drying, top spray granulation, bottom spray granulation, film coating and fluidized bed drying. Has Spray Granulator Insert. 240 volt, 3 Phase, 60 Hz, 7.5 KW. 4-6 Bar. Last used in Sanitary Pharmaceutical plant. Serial #1002-101.

Used Anhydro model BFB30 Fluid Bed Dryer. Includes Dust Collector. Last used in Pharmaceutical plant.

Used Glatt GPCG1 fluid bed dryer granulator, stainless steel construction, Wurster and spray granulation inserts, roto granulator bowl and motor drive less expansion chamber, 2.2 kw blower, 230 volt, serial# 5709, new 1994.
