Incinerators

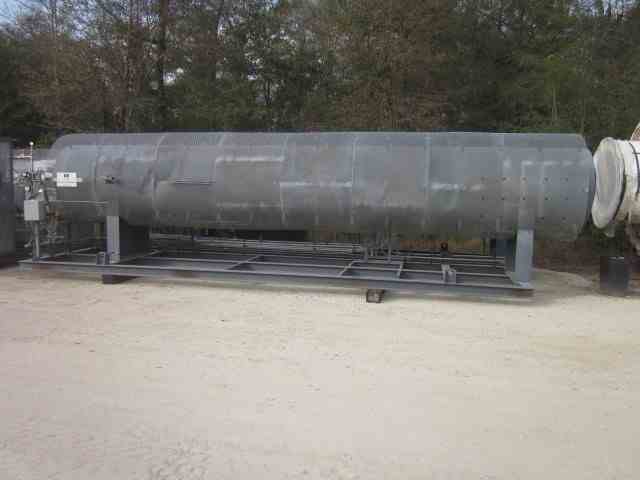

Used Met-Pro Redundant Thermal Oxidizer System with Acid Gas Treatment Quench and Caustic Scrubber. Process Flow 3000 SCFM @70F. Solvent Loading 372 lb/hr. Inlet pressure +21"WC. Includes Met-Pro Hastelloy C Refractory-lined Oxidizer Model T-3-G. Rated at 3000 SCFM @1800F. Met-Pro 8MM BTU/HR burner with blower. 5HP motor, 120GPM Booster pump. Serial #62881 and 62882. Built 2002.

Used Intellishare Environmental Thermal Oxidizer. Approximate maximum air flow capacity 0 to 1700 SCFM, average inlet temperature 40-115 degrees F., minimum thermal operating temperature 1400 degrees F., average operating temperature 1650 degrees F., maximum thermal operating temperature 1800 degrees F., chamber residence time (1) second. Consists of: (1) 316 stainless steel chamber, approximate 20' tall stack, thermal oxidizer 5,150,000 BTU burner, (1) Robinson combustion air blower, flow approximate 1260 SCFM, (2) New York blowers, each air flow approximate 1800 SCFM, (1) 316 stainless steel knockout tank, (1) 316 stainless steel HEPA filter, control panel with Allen-Bradley PowerFlex drives, DigiTrace heat tracing controllers, Allen-Bradley PLC, and an Allen-Bradley PanelView Plus 1500.
