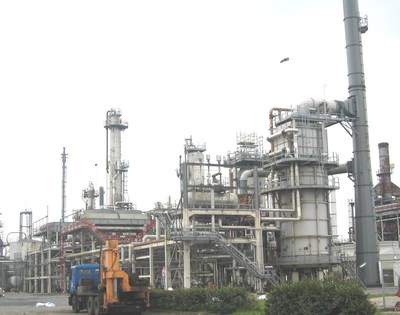

Used 22,600 TPD Ultra-Low Sulfur Diesel (ULSD) Unit built in 1995. The ULSD Unit has a 73 m3 reactor which operates at pressure of 56 barg. The unit has 4 separators and reboiler type stripper (fractionator), but does not have a high-pressure amine scrubber. The main advantages of the four separator system are:
• Efficient heat integration due to elimination of excessive cooling and subsequent heating of reactor effluent liquid product;
• Lower overall fired heater duty;
• Improved wash water/oil separation since wash water is injected into the gas phase after the reactor effluent oil has been withdrawn.
Inlet hydrogen has pressure of 40 barg and make-up purity of 99.9%. At the operation pressure of 40 – 50 barg, a typical chemical hydrogen consumption is 25 – 45 Nm³/ton of feed.
The ULSD Unit includes a complete SRU (30 TPD) unit and a DEA unit.
