Hydrogen Plant - 2,266 Nm3/hr (80,000 SCFH)
Other Views - click image for larger view
Hydrogen Plant - 2,266 Nm3/hr (80,000 SCFH) Hydrogen Plant - 2,266 Nm3/hr (80,000 SCFH) Hydrogen Plant - 2,266 Nm3/hr (80,000 SCFH) Hydrogen Plant - 2,266 Nm3/hr (80,000 SCFH) Hydrogen Plant - 2,266 Nm3/hr (80,000 SCFH) Hydrogen Plant - 2,266 Nm3/hr (80,000 SCFH)

Hydrogen Plant - 2,266 Nm3/hr (80,000 SCFH)

Stock # 575
Capacity 2,266 Nm3/hr (80,000 SCFH)
Products Hydrogen

Overview

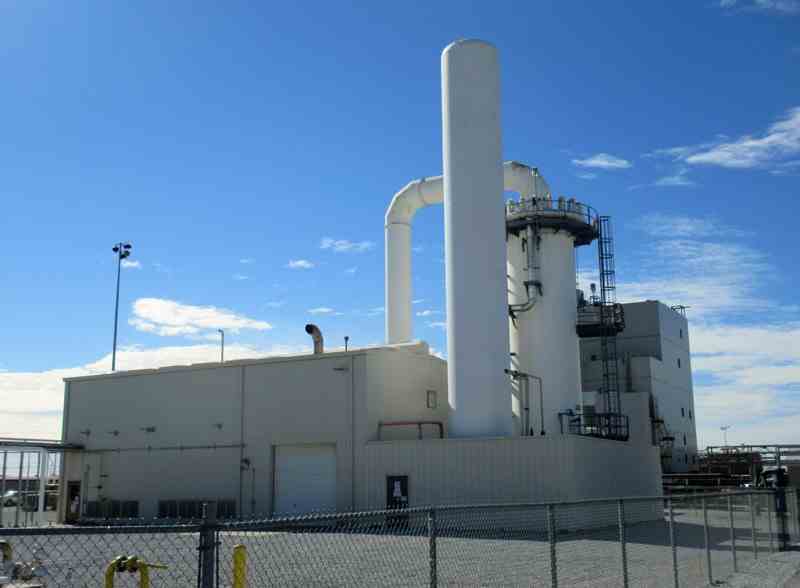

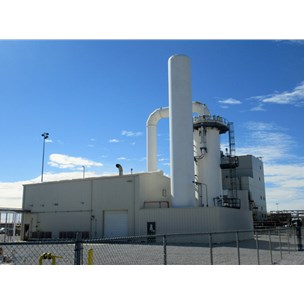

Used 2,266 Nm3/hr (80,000 SCFH) Hydrogen Plant, designed by Hydro-Chem (a Linde company) to produce 99.99% hydrogen. Built in 2004. The plant was designed for natural gas feedstock containing 97.97% methane, 1.37% Co2, 2.49% N2 and 3.53% ethane. H2 product 99.99% purity at max 100 °F and minimum discharge pressure of 200 psig. Syngas reformer uses nickel catalyst. The plant equipment has been dismantled and is ready for quick shipment.

Major Equipment

• Feed Heater (HX-101)

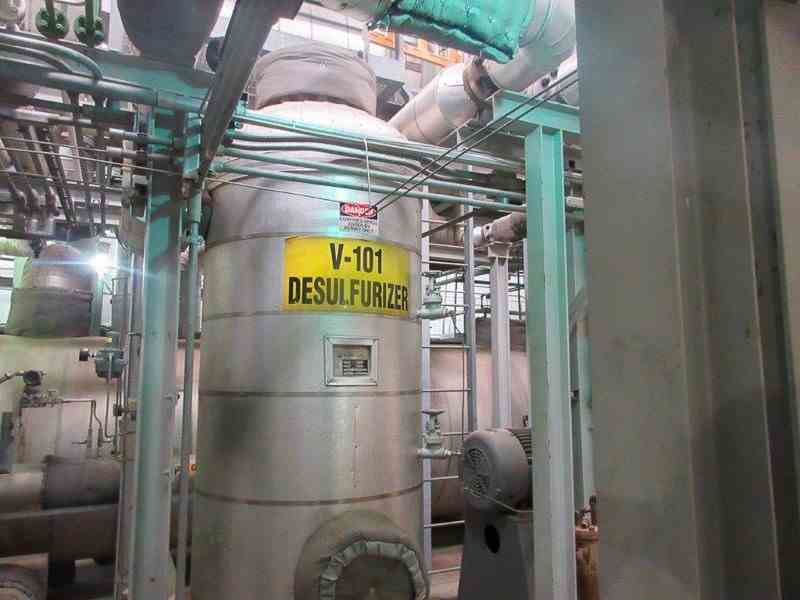

• Desulfurizer Vessel (V-101)
• Steam/Gas Lateral (SP-779)
• Reformer (R-101)
• Reformer Effluent Steam Generator (WH-104)
• Shift Converter (V-102)
• Shift Effluent Steam Generator (WH-105)
• Process Cooler (HX-104)
• Deaerator Exchanger (HX-103)
• Boiler Feed Water Exchangers (HX-102A & B)
• Deaerator (V-106)
• Steam Drum (V-107)
• Cold Condensate Separator (V-104)
• Flue Gas Steam Superheater (WH-101)
• Flue Gas Steam Generator (WH-102)
• Blowdown Drum (V-108)
• Economizer (WH-103)
• ID Fan (F-101)
• Cold Condensate Drum (V-104)
• Vent Gas Drum (V-105)
• Adsorbers (A-101A Thru A-101D)
