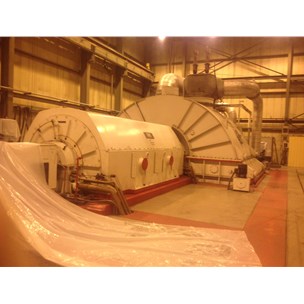

BBC Steam Turbine
- Type DK-722-2180
- Generator Output 113 MW

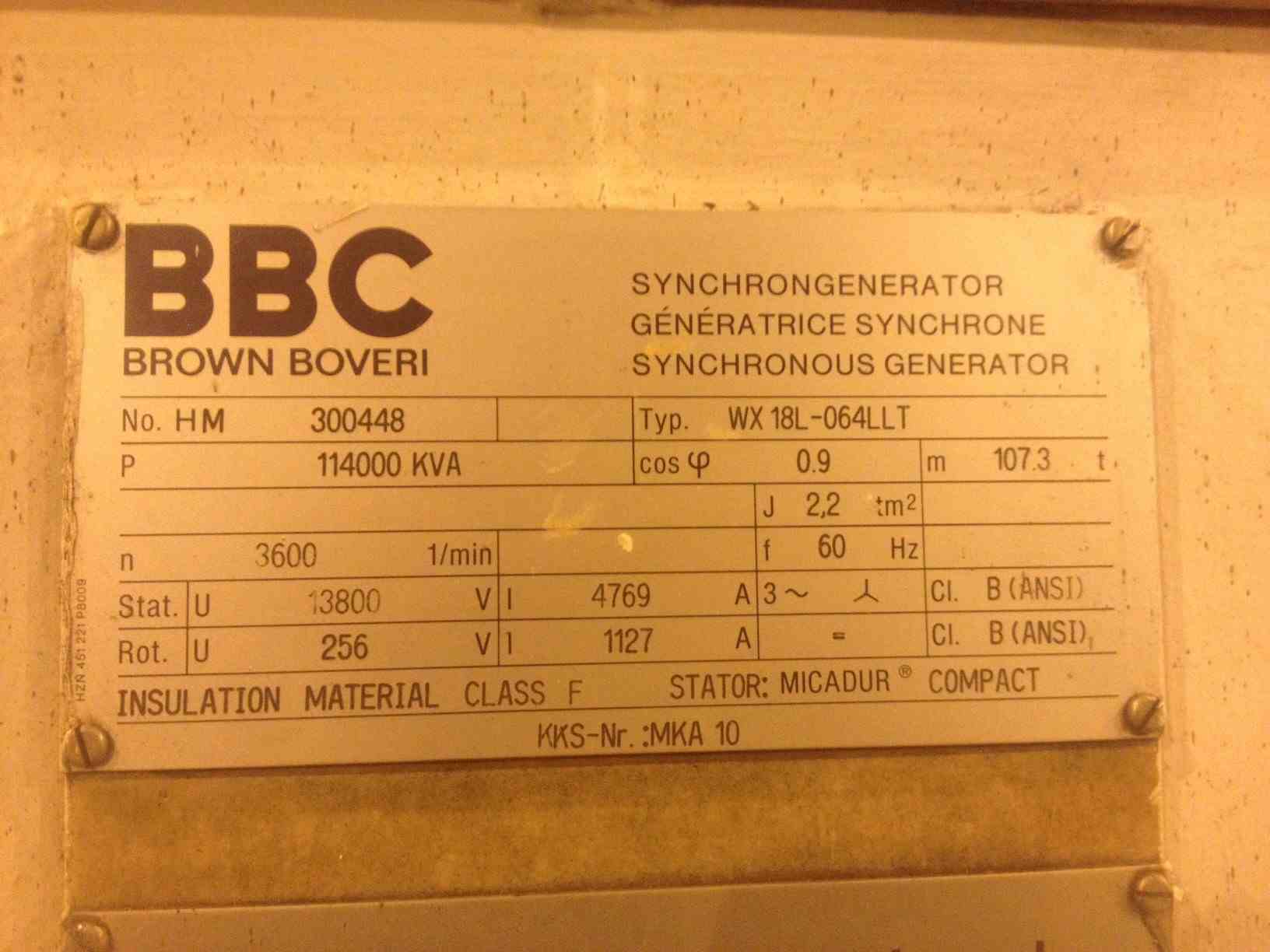

BBC Air-Cooled Generator
- Type WX18L-064LLT
- Rated output 102.6MW (Active)
- Rated output 114MVA (Apparent)
- Phase voltage 13.8Kv
- Phase current 4769 A
- Speed 3600 RPM
- 2 poles.

BBC Brushless Exciter
- Type WBT74/508/30
- Rated voltage (continuous operation) 256 V
- Rated current (continuous operation) 1127 A

105,000 sq. ft. Bechtel Construction Shell and Tube Surface Condenser with water box.
- Shell Carbon Steel
- Tubes Inhibited Admiralty Bronze

Auxiliary Equipment
Lube Oil system
- 2113 US Gallon Tank
BBC Type 630 Main Oil Pump
- 280 US GPM
Viking Type Q4124A Main Oil Pump
- 300 US GPM
Buffalo Forge Type 609 Aux Oil Pump
- 279 US GPM
- 30 HP motor
Buffalo Forge Type 609 Emergency Oil Pump
- 127 US GPM
- 5 HP Motor
Truninger Type QT 34-010 R/BDZ Jacking Oil Pump
- 852 UA GPH
- 15 HP Motor
Basco Oil Coolers (2x100%)
- Cooling Surface 1152 sq. ft.
- cooling capacity 1,718,130 BTU/hr
Funke Type C200/403-2-2Weg Control Fluid Cooler (2x100%)
- Capacity 27,000 BTU/Hr
Basco Type 5 (BEM) Gland Steam Condenser
- Steam Flow 1,656 lb/hr
Buffalo Forge Type 3 RE Gland Steam Exhausters
- 3500 RPM
- 5HP Motor
Perfex Type 33/146-A-64 Generator Air Cooler (3x33.3%)
- Cooling Capacity 5,597,320 BTU/Hr
- 8671 sq. ft.
- 74362 CFM
