40 MW Sulzer Slow-Speed HFO Power Plant
Other Views - click image for larger view
40 MW Sulzer Slow-Speed HFO Power Plant 40 MW Sulzer Slow-Speed HFO Power Plant
Stock # 1024
Capacity 40 MW
Products Electricity
Sold

Overview

The engines have the capability to burn residual oil, a very poor quality fuel, which is the residual left in oil refineries after all of distillate products such as gasoline, jet fuel, heating oil and No. 2 diesel oil have been refined from the crude oil. The generating plant contains the largest diesel engines to be installed in any power plant in the United States at the time when the plant was built. The noise generated from the Sulzer engine does not exceed 50 dBA. There are two Brown Boveri generators which are totally enclosed cooling air circuit with an air/water heat exchanger. Two waste heat boilers are installed in the exhaust gas streams from the engines to produce steam at no fuel cost which drives a 3,000 KW steam turbine for production of additional electric power. Additional to the heat recovery from stack emission, the engines produce large volume of hot water in the jacket water cooling systems.

Major Equipment

(2) Sulzer HFO Engines
(2) Brown Boveri Generators

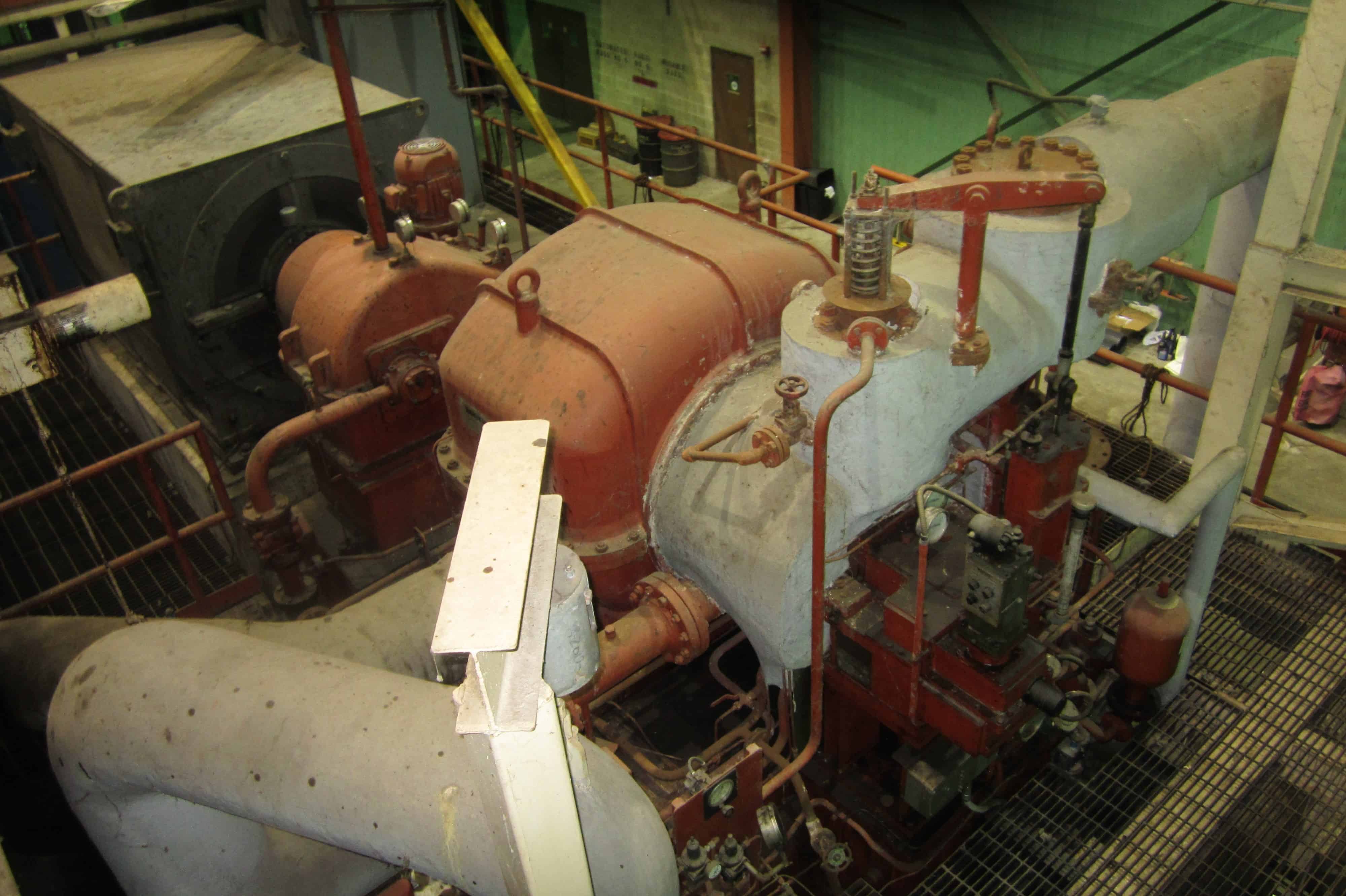

(1) Peter Brotherhood STG
(2) Waste Heat Recovery Boilers

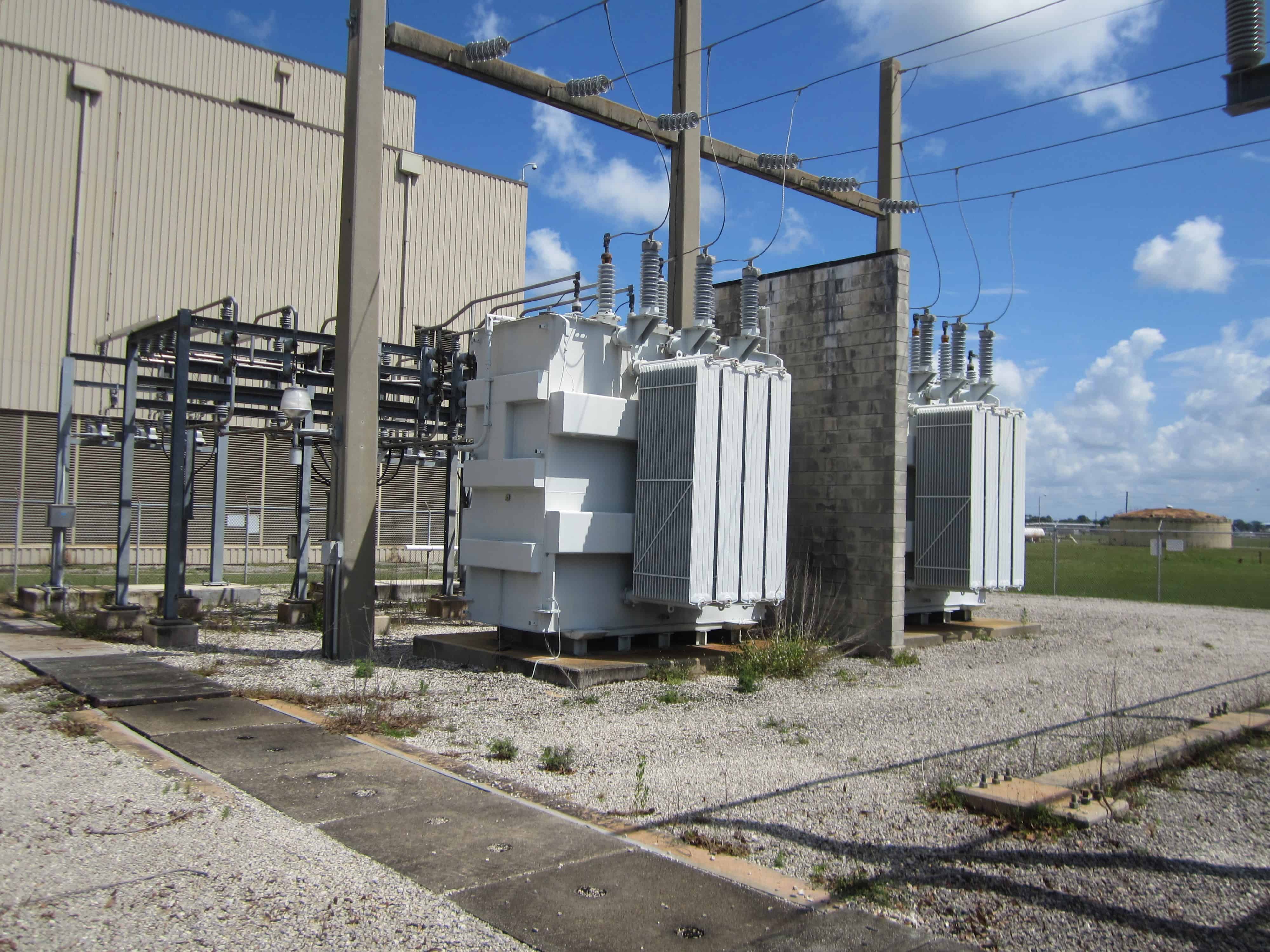

(2) 25 McGraw Edison MVA Transformers
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
1983
Year Shut
2011
Capacity
40 MW
