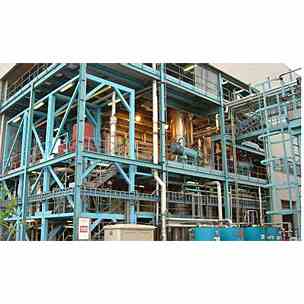

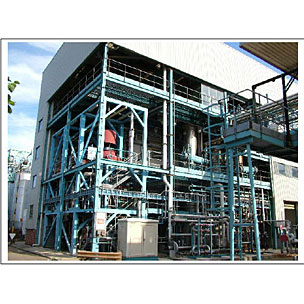

Phosegenation Plant - 200 Kg/Hr
Other Views - click image for larger view
Phosegenation Plant - 200 Kg/Hr
Stock # 149
Capacity 200 Kg/Hr
Products Not Listed
Sold

Overview

Phoenix Equipment Corporation has this used Phosegenation plant immediately available. Capacity is rated for 20 - 200 Kg/hr. Chlorine and Carbon Monoxide are reacted in a fixed tubular reactor filled with catalyst and heated by oil. Quality is controlled by online analysis of the product for residual Chlorine and Carbon Monoxide. The Phosgene gas is cooled prior to transfer direct to the Phosgenation plant without need for purification of storage.

Major Equipment

3 Booker Wellman Vertical Mild Steel Lagged Scrubber Columns, Approx. 15CuM each, Corracoat Lined, SerialNos. BW 9187/2, BW 1987/3, BW 1957/1, Year of Manufacture: 1990, Each with Booker Wellman Horizontal Mild Steel Lagged Header Tanks, Size. 7' x 12', Serial No. BW 1987V, Year of Manufacture: 1990, Plant Nos.PH33, PH34, PH35 And Booker Wellman Vertical Mild Steel Sump Tanks, Approx. 10,000L Capacity, Serial Nos. BW 1987T3, BW 1987T2, BW 1987 T1, Year of Manufacture: 1991, Plant Nos. PH30, PH31, PH32 3 Hickson & Welch Inclined Scrubber Coolers, Size. 2' x 9', Serial Nos. 91014801244, 91014801245, 91014801246, Plant Nos. PH36, PH37, PH38 All Associated Pumps, Fans, Controls and Ancillary Equipment 1 Bibby 250 Gallon Stainless Steel Receiver, Serial No. GM60-7113, Year of Manufacture: 1997, Plant No.PH113 1 Mild Steel Expansion Tank, Plant No. PH26 1 Mild Steel Expansion Tank, Capacity Approx. 400L, Plant No. PH27 1 Mild Steel Expansion Tank, Capacity Approx. 400L, Plant No. PH28 1 Condenser Relief Tank, Capacity Approx. 400L, Plant No. PH88 1 Longclose Stainless Steel Expansion Tank, Serial No. CJ20, Plant No. PH74 1 Process Plant Stainless Steel Filter, Design No. B3BS2, Order No. E34368, Year of Manufacture: 1991 1 Scrubber Fan, Plant No. P49 1 Bibby Stainless Steel Measure Pot, Capacity 300 Gallon Vessel No. GP40, Year of Manufacture: 1997, Plant No. PH110 1 Mild Steel Oil Expansion Tank, Capacity Approx. 400L, Plant No. PH8 1 Stainless Steel Phosgenator External Heat Exchanger, Maximum Working Pressure 6 Barg Shell Side, 4 Barg Tube Side, Maximum Working Temperature. 200�C, Plant No. PH9 1 Mild Steel Condenser, Capacity 1.2 CuM, Plant No. PH6 1 Mild Steel Condenser, Capacity 1.2 CuM, Plant No. PH7 1 Glass Lined Cut Tank, Plant No. PH63 1 Glass Lined Cut Tank, Plant No. PH62 1 Pfaudler Balfour Glass Lined, Normal Working Pressure. 141m Bar, Maximum Working Temperature. 15�C, Year of Manufacture: 1998, Plant No. PH64 1 Inlet Knock out Pot, ID No. 5395, Plant No. PH1, Year of Manufacture: 1998 1 Filter, Plant No. PH68 1 Dephosgenator Tertiary Condenser, Plant No. PH67 1 Desphosgenator Secondary Condenser, Plant No. PH66 1 Briggs Process Water Tank, Capacity 1,000 Gallons, Order No. 6512, Swivel Pressure. 45 psi, Year of Manufacture: 1983, Plant No. PH42 1 Glass Lined Mild Steel Reactor, (CRS Relined 1997), Job No. CP297, Normal Working Pressure. 6.8 Barg, Working Temperature. -29/+200C, Plant No. PH60 1 Mild Steel Phosgene Cooler, Capacity 0.87 CuM, Order No. C84106/250242, Plant No. E3119 1 Valve Tank, Plant No. V3150 1 Mild Steel Phosgene Generator, Plant No. R3105 1 Greminger No. 2 Thermal Expansion Tank, Capacity 0.16 CuM, Plant No. V3110 1 Greminger No. 1 Thermal Oil Tank, Capacity 0.5 CuM, Plant No. V3103 1 Thermal Heater, Plant No. E313 1 Alfa Laval TM10-10 BDFG Heat Exchanger, Serial No. 30102-23365, Year of Manufacture: 1998, Plant No. PH17 1 Secondary Coolant Exchanger, Plant No. PPN PH19 1 Steam Heat Exchanger, Plant No. PH115 1 Water Heat Exchanger 1 Brine Heat Exchanger 1 Greminger Lagged and Heated Mild Steel Chlorine Buffer Tank, Capacity 0.9 CuM, Plant No. T3114 1 Thermal Oil Coller, Plant No. E31013 1 Pfaudler Balfour Glass Lined Jacketed Reactor, Capacity, 12,000L, Job No. 68017, Year of Manufacture: 1990 (re-lined 1997) Normal Working Pressure. -0.03, Plant No. PH5 1 Pfaudler Balfour Glass Lined Cut Tank, Capacity 4.5 CuM, Job No. 620179, Year of Manufacture: 1998, Plant No. PH61 1 Stainless Steel Scrubber Tank and Dump 1 Stainless Steel Butyl Isocyanate Feed Tank, Plant No. PH12 1 Mild Steel Butyl Isocynate Catch Tank, Plant No. PH11 1 Stainless Steel Phosgene/Xylene Cut Tank On Load Cells, Plant No. PH21 1 Stainless Steel Horizontal Relief Dump Tank 1 Mild Steel Butyl Isocyanate Tank Capacity 0.9 CuM, Plant No. PH10 1 Hobal Stainless Steel Thermal Oil Holding Tank, Serial No. 1064II, Year of Manufacture: 1961, Plant No. PH14 1 Mild Steel Air Receiver, Plant No. PH45 1 Lagged Condensate Tank, Capacity 1.8 CuM, Plant No. PH40
Share
SPECIFICATIONS RESOURCES
Year Built
1991
Year Shut
2005
Capacity
200 Kg/Hr
