SYNGAS (HyCO) PLANT - 18,500 Nm3/hr (653,000 SCFH)
Other Views - click image for larger view
SYNGAS (HyCO) PLANT - 18,500 Nm3/hr (653,000 SCFH) SYNGAS (HyCO) PLANT - 18,500 Nm3/hr (653,000 SCFH) SYNGAS (HyCO) PLANT - 18,500 Nm3/hr (653,000 SCFH) SYNGAS (HyCO) PLANT - 18,500 Nm3/hr (653,000 SCFH) SYNGAS (HyCO) PLANT - 18,500 Nm3/hr (653,000 SCFH) SYNGAS (HyCO) PLANT - 18,500 Nm3/hr (653,000 SCFH) SYNGAS (HyCO) PLANT - 18,500 Nm3/hr (653,000 SCFH) SYNGAS (HyCO) PLANT - 18,500 Nm3/hr (653,000 SCFH) SYNGAS (HyCO) PLANT - 18,500 Nm3/hr (653,000 SCFH) SYNGAS (HyCO) PLANT - 18,500 Nm3/hr (653,000 SCFH) SYNGAS (HyCO) PLANT - 18,500 Nm3/hr (653,000 SCFH) SYNGAS (HyCO) PLANT - 18,500 Nm3/hr (653,000 SCFH) SYNGAS (HyCO) PLANT - 18,500 Nm3/hr (653,000 SCFH) SYNGAS (HyCO) PLANT - 18,500 Nm3/hr (653,000 SCFH)
Stock # 457
Capacity 18,500 Nm3/hr (653,000 SCFH)
Products Syngas, hydrogen, carbon monoxide
Sold

Overview

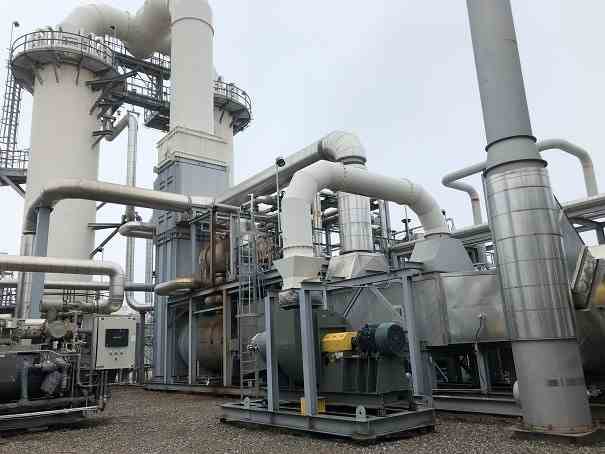

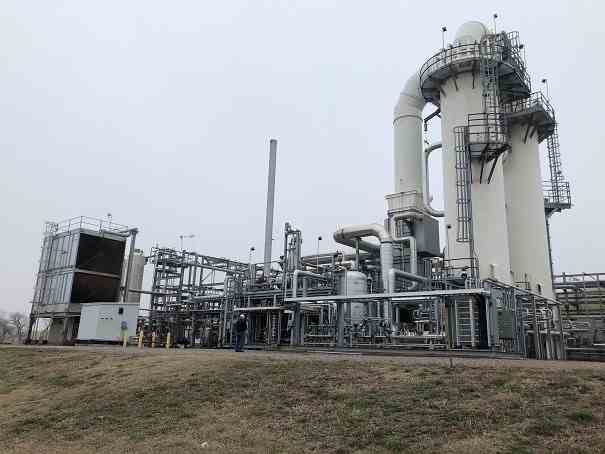

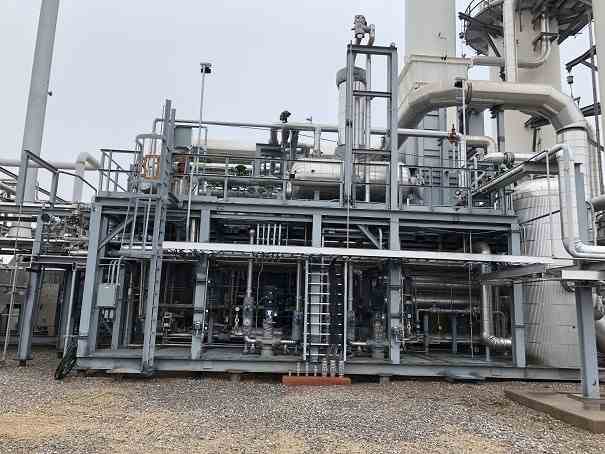

Used 18,500 Nm3/hr (653,000 SCFH) Hydro-Chem (Now Linde) designed Syngas Reforming (Hydrogen and Carbon Monoxide) Plant built in 2016, skid mounted. Almost like new, immediately available for purchase. Operated for only a few months. This plant was designed to use landfill gas and/or natural gas to produce synthesis gas, which is then converted into paraffinic naphtha, diesel and wax by Fischer-Tropsch process. The syngas output flow rate is at 500 °F and 175 psig. The syngas has the following composition (mol %): Hydrogen 43.01, Carbon Monoxide 16.37, Carbon Dioxide 8.34, Nitrogen 3.90, Methane 1.42, Argon 0.16, Water 26.79. Capacity may be varied from the control panel from 100% of design to 40% of design. The syngas can also be further processed depending on the desired final products such as ammonia and methanol. Plant is currently dismantled and stored. Immediately available for shipment.

Major Equipment

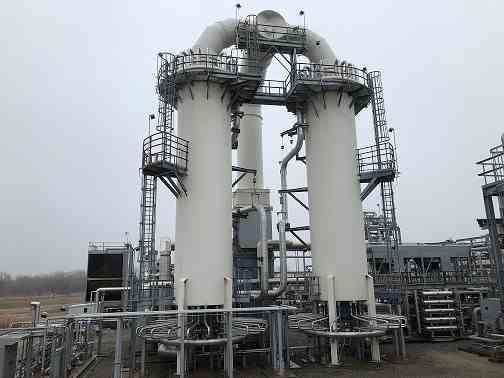

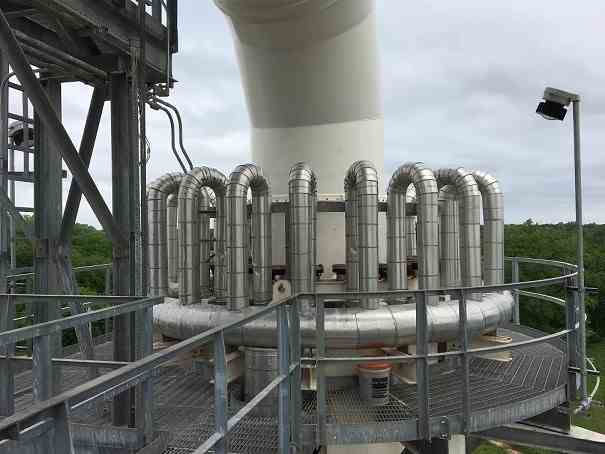

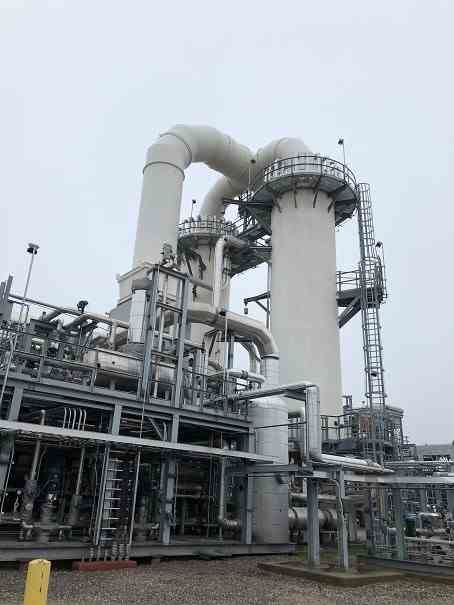

Reformers #1 & #2

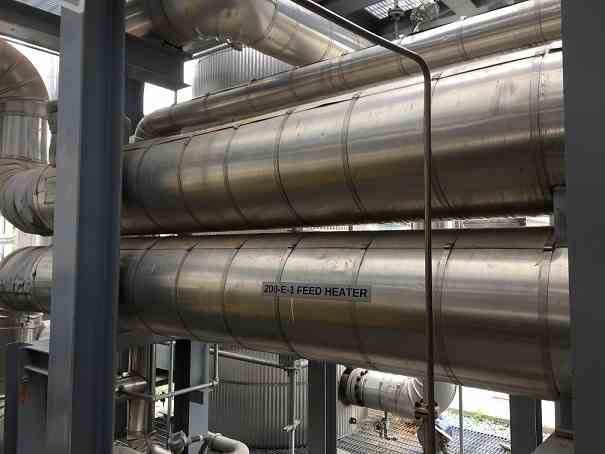

Feed Heater
Feed Superheater
Hydrodesulfurizer
Flue Gas Steam Generator

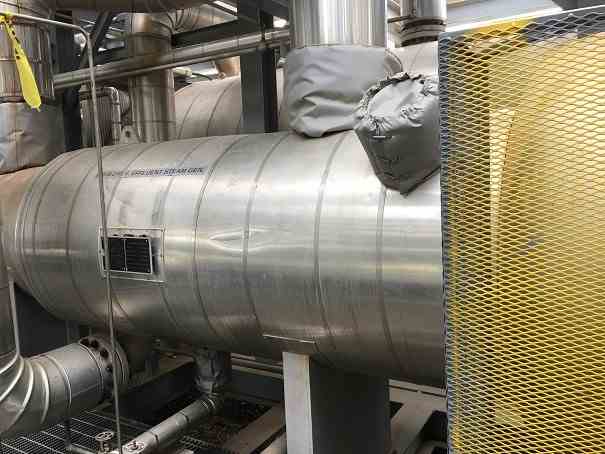

Reformer Effluent Steam Generator
Dirty Steam Drum

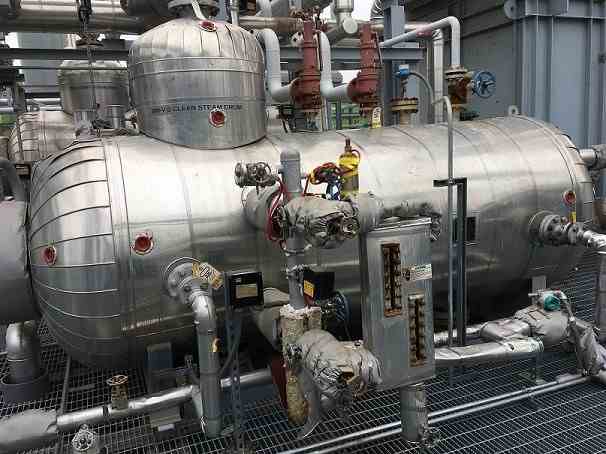

Clean Steam Drum
Combustion Air Preheater
Dearator
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
2016
Year Shut
2018
Capacity
18,500 Nm3/hr (653,000 SCFH)
