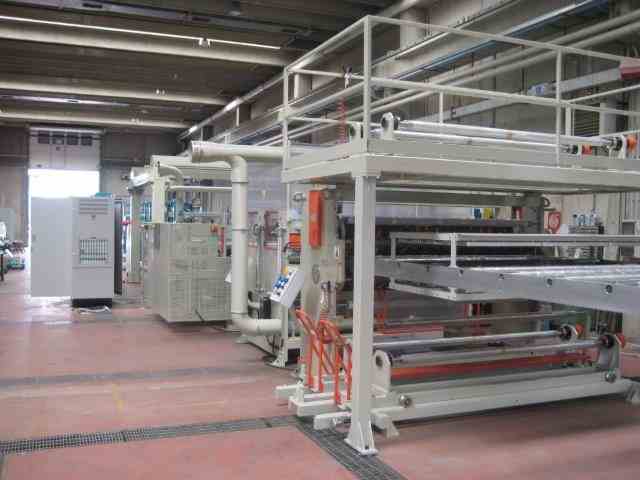

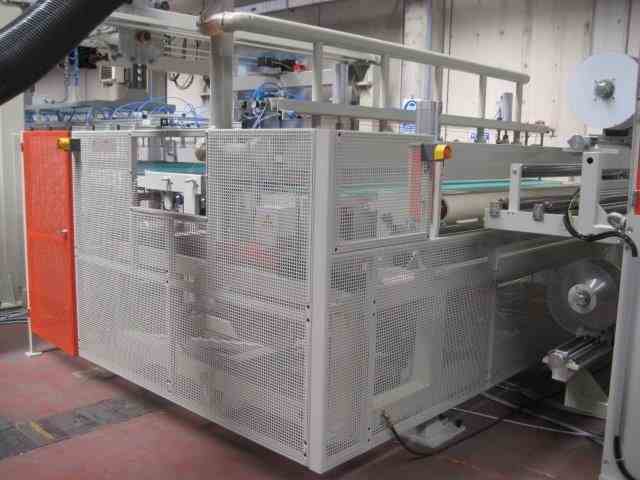

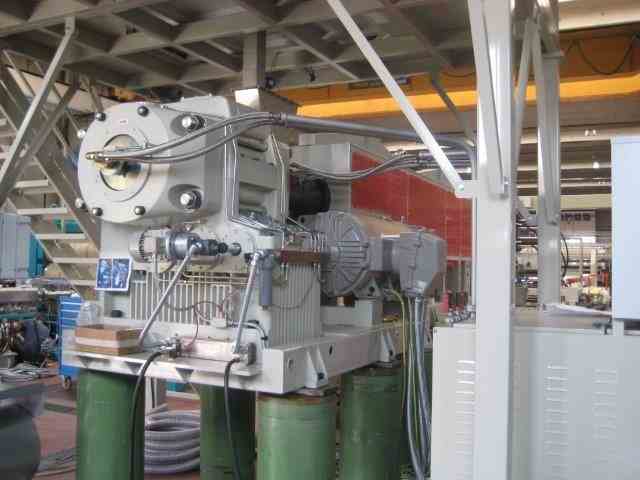

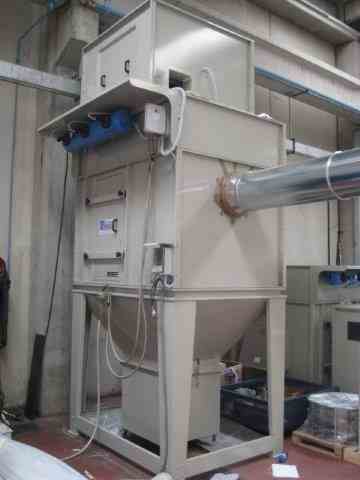

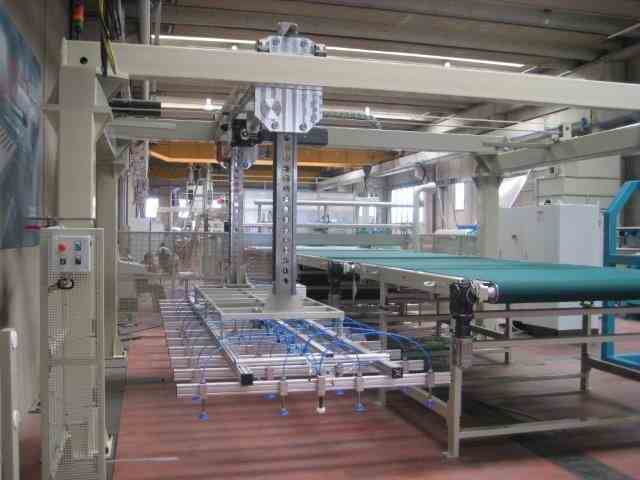

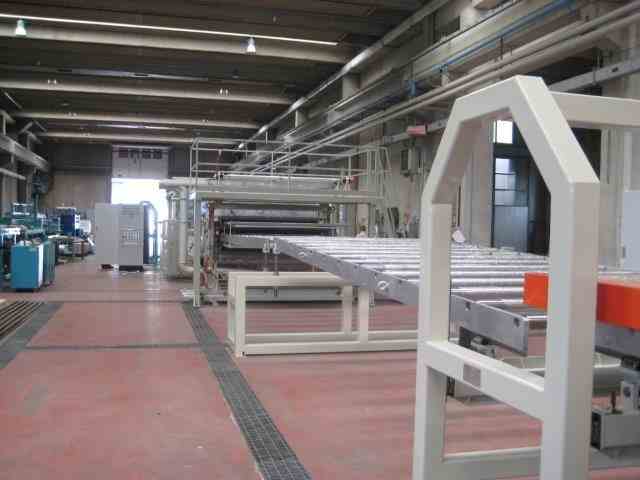

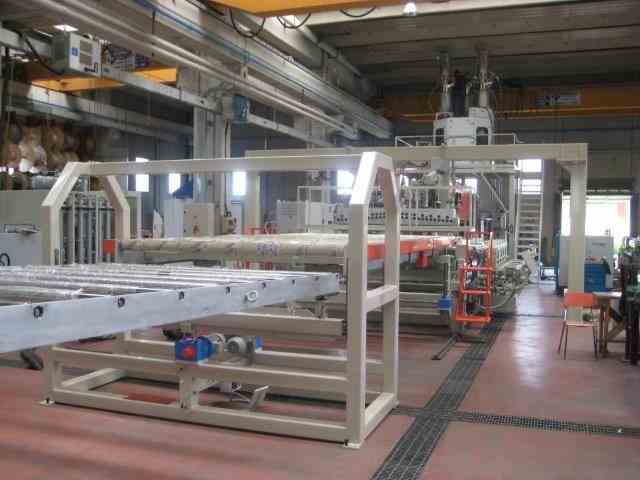

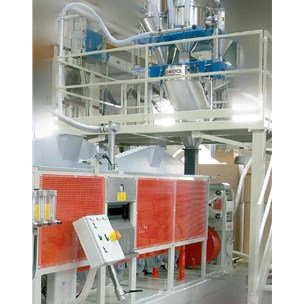

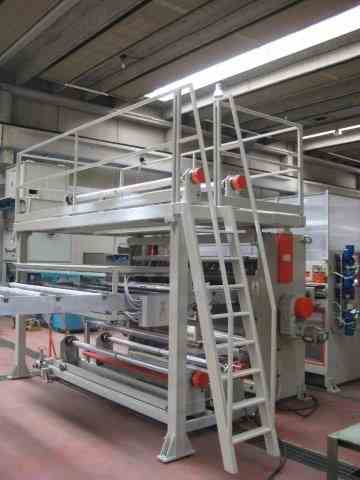

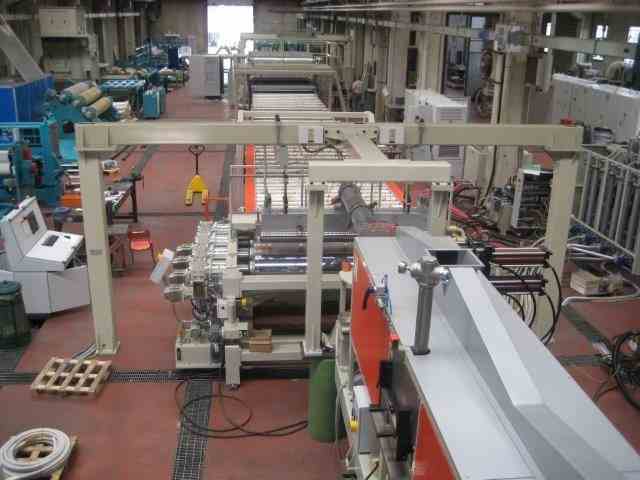

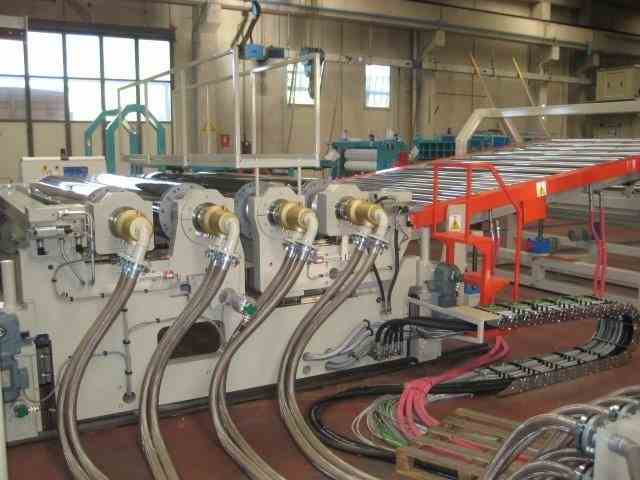

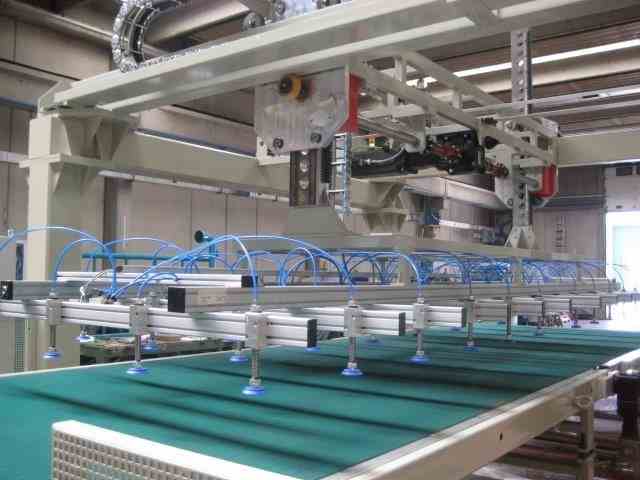

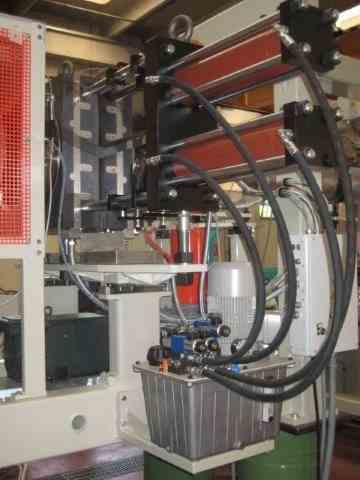

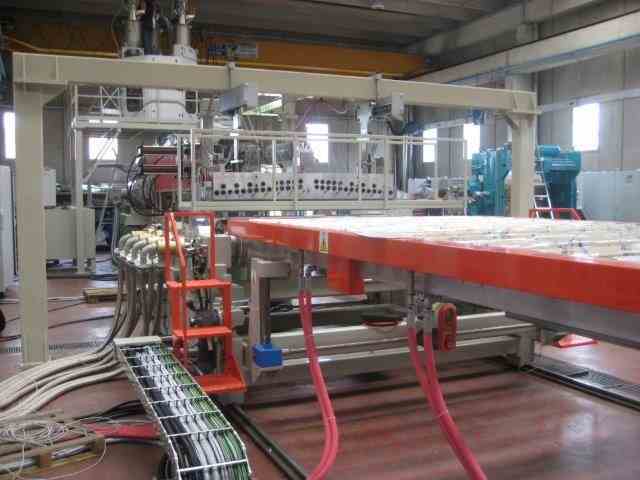

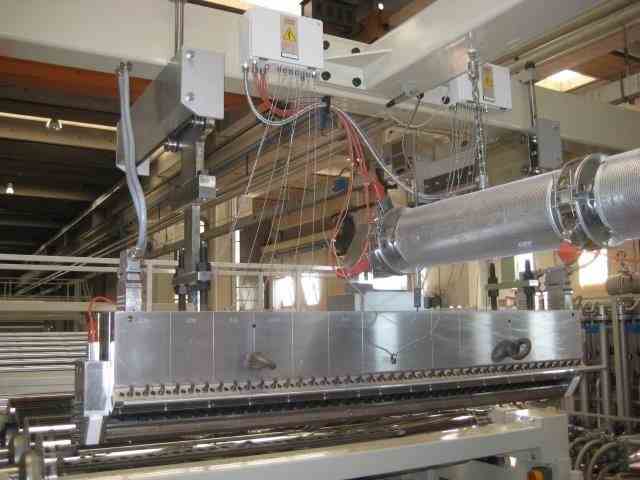

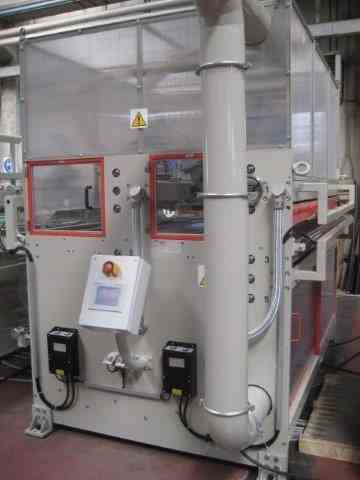

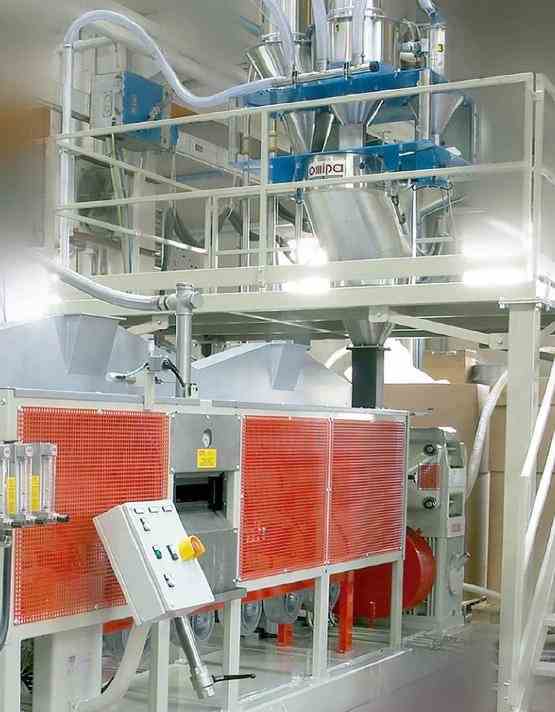

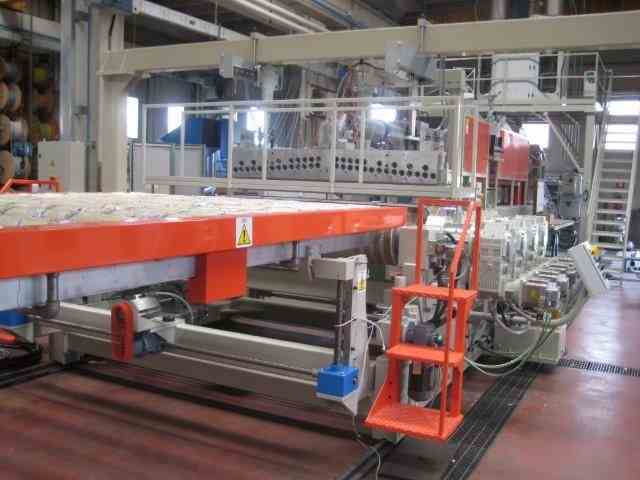

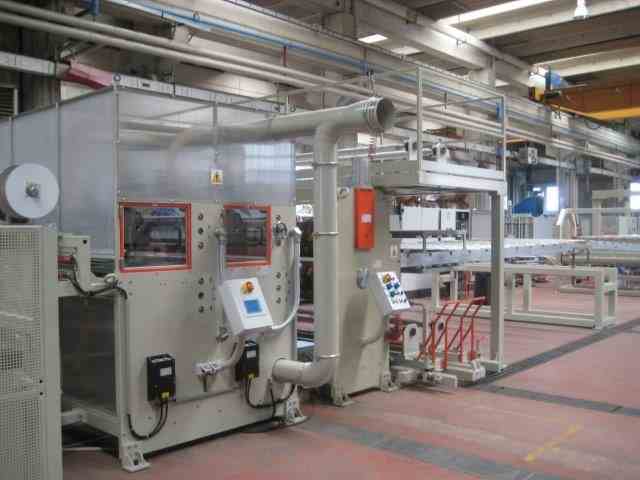

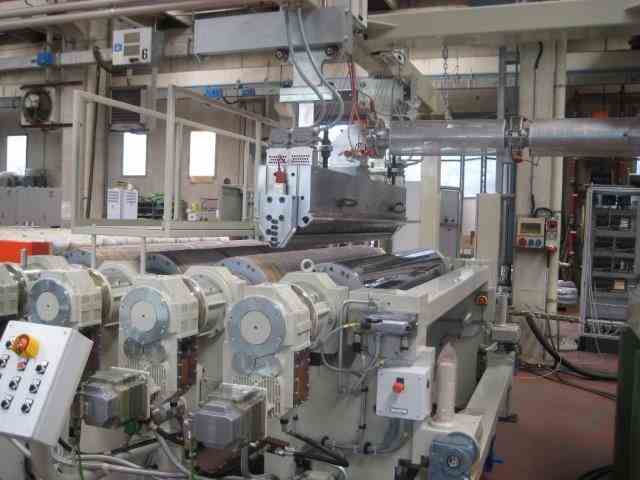

This PMMA (ACRYLIC) extrusion line for sale and available at Phoenix Equipment has the following basic information:
Basic Information
•Useful Width: 2050 mm
•Thickness: 2 – 12 mm
•Production/hour: 750 – 850 Kg/Hr
•Power Supply: 3 x 480 V, 60 Hz
•Control Side: Left hand side in extrusion
•Total Installed Power: 1025 KW
•Installed Motive Power: 555 KW
•Installed Heating Power: 470 KW
•Contemporaneity Factor: 0.6
•Average Used Power: 615 KW
•Max. Water Consumption: 26.6 m3/hour
•Max. Air Consumption: 8.8 Nm3/hour
•Machine Color: RAL 7032

Product Performance
•Width Accuracy: less than or equal to 0.5 mm
•Length Accuracy: within 2.0 mm (roughly 1.0 mm)
•Shrinkage: extrusion direction roughly 5%
•Cross direction: 0 roughly 0.5%
•Thickness tolerances:
2.0 – 2.9 mm, roughly 2.0%
3.0 – 6.0 mm, roughly 1.5%
6.0 – 12.0 mm, roughly 1%

PMMA can be general purpose grade and optical grade and is the synthetic polymer of mma, produced by emulsion polymerization, solution polymerization, suspension polymerization, and bulk polymerization.
