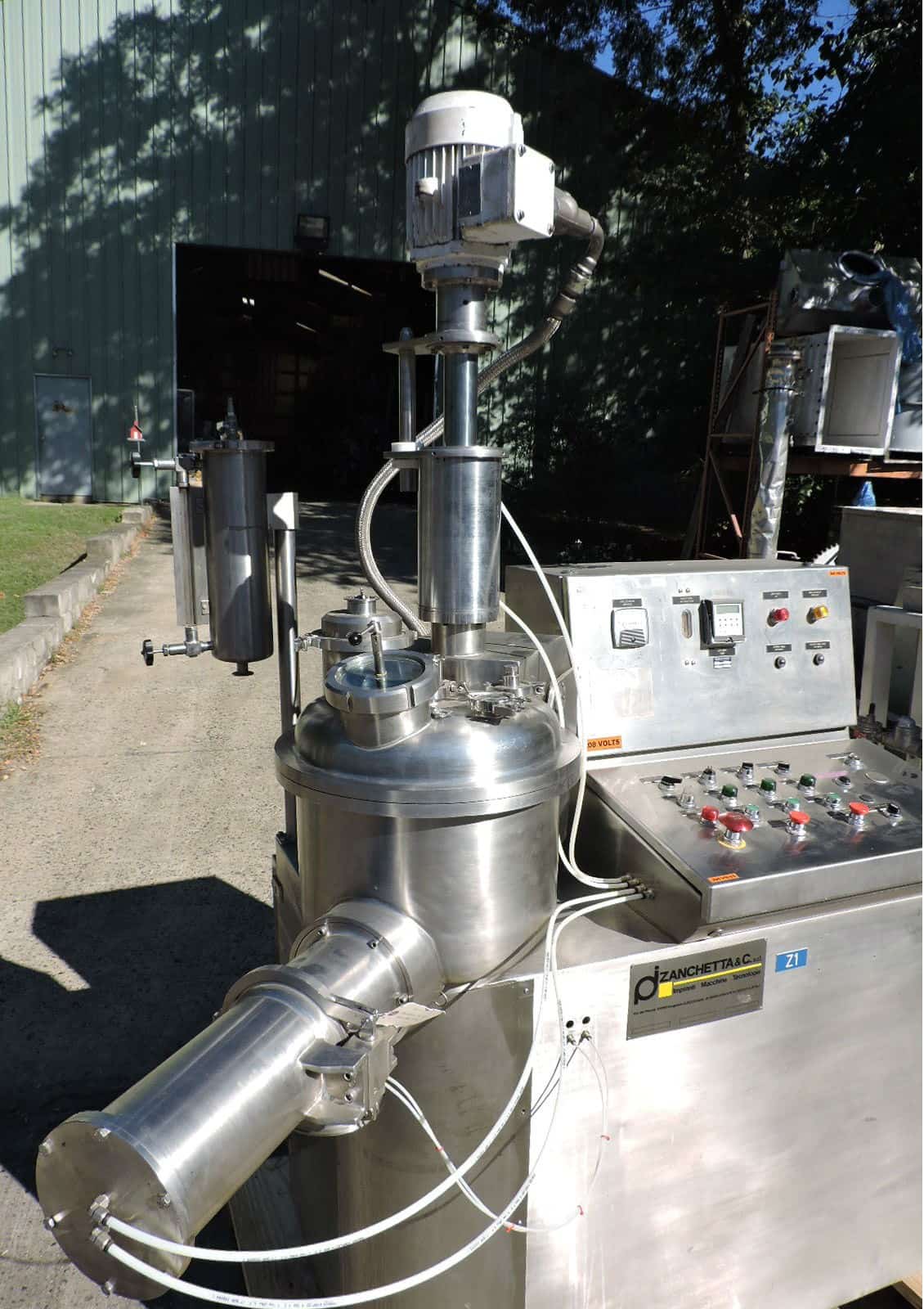

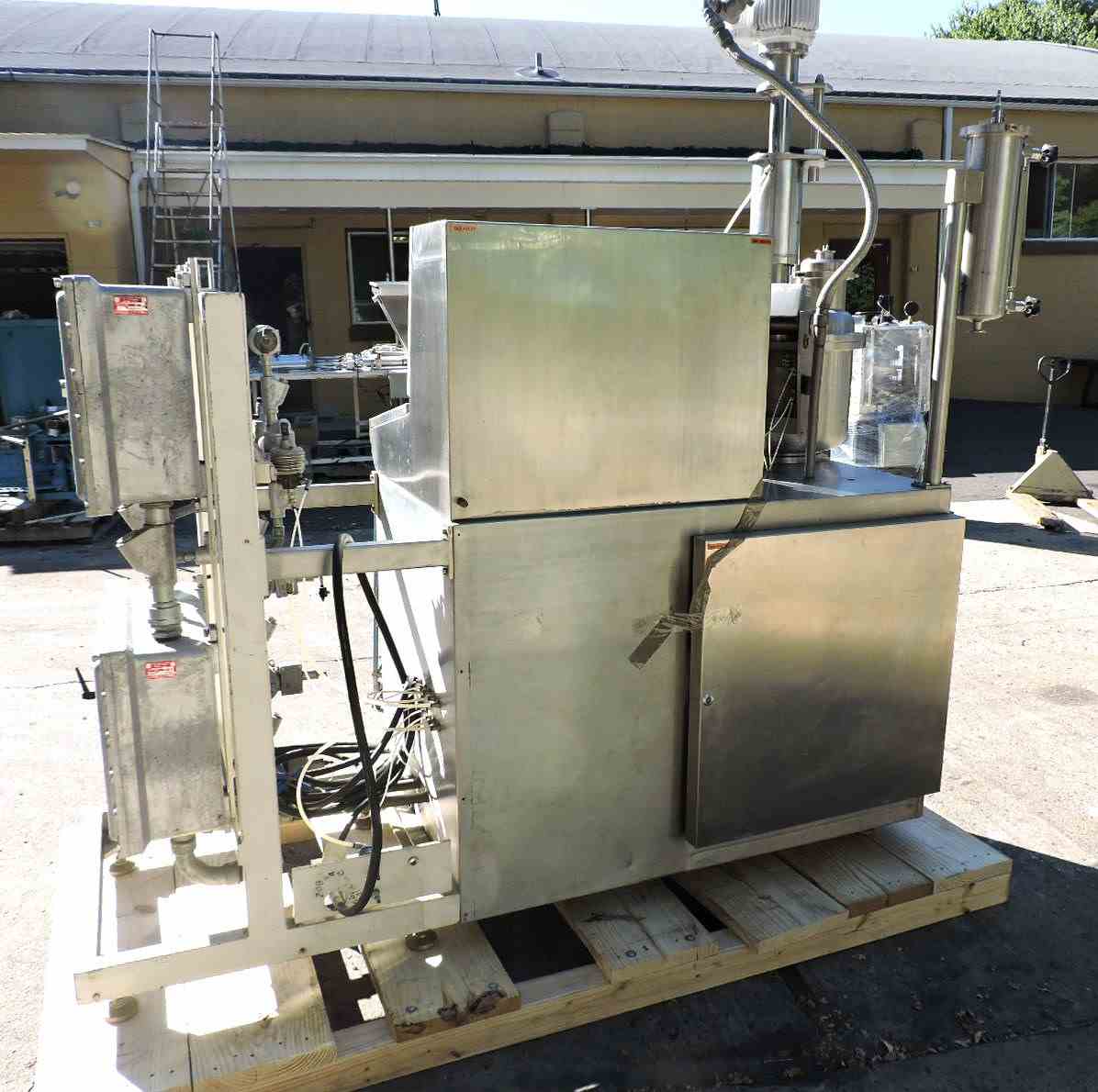

Zanchetta Roto G 50 30 Liters High Shear Granulator
Other Views - click image for larger view
Zanchetta Roto G 50 30 Liters High Shear Granulator Zanchetta Roto G 50 30 Liters High Shear Granulator Zanchetta Roto G 50 30 Liters High Shear Granulator Zanchetta Roto G 50 30 Liters High Shear Granulator Zanchetta Roto G 50 30 Liters High Shear Granulator Zanchetta Roto G 50 30 Liters High Shear Granulator

zanchetta roto g 50 30 liters high shear granulator

Stock # 13109
Capacity 30 Liters

Overview

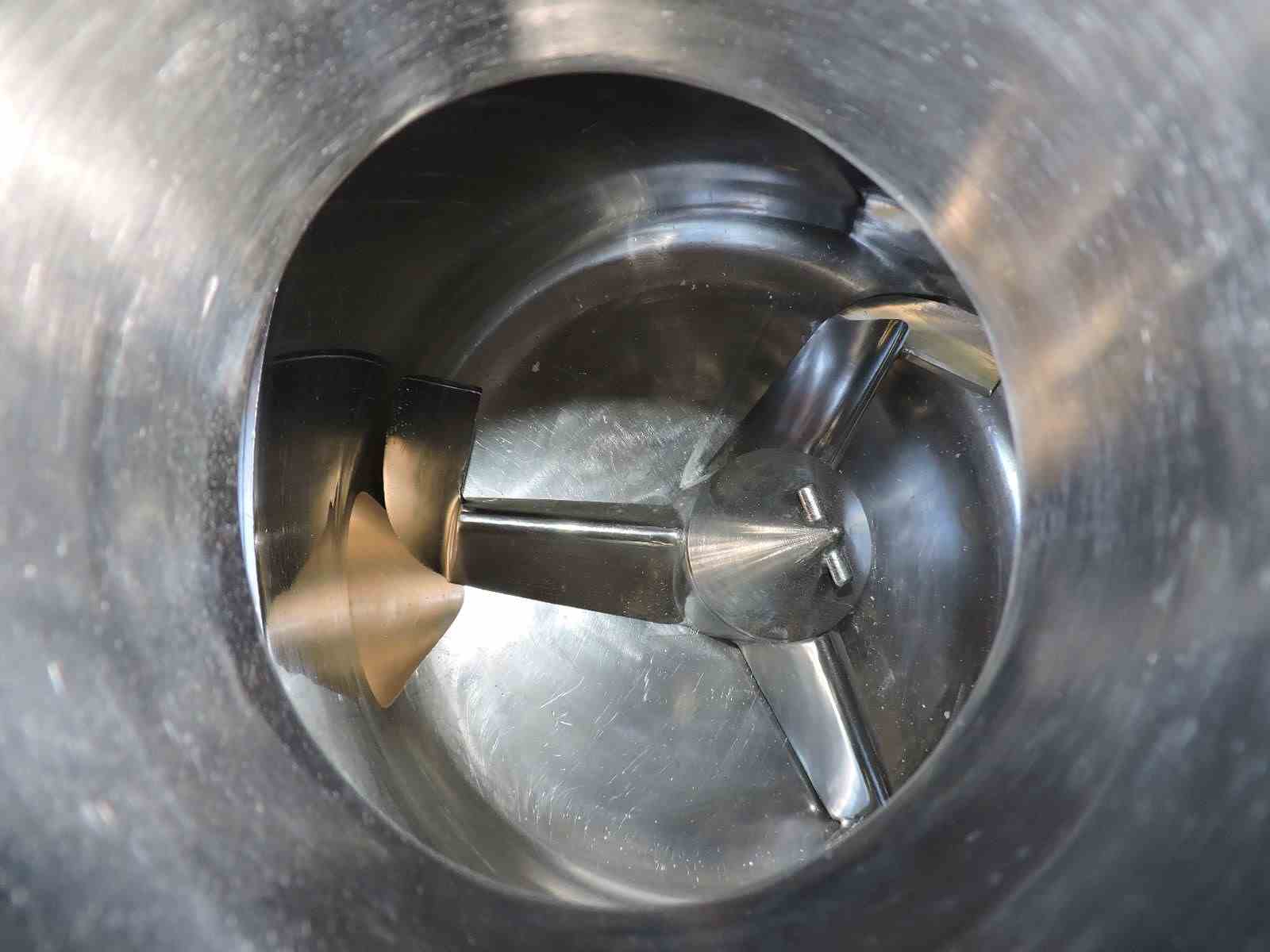

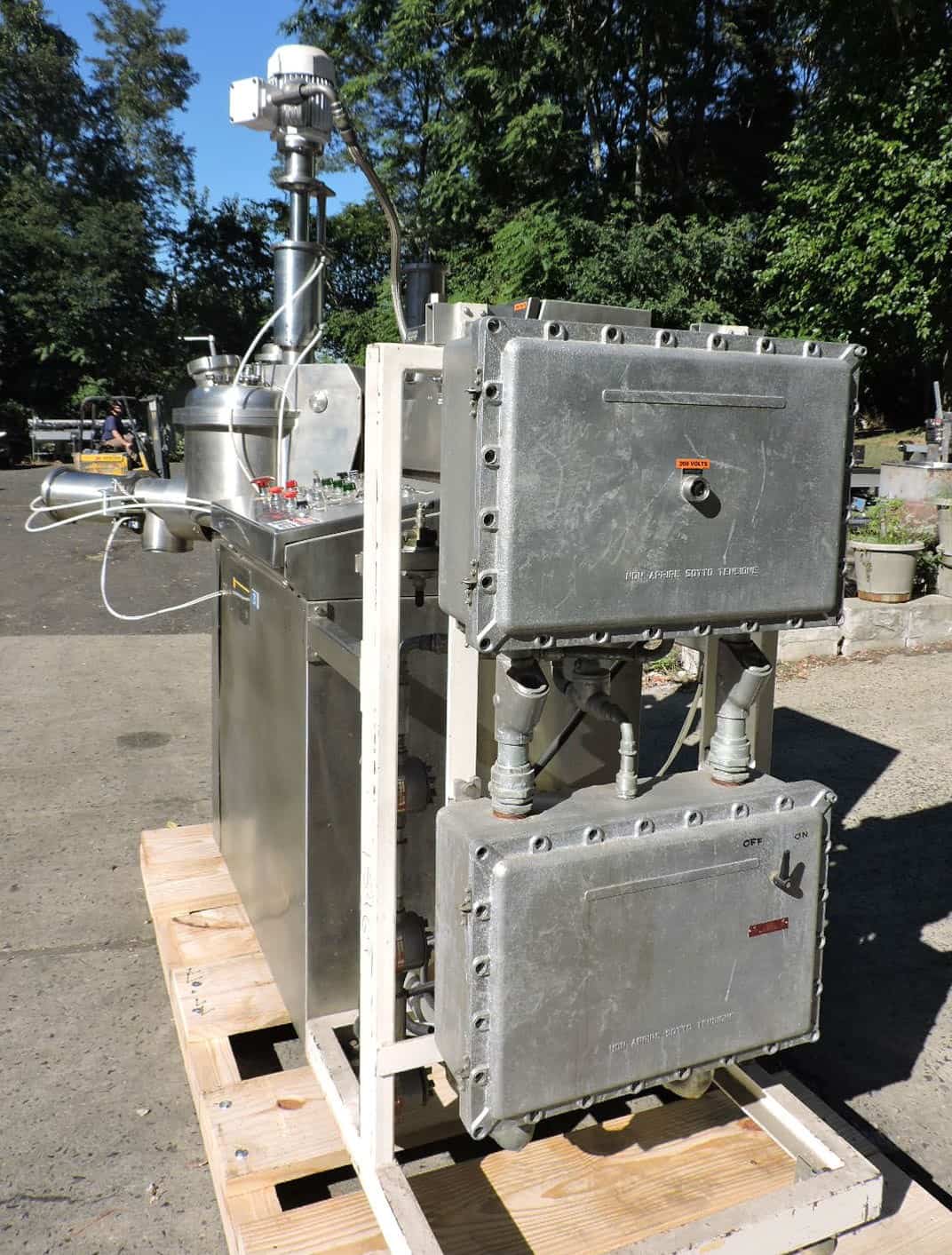

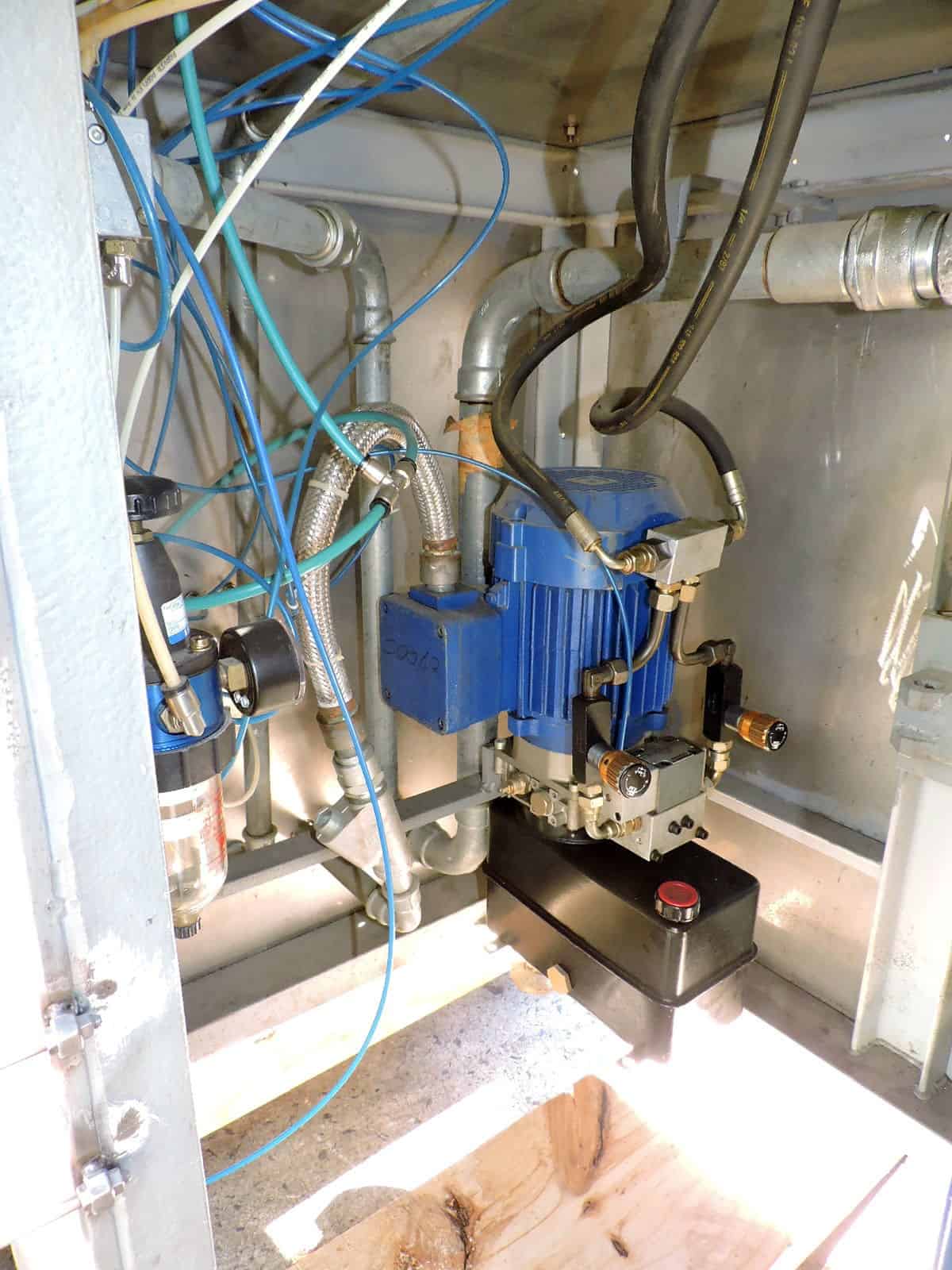

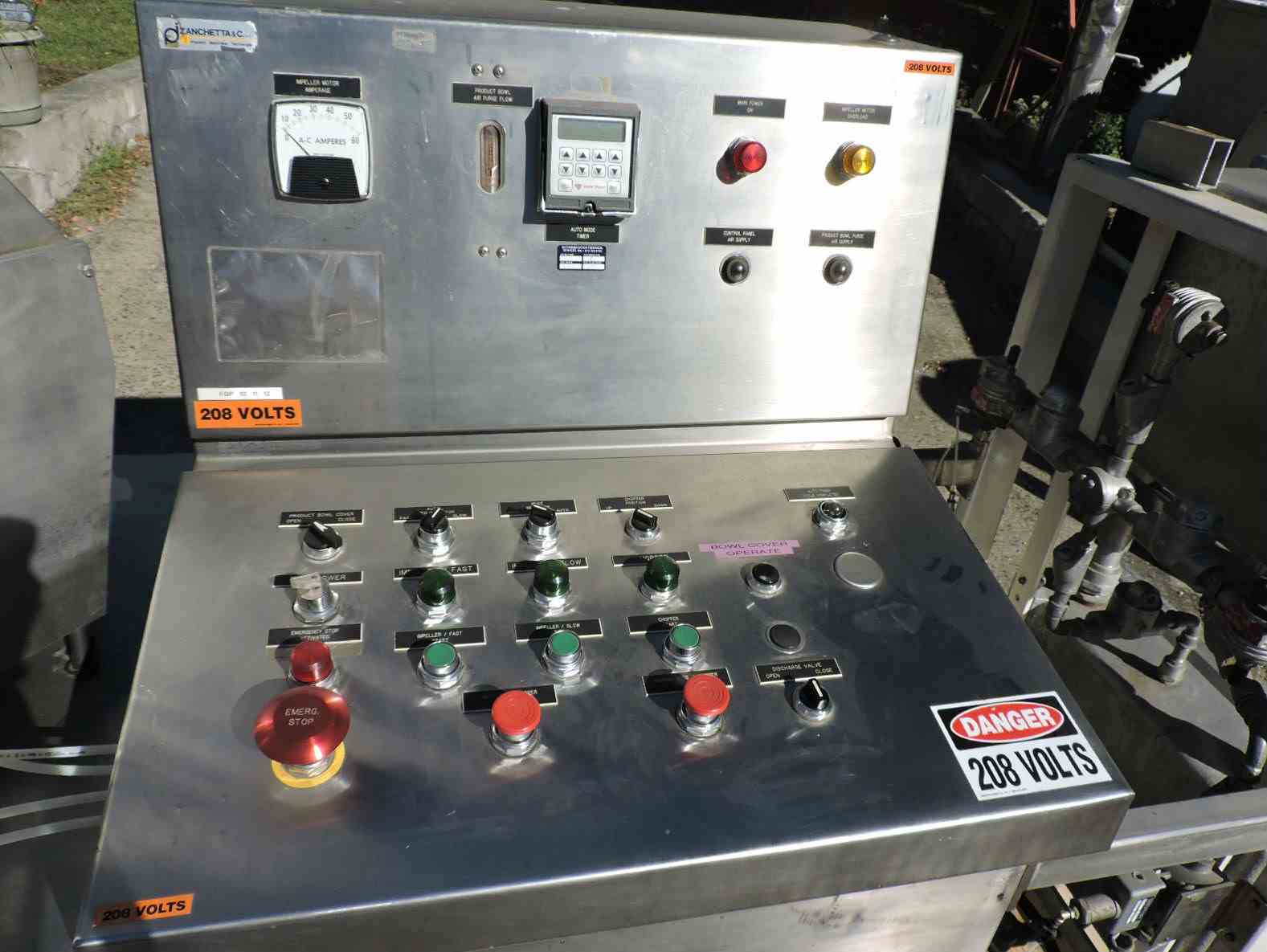

Used High shear mixer by Zanchetta, Model Roto G 50, serial # 43/G/50/88. Features all stainless steel cabinet enclosure with polished pharmaceutical grade finish over painted heavy duty sub frame, 11 kw motor at 1760 rpm belt driving impeller at high and low speed functions and mounted on swing out frame for service access, hydraulically operated tilting cover operated from on board hydraulic unit, vent port with dust sock, air operated plug style discharge valve on hinged swing away mount for cleaning, three top 1. 5" inlets with tri clamp connections, explosion proof electrical enclosures, rear hinged service door, chopper agitator mounted through cover with air operated lift with up/down controls, wired for 208 volt/3 phase service, factory control panel/operator station including eagle signal control for timed automatic operation.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Zanchetta
Model
Roto G 50
Material
SS
Capacity
30 Liters
