Hockmeyer Triple Shaft Vacuum Mixer/Disperser
Other Views - click image for larger view
Hockmeyer Triple Shaft Vacuum Mixer/Disperser Hockmeyer Triple Shaft Vacuum Mixer/Disperser Hockmeyer Triple Shaft Vacuum Mixer/Disperser Hockmeyer Triple Shaft Vacuum Mixer/Disperser Hockmeyer Triple Shaft Vacuum Mixer/Disperser Hockmeyer Triple Shaft Vacuum Mixer/Disperser Hockmeyer Triple Shaft Vacuum Mixer/Disperser

hockmeyer triple shaft vacuum mixer/disperser

Stock # 9554
Capacity 60 HP

Overview

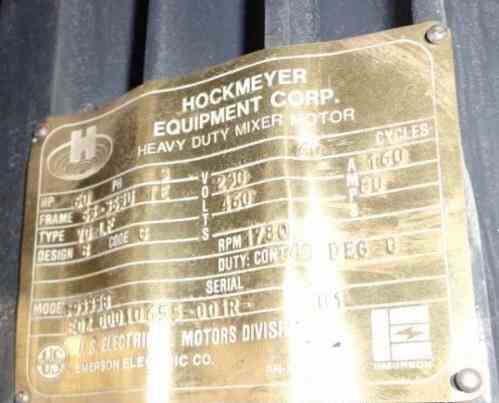

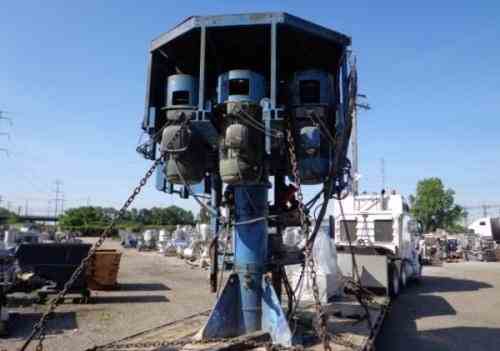

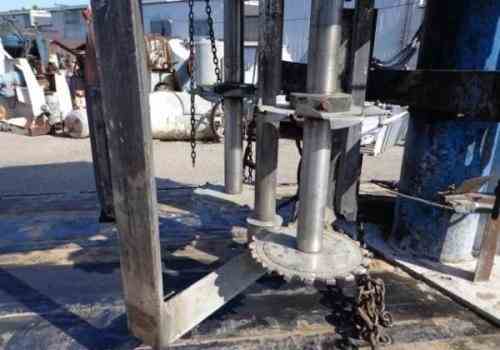

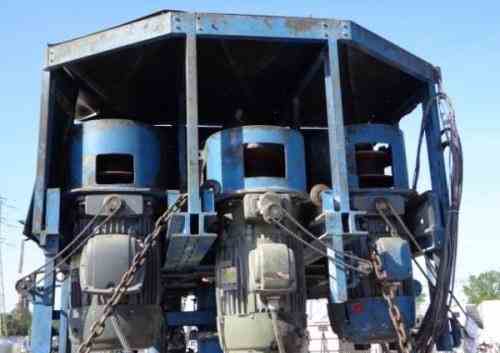

Hockmeyer Triple Shaft Vacuum Mixer. Mixer has (2) 60 HP dispersers, 230/460 volts, 3PH, 60HZ, 1800 RPM with two tier 16" diameter dispersion blades. (1) 30 HP anchor type agitator with side wall scrappers, 230/460 volts, 3PH, 60 HZ. Motors are explosion proof design and are mechanical variable speed. Mixer has an approximately 56" diameter vacuum cover, set up with a hydraulic lifting mechanism with a 7.5 HP hydraulic pump, approximate rise is 72".

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Hockmeyer
Model
60/60/30
Material
SS
Capacity
60 HP
