Used DCI Process Equipment

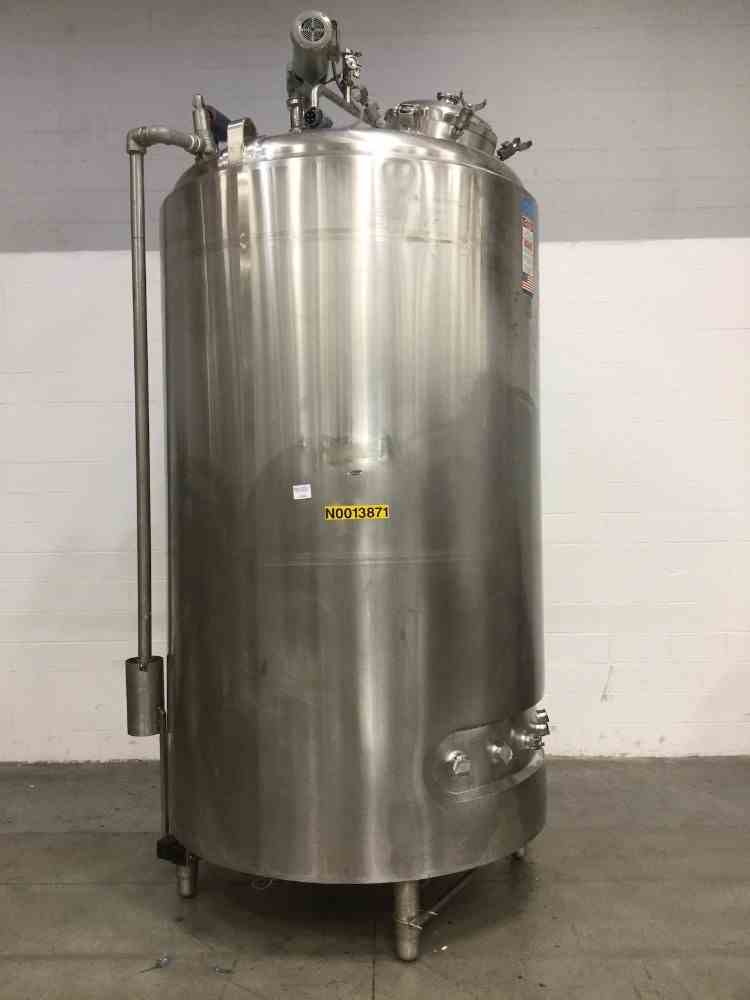

Used 5000L (1320 Gal) Stainless Steel Reactor. Mfg DCI. model 5000L. Vessel MAWP 50 PSI@300F. Jacket MAWP 22PSI. Top mounted agitator. (4) Leg mounted. National Board #4133. Built 1998.

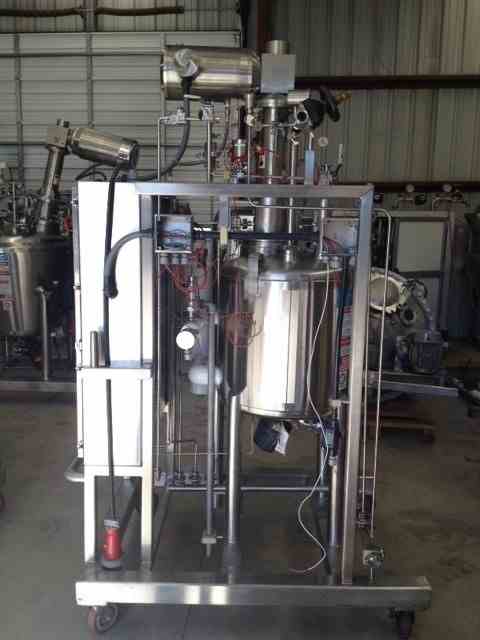

Used 100L (26 Gallon) 316L Stainless Steel Sanitary Reactor. Manufactured by DCI. Electro polished internal rated 125/-15 psi at -20 to 70 degrees F. 304 Stainless Steel dimple jacket rated 135/-15 psi at -20 to 358 degrees F. Insulated with 2" chloride free ceramic fiber and 304 stainless steel sheathing. Off center top entering Admix Rotosolver Mixer (Model 132RS101SS, serial# 18792-3). Driven by a 10 HP, 3/60/208-230/460 volt, 3450 rpm motor. Openings top 1-1/2" tri-clamp, (3) 3" tri-clamp, 4", 6" drive. 2" Tri-clamp center bottom outlet. 22" Dia. x 20-1/2" straight side, dished top and bottom. Mounted on (4) stainless steel legs on a stainless steel frame. Serial# JS2696. National Board# 5740. Built 2004.

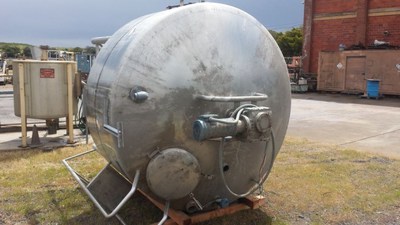

Used Stainless steel jacketed tank, 1,000 gallon capacity, manufactured by DCI, serial number 87-D-35635. Three zone dimple jacket covered by insulation. Tank measures 90" diameter X 40" straight side with cone bottom. Includes 20" top manway. Complete with heavy-duty scrape agitator driven by 2 HP, 230/460 V, 1750 rpm Baldor motor through SEW Eurodrive. 2" center bottom outlet with tri-clamp fitting. Mounted on four (4) stainless steel pipe legs. Includes side-mounted ladder. Previously used in an Research & Development facility. (NOTE: Jacket leaks)

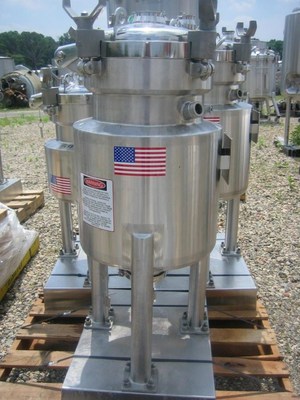

Used DCI approximately 50 liter (approx. 13 Gal) 316 Stainless Steel Pressure Tank rated 120 psi @ 350°F. 12" diameter X 21" straight side. With clamped top. Openings: 3", 2", and 1.5" top nozzles, (2) 1" threaded side.

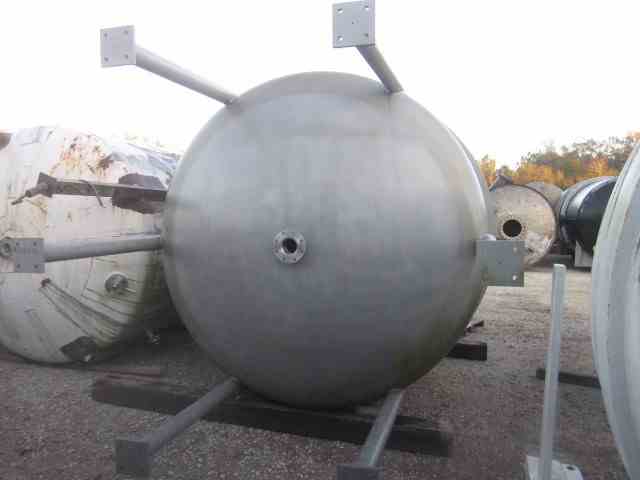

Unused 5000 Gallon 304 Stainless Steel Vertical Pressure Vessel. Manufactured by DCI. Rated 45PSI/FV@320F. Dished heads. (6) Leg mounted. 102"ID x 232" OAH. National Board stamped. Serial #MS0747. Built 2015.

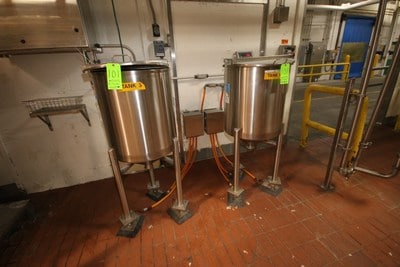

Used DCI 50 Gal. S/S Single Wall Tanks, Cone Bottoms, Mounted on S/S Frames & Load Cells. Built 2013.
