Used Lee Process Equipment

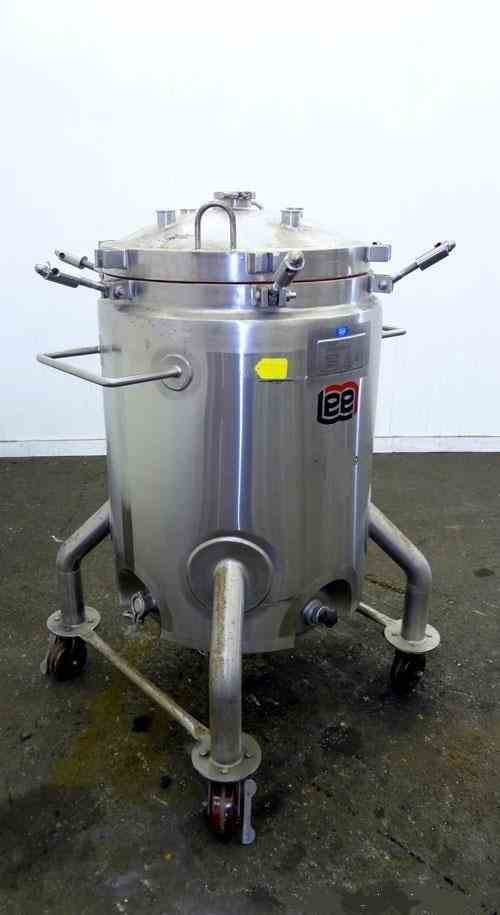

Used Lee Industries Reactor, 66 Gallon (250 Liter), Model 250LU, 316L Stainless Steel, Vertical. 24” Diameter x 35” straight side, dished bolt down top, dished bottom. Internal rated 50 psi at -20 to 350 degrees F. 304 Stainless steel coil jacket rated 100 psi at -20 to 350 degrees F. Openings top (4) 1-1/2”, 3”. 2” Center bottom outlet. Mounted on 4 stainless steel legs with casters. (Qty - 3 available)

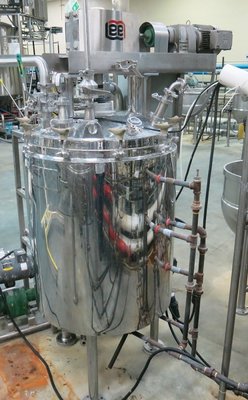

Used LEE 100 gallon Double Motion, Jacketed, Mix Kettle. Internal rated 30 PSI @ 250F. Jacket rated 100 PSI @ 338F. Double Motion Scraper agitation. NB # 11059. 316 Stainless Steel Mirror Polished. Last used in Sanitary application. Serial #48861-1. National Board # 11059.

Used 150 Gallon Reactor built by LEE. 316L Stainless steel. Rated 30/FV @ 338. internal. 304 Stainless Steel Jacket rated 100 PSI @ 338F. 3' dia. x 3' T/T. Sanitary Construction. Has Lightnin Explosion Proof Agitator model XJSS-30, with .3 HP, 1725 RPM, 200-240/400 volt XP drive . Approx. 7'5" OAH. Serial #B1789A3. National Board# 3748.

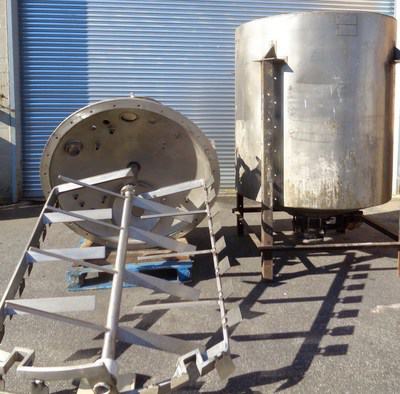

Used Lee 500 gallon Double Motion Counter-Rotating Extra Heavy Duty Scraper Agitator Jacketed Kettle, Model 500 U9 MS, S/N A-4761. Features standard Lee counter-rotating gear set which will be driven by a 10HP (3/60/220-440V) motor. The kettle is jacketed for 150 psi maximum. The Lee tag states the vessel is rated for 2,000,000 cps maximum. It is rated for internal vacuum/pressure. Center bottom outlet.

Used Lee 25 Gallon Jacketed S/S Kettle with D9MT Agitator. Double motion with counter rotation. 23" diameter x 20" deep, open top, hemispherical bottom, 90PSI @ 330F. Motortronics K3-401 electronic speed controller. Sterling 1 HP, 220/440V-3ph varispeed drive.
