Used Vulcan Iron Works Process Equipment

Phoenix Equipment has a large inventory of used, unused, and reconditioned equipment from Vulcan Iron Works . Phoenix Equipment offers a wide selection of categories from Vulcan Iron Works . If you can't find the exact Vulcan Iron Works equipment you are looking for, contact us and we can help you find it.

Categories
Featured Equipment for Sale
1900-sq-ft-vulcan-iron-works-stainless-steel-shell-tube-heat-exchanger

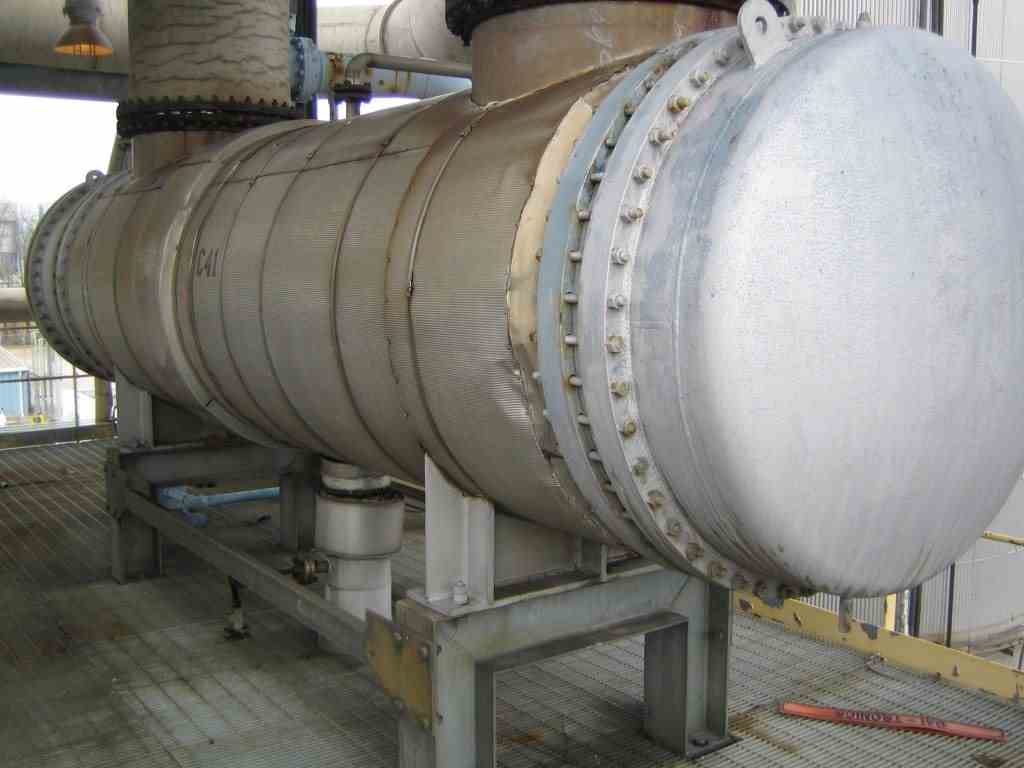

1900 Sq Ft Vulcan Iron Works Stainless Steel Shell & Tube Heat Exchanger
Stock# 4922 Capacity 1900 Sq Ft

Used horizontal 1900 Sq Ft Shell & Tube Heat Exchanger. 304-SS Shell rated 25 PSI/FV @ 304 deg F. 304-SS Tubes rated 125 @ 160 deg F. 48.5" Shell x 17' L. (667) 3/4" OD Tubes x 15' L. Nozzles: Shell - (2) 32", 6"; Tubes - (2) 10". Divided Flow Shell, 2 Pass Tubes. Built by Vulcan Mfg, 1980. ASME Coded. Weight: 19,000 lbs. Previous Use: Ammonia Column Condenser.

6200-gal-vulcan-iron-works-hastelloy-d-clad-reactor

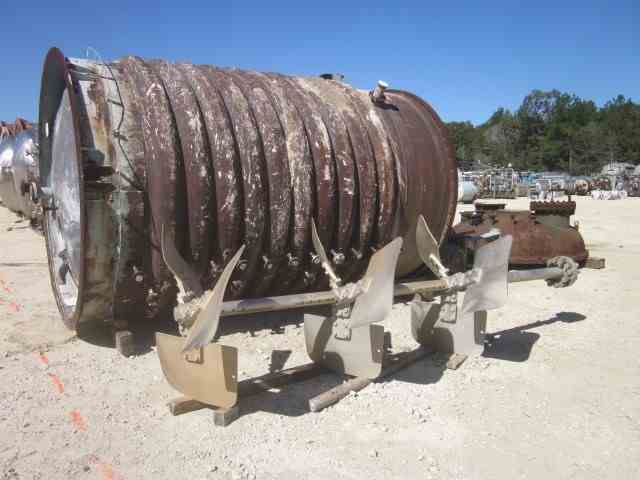

6200 Gal Vulcan Iron Works Hastelloy D Clad Reactor
Stock# 19934 Capacity 6200 Gal

Used 6200 gallon Hastelloy D clad Jacketed Reactor. Manufactured by Vulcan. Internal Rated 35PSI /FV @250F. Jacket rated 225PSI@ 450F. 50HP Lightnin agitator with (3) flights of A320 impellers. Dished top and bottom.(4) Baffles. Lug mounted. 8'9"Dia x 12'9"T/T. Serial #9838. National Board #1788. Built 1965.
